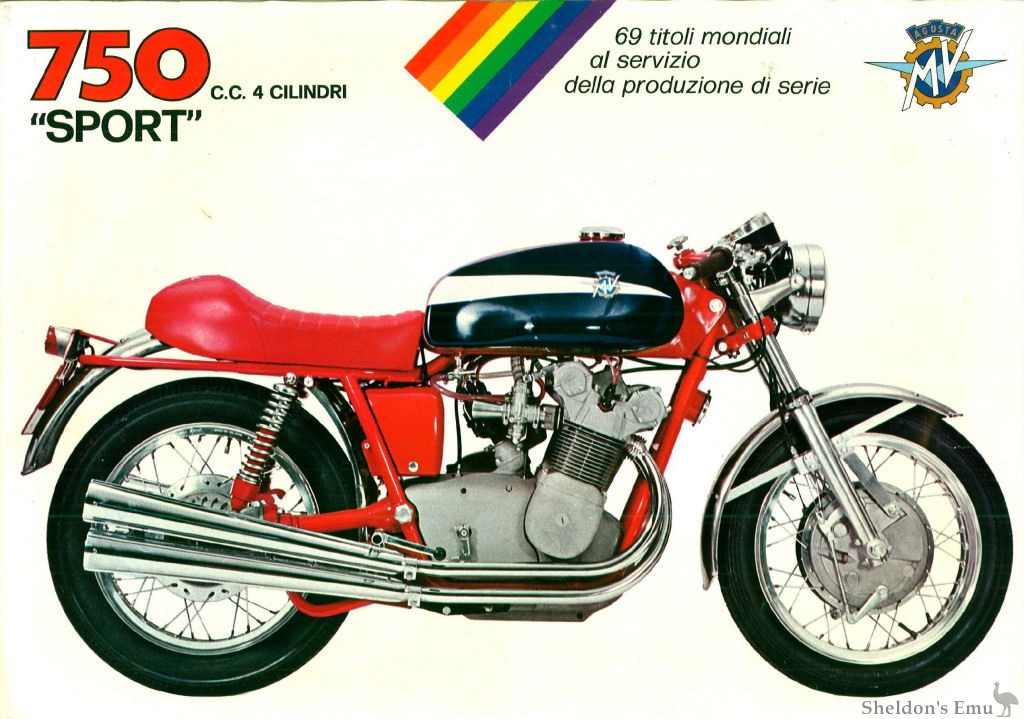

MV Agusta 750S Four


The best-known of all MV classic fours...

M.V. 750cc. FOUR CYLINDER TECHNICAL CHARACTERISTICS

ENGINE

Type: four stroke.

Number of cylinders: four light alloy cylinders and inserted cast iron cylinder barrels.

Disposition: in line, transversal with motorcycle axis.

Head: light alloy head.

Bore & stroke: 65x56x4
Displacement: 743cc.

Compression ratio: 1:9.5.

R.P.M. Peak rating: corresponding to 7,900 revolutions p. m.

Max. horsepower: 76 HP S.A.E.

Camshaft: by two overhead camshafts, operated
by gears.

Clutch: multiple disk in oil bath.

Primary drive: helical gears.

Secondary drive: By means of drive shaft and cardan
joint on rear hub.

Starting: electric starter.

Gearbox: five speed, foot operated lever.

Carburators: four Dell'Orto UB24B2 and UB24BS2.

Exhaust system: four exhaust pipes and four mufflers.

Generator: dynastarter 12V. 135W.

Ignition: by means of ignition coil.

Lubrication: forced.with gear pump mesh filter and
changeable filter element.

Oil tank: in crankcase containing 3 kg.

FRAME

Type: steel tubes double cradle.

Front fork: telescopic hydraulic.

Rear suspension: swinging arm and spring loading adjusting shock absorbers.

Front tyre: 3.50x18.

Rear tyre: 4.00x18.

Front brake: double drum and double cam (4LS).

Rear brake: central drum.

Stop switch: on rear brake.

Lighting system: 12V, 32 Ah. battery.

Parking: central and side stand.

WEIGHTS, DIMENSIONS, PERFORMANCE

Weight of dry motorcycle: 230 kg.

Wheelbase: 1.390 mm.

Overall length: 2.110 mm.

Petrol tank: capacity 24 litres, 4 litres reserve included.
Consumption: 7.8 litre per 100 km. (C.U.N.A.)

Max. speed: 225 km. p. hour.

Acceleration: 1/4 mile 14". Standing start.
