German Motorcycles

NSU 201 OSL, 251 OSL, 350 OT

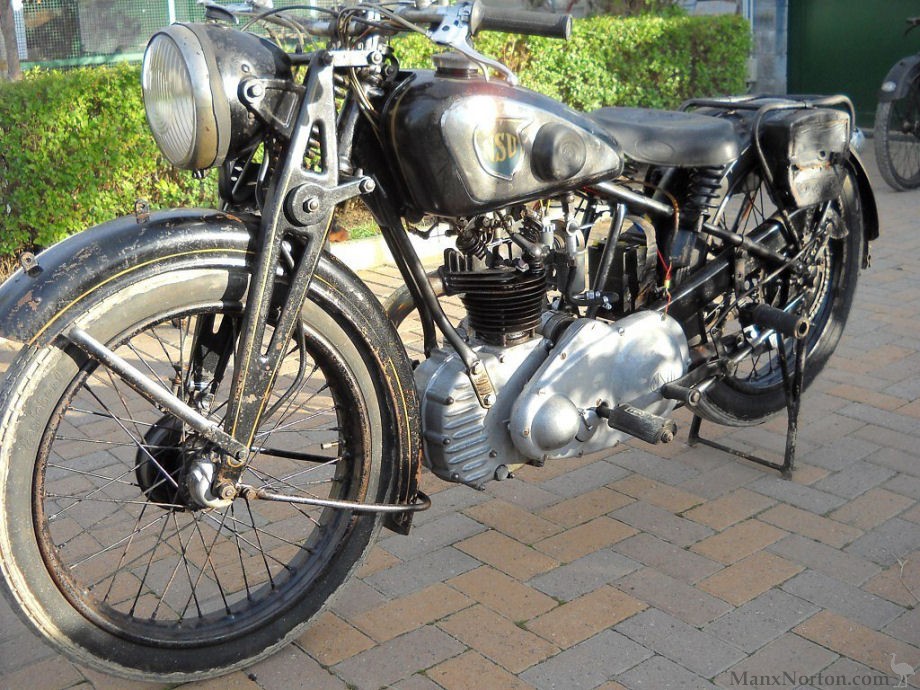

NSU 201 OSL


Production: 1933-1939
Units built: 18111
Engine: 1 cylinder four-stroke, dry sump oil circulation
HP: 1933-1935:8.0 (4100 rpm) 1936-1939:8.5 (5000 rpm)
Engine displacement: 198 cc
Cylinder diameter: 58 mm
Piston stroke: 75 mm
Compression ratio: 7.0:1
Valvetrain: OHV; two pushrods in one tube: only looks like a vertical bevel drive shaft driven valvetrain!!!
Carburetor: AMAL 4/017, GRAETZIN KE 20 or BING AJF 2/20
Transmission: 1933-1935: 3-speed, then 4-speed
Tire size: 3.00-19"
Weight: 120 kg
Length: 2000 mm
Gas tank volume: 11.5 ltr
Top speed: 90 km/h
General information: closed and fully sealed cylinderhead introduced in 1938 (until 1937 the valve springs etc. were fully visible)

NSU 251 OSL

Production: 1933-1940 and 1947-1952
Units built: 1933-1940:34977 1947:58 1948:667 1949:4849 1950:10442 1951:13570 1952:2879
Engine: 1 cylinder four-stroke, dry sump oil circulation
HP: 1933-1934:9.0 (5000 rpm) 1935:10.0 (5000 rpm) 1936-1940:10.5 (5070 rpm) 1947-1952: 10.5 (5000 rpm)
Engine displacement: 242 cc
Cylinder diameter: 64 mm
Piston stroke: 75 mm
Compression ratio: 6.2:1 max. 6.8:1
Valvetrain: OHV; two pushrods in one tube: only looks like a vertical bevel drive shaft driven valvetrain!!!
Carburetor: BING 2/22/16; pre-WW2 models with AMAL 4/017, GRAETZIN KE 20 or BING AJF 2/20
Transmission: 1933-1935: 3-speed, then 4-speed
Tire size: 1933-1949: 3.00-19", then 3.25-19"
Weight: 126 kg
Length: 2000-2040 mm
Gas tank volume: 11.5 ltr
Fuel consumption: 2.7 ltr/100 km
Top speed: 95-100 km/h
General information: closed and fully sealed cylinderhead introduced in 1938 (until 1937 the valve springs etc. were fully visible)

NSU 351 OT

Production: 1936-1939 and 1950-1951
Units built: 1936-1939:2803 1950:305 1951:150
Engine: 1 cylinder four-stroke, dry sump oil circulation
HP: 12.5
Engine displacement: 331 cc
Cylinder diameter: 75 mm
Piston stroke: 75 mm
Compression ratio: 6.3:1 max. 6.5:1
Valvetrain: OHV; two pushrods in one tube: only looks like a vertical bevel drive shaft driven valvetrain!!!
Carburetor: BING 2/22/16; pre-WW2 models with AMAL, GRAETZIN and BING AJF 2/20
Transmission: 4-speed
Tire size: 3.25-19"
Weight: 130 kg
Length: 2000-2040 mm
Gas tank volume: 11.5 ltr
Fuel consumption: 2.7 ltr/100 km
Top speed: 105 km/h
General information: closed and fully sealed cylinder head introduced in 1938 (until 1937 the valve springs etc. were fully visible)

Information supplied by Hartmut Schouwer
