British

Harper Runabout

avro-harper

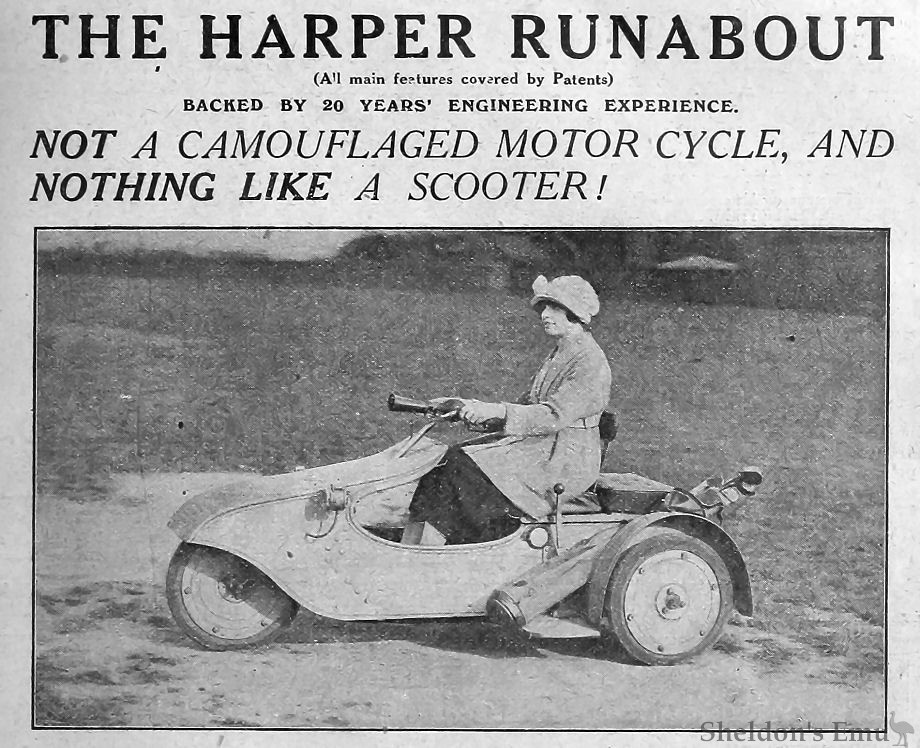

The Harper Runabout

(All main features covered by Patents)
Backed by 20 years' engineering experience.
Not a camouflaged motor cycle, and nothing like a scooter!

The Harper Runabout motorised tricycle was manufactured by A.V. Roe and Co Ltd at their aircraft factory in Manchester from 1921 to 1926. Designed by R. O. Harper, the machine had a plywood body mounted on a steel frame with cast-iron fittings and was powered by a single cylinder 269cc Villiers engine with a 3-speed gearbox. It was capable of 40 mph and gave 100 miles per gallon.

Seating was unusual in that it was back to back, the passenger facing rearwards. All three wheels had leaf-spring suspension, were detachable, and had what are described as "disc-type" brakes.

Controls, apart from the steering which is by motorcycle handlebars, is automotive fashion - throttle, clutch and brakes are by foot pedal.

Some 500 of these curious but eminently sensible vehicles were built.

R. H. Carlisle and Co of Manchester was a dealer.

Founded in 1910, the Avro company became part of the Hawker Siddeley group in 1935. See also Hawker

Manchester's Museum of Science and Industry has a Harper Runabout in its collection.

Although the Harper runabout has been primarily designed as a tender to a car and for general knock-about purposes, its showing in the Scottish Six Days Trials was such as to cause those who witnessed it to respect it as a workmanlike mountain-climbing touring vehicle with quite an extraordinary turn of speed. A 269 c.c. proprietary two-stroke engine is fitted, the cylinder of which has been re-designed by the makers of the three-wheeler. Three separate chains provide three direct speeds. Detachable and interchangeable wheels are used. Various constructional improvements have been made for 1923.

The Motor Cycle

NOVEMBER 30th, 1922. Page 871

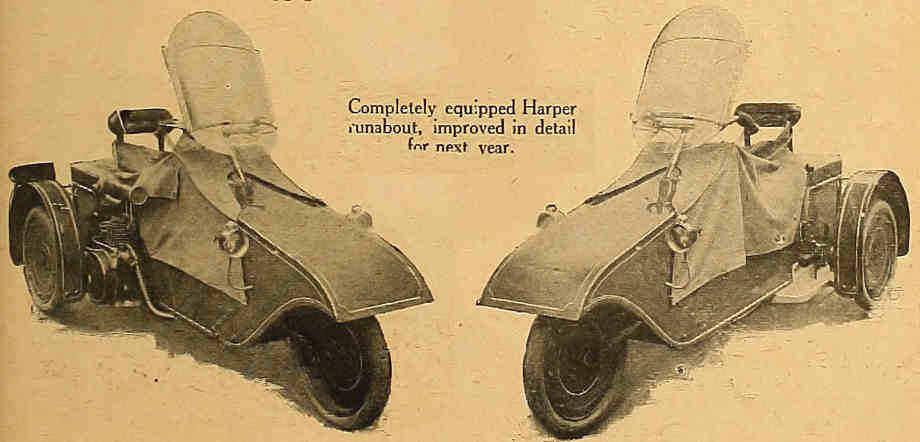

The Olympia Show. Harper-1922-Header-Oly

HARPER RUNABOUT. (122.)

Solo Three-wheelers. 2 H.P. Model.

70x70 mm. (269 c.c.); single cyl. two-stroke; petroil lubrication; Zenith carburetter; flywheel mag.; 3-sp. gear; clutch and lever-starter; chain drive; 2¼in. tyres.
Price £100.

E. H. Carlisle and Co., Ltd., 188, Deansgate, Manchester.

The Harper runabout stands in a class by itself. Its designers, recognising the demand for an exceptionally light, handy vehicle giving complete weather protection, have succeeded in producing a most, attractive little three-wheeler. Low upkeep and running costs are claimed for it, and, considering the power unit is only of 269 c.c. capacity and the entire weight only 280 lb., the claim may well be justified. A three-speed gear, chain transmission giving direct drive on all speeds, Zenith carburetter, independent foot and hand brakes, starting from the seat by lever, and foot acceleration are details which go to the making of a workmanlike little runabout.

The matter of luggage-carrying has been well considered, the space under the emergency extra seat being ample for light parcels, while provision has been made for the carrying of such things as golf clubs, fishing rods, and tennis rackets. The whole of the mechanism and body is supported on the quarter-elliptic springs, a desirable feature for so small a machine. On the question of actual road performance the little Harper can boast of a good record in the Scottish Six Days Trials. For the makers to have entered such an arduous event with a three-wheeler fitted with so small an engine exemplified fully their faith in the machine, and their temerity was justified.

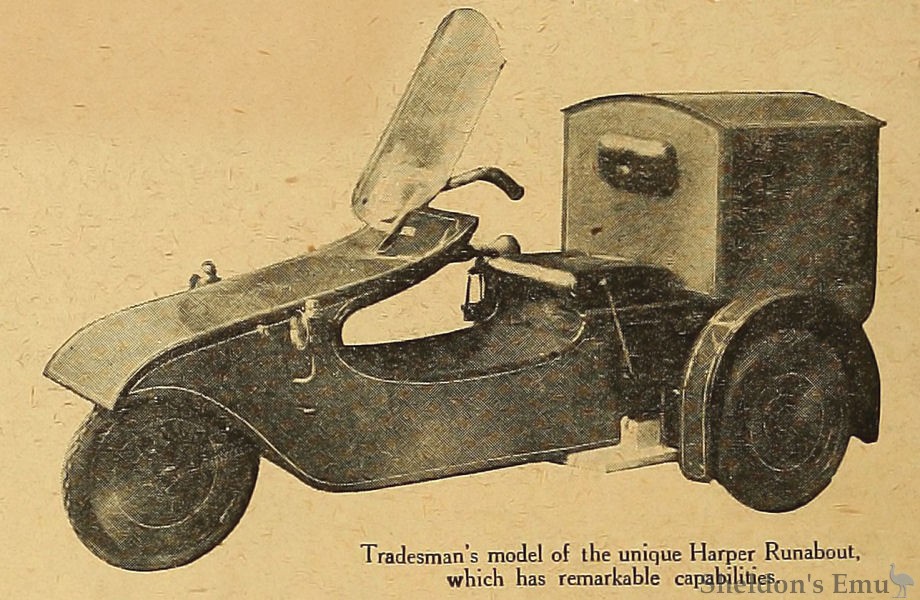

Tradesman's box carrier models are available.

Olympia Show 1922

Sources: Graces Guide, The Motor Cycle, yesterdays.nl
