The Rushworth Brothers built this motorcycle at Old Lane, Halifax in 1907.
The machine had an OHV 3½ hp engine mounted well-forward in a frame that had a 60-inch/152cm wheelbase, and rigid forks. It had footboards, and no pedals.
No further mention was made of this make after 1907.

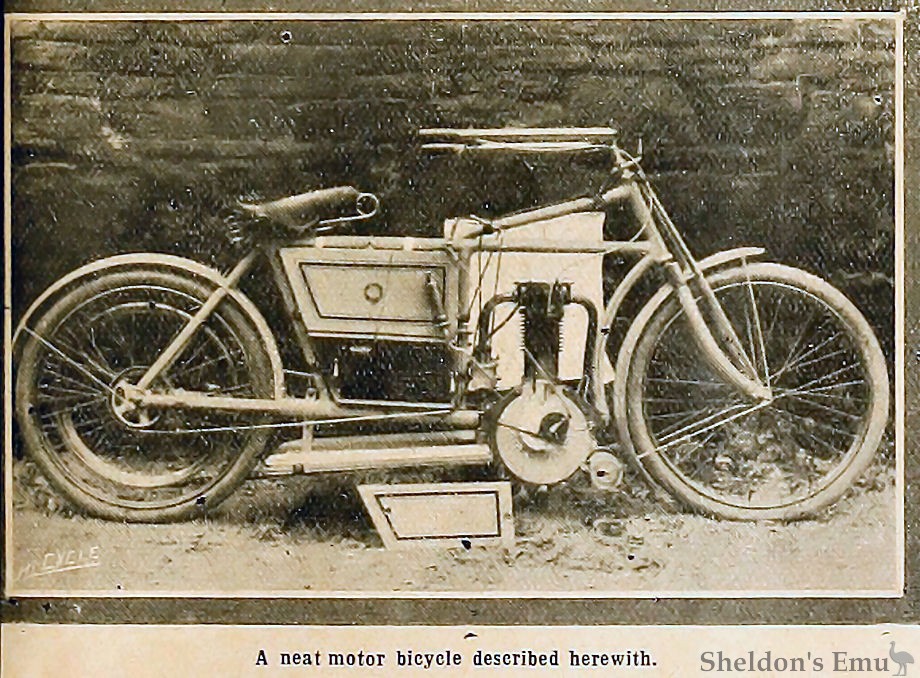

The motor bicycle illustrated herewith is one designed bv Rushworth Bros., of Old Lane, Halifax. The engine is rated at 3 ½ h.p., measures 81 mm. X 93 mm. bore and stroke, and is fitted with overhead valves, both mechanically operated. As will be noticed, the engine is placed well forward in the frame, and it is possible to dismount the cylinder, leaving the crank case in situ.
The ignition is by coil and accumulators, which are carried in a wood case underneath the petrol and oil tank. 26in. wheels are fitted. 2¼in tyres, two brakes (band rim and belt rim), both operated by foot and the weight ot the complete machine is as low as possible.
The machine has a 60in. wheelbase and a belt ten feet in length, which should induce to smooth running. It will be noticed that no pedals are provided, footboards being fitted to enable a more comfortable riding position to be obtained.
The Motor Cycle, February 6th, 1907
Source: Graces Guide
