European Motorcycles

Motorcycle Flat Twins and Fours

OPT 1919 HO Engine

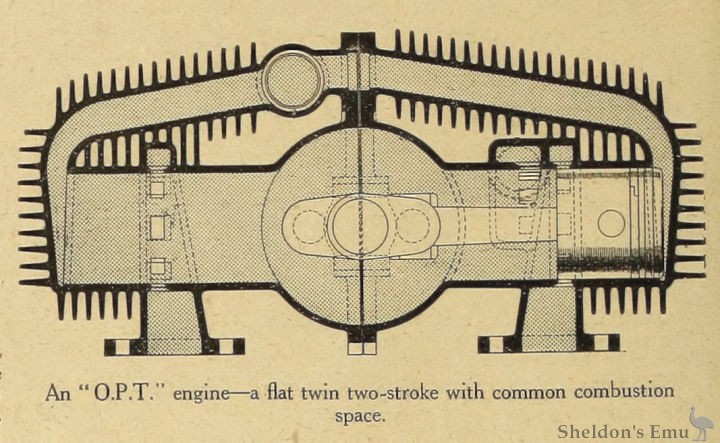

An "O.P.T." engine - a flat twin two-stroke with common combustion space. Featured in an article on the Black Prince

Horizontally Opposed Motorcycle engines from France, Britain, Germany, Switzerland...

The HO flat twin engine was designed and patented by Karl Benz in 1896, who named it the Kontra engine. The flat twin, or boxer, has both conrods on the same big-end journal. A flat four has two big-end journals and probably the best known example is the air-cooled Volkswagen. The design is used in a great number of light aircraft, beginning in 1909 and continuing today with Lycoming, Rotax and others.

HO Twin

Horizontally Opposed Twin

Examples include BMW, Zundapp and Douglas HO Twins have conrods running on a common crank, with one on the exhaust stroke and the other on inlet.

Motorcycles which have used such a design include:

Fée (1905) & Fairy
Douglas 1907
Corona
Elect
Fongri (Bradshaw)
Bradshaw - for a list of marques which used their engines see Bradshaw Oil-Cooled Engines
Matchless 1916/17 - Matchless Flat Twin 1916

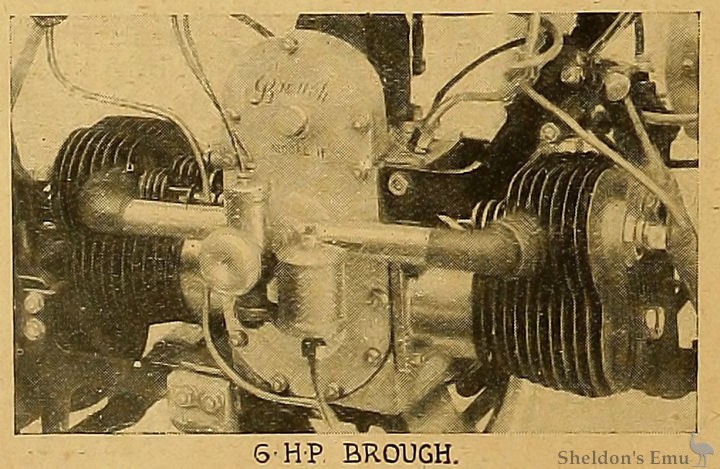

Brough 1916~1925 - Brough HO 1916
BMW 1923
Victoria. From 1923 they built 497cc and 597cc HO twins (KR2, KR3, KR6 etc.), some of which were supercharged for racing. The KR2 was belt-driven, while the KR3 Sport had a three-speed gearbox and chain drive.
Prior to this they had used BMW engines in their KR1, but built their own engines after BMW began motorcycle production.
Granville Bradshaw, ABC, and later Gnome & Rhone
Zundapp, 1930s
BFG (Citroen GS)
Honda Goldwing fours and sixes
Riedel, who built the Imme, designed a flat twin for jet aircraft during WWII. It was built by Victoria.
Dneipr of Ukraine adapted a German design and produced large quantities, particularly for sidecar use.
Williamson (Douglas)
Zenith 347cc HO Twin 1919

Sources: Wikipedia, moto-collection.org et al.


If you have a query or information about HO motorcycle engines contact us
