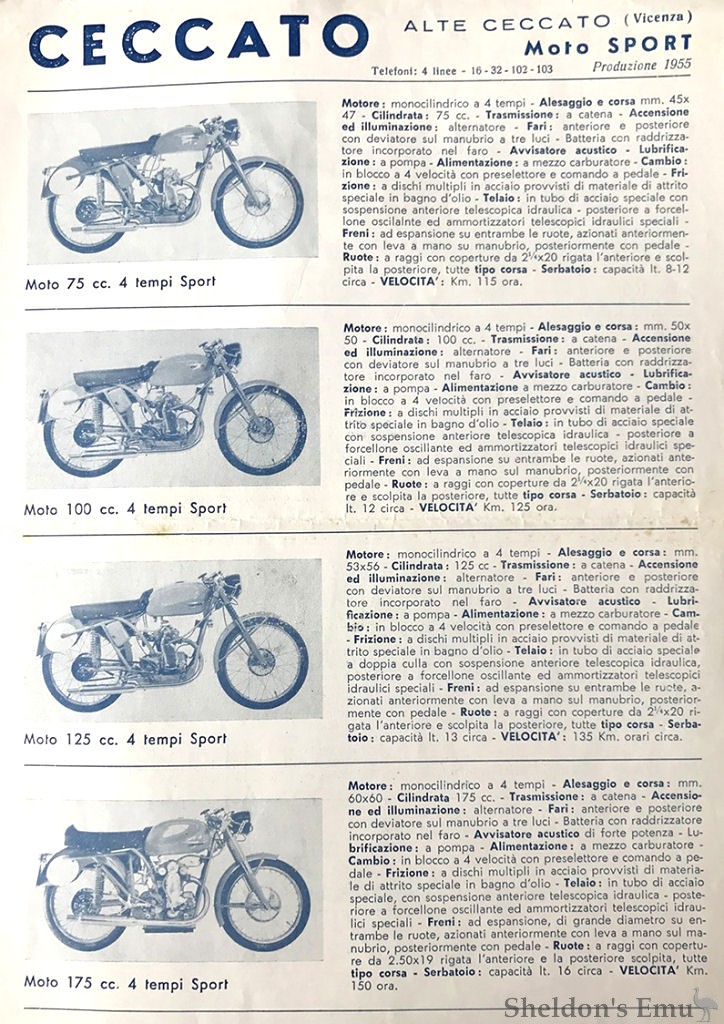

Ceccato 1955 Model Range, Page 2


175cc Sport 1955


Motore: monocilindrico a 4 tempi - Alesaggio e corsa: mm. 60x60 - Cilindrata 175 cc. - Trasmissione: a catena - Accensione ed illuminazione: alternatore - Fari: anteriore e posteriore con deviatore sul manubrio a tre luci Batterie con raddrizzatore incorporato nel faro - Avvisatore acustico di forte potenza - Lubrificazione: a pompa - Alimentazione: a mezzo carburatore - Cambio: in blocco a 4 velocitå con preselettore e comando a pedale - Frizione: a dischi multipli in acciaio provvisti di materiale di attrito speciale in bagno d'olio - Telaio: in tubo di acciaio speciale, con sospensione anteriore telescopica idraulica posteriore a forcellone oscillante ed ammortizzatori telescopici idrau• lici speciali - Freni: ad espansione, di grande diametro su en• trambe le ruote, azionati anteriormente con leva a mano sul ma. nubrio, posteriormente con pedale - Ruote: a raggi con copertu re da 2.50x19 rigata l'anteriore e la posteriore scolpita, tutt( tipo corsa Serbatoio: capacitå It. 16 circa - VELOCITA Km 150 ora.

Engine: 4-stroke single cylinder - Bore and stroke: mm. 60x60 - Displacement 175 cc. - Transmission: chain - Ignition and lighting: alternator - Headlights: front and rear with three-light switch on the handlebar. Battery, with rectifier built into the headlight - Strong horn - Lubrication: pump - Power supply: by carburettor - Gearbox: 4 speed block with preselector and pedal control - Clutch: with multiple steel discs equipped with special friction material in oil bath - Frame: in special steel tube, with front hydraulic telescopic rear suspension with swinging arm and shock absorbers special hydraulic telescopic - Brakes: expanding, large diameter on both wheels, front operated with hand lever on the ma. handlebar, rear with pedal - Wheels: spokes with 2.50x19 ribbed cover, front and rear sculpted, all (race type Tank: capacity 16 litres approx. - SPEED 150 Km/h.
