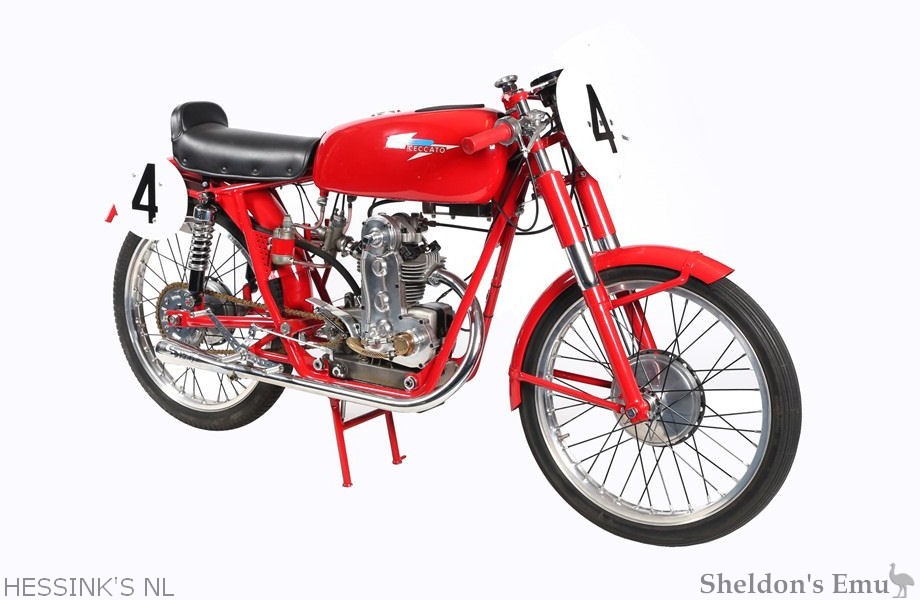

Ceccato Corsa 75 1954

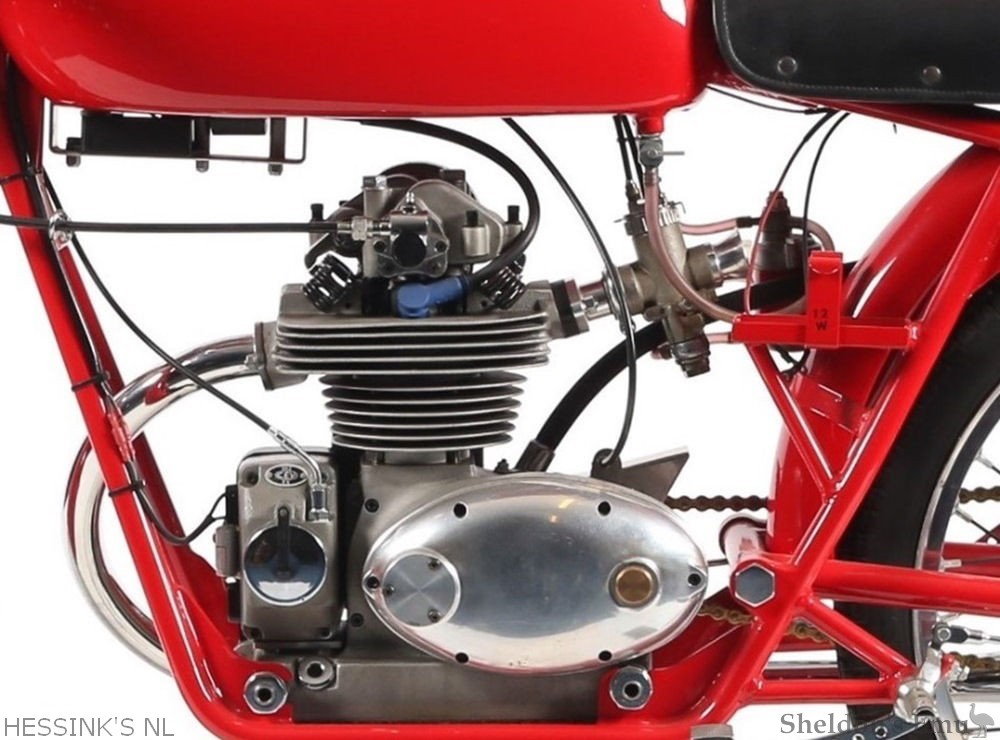

Engine: Single cylinder four-stroke OHV

Bore & stroke: 45 x 47 mm

Maximum power: 74.75cc

Engine Capacity: 7 h.p. @ 10,500 rpm

Valve train: Gear-driven overhead camshaft, valves angle of 90 °, hairpin springs

Valves per cylinder: 2

Carburettor: Dell'Orto UA 18 BS3

Cooling system: Air cooled

Ignition type: Battery / coil ignition

Lubrication: Forced with oil in the finned cup and coaxial gear pump to the ignition generator

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disk

Gearbox: 4 speed foot-change

Throttle: Cable operated

Frame type: Double tubular cradle frame

Suspension: Telescopic front fork with hydraulic damping

Rear Suspension: Dual Hydraulic shock absorbers

Front Brake: Light alloy drum brakes Ø 120 mm

Rear Brake: Drum

Front Tyre: 2.375 x 20 in.

Rear Tyre: 2.375 x 20 in.

Wheelbase: 1,200 mm

Seat: Tail-prolonged upholstered race seat

Top speed: Around 140 km/h (86.99 mph)

Weight: 70 Kg

Source: Hessink's NL
