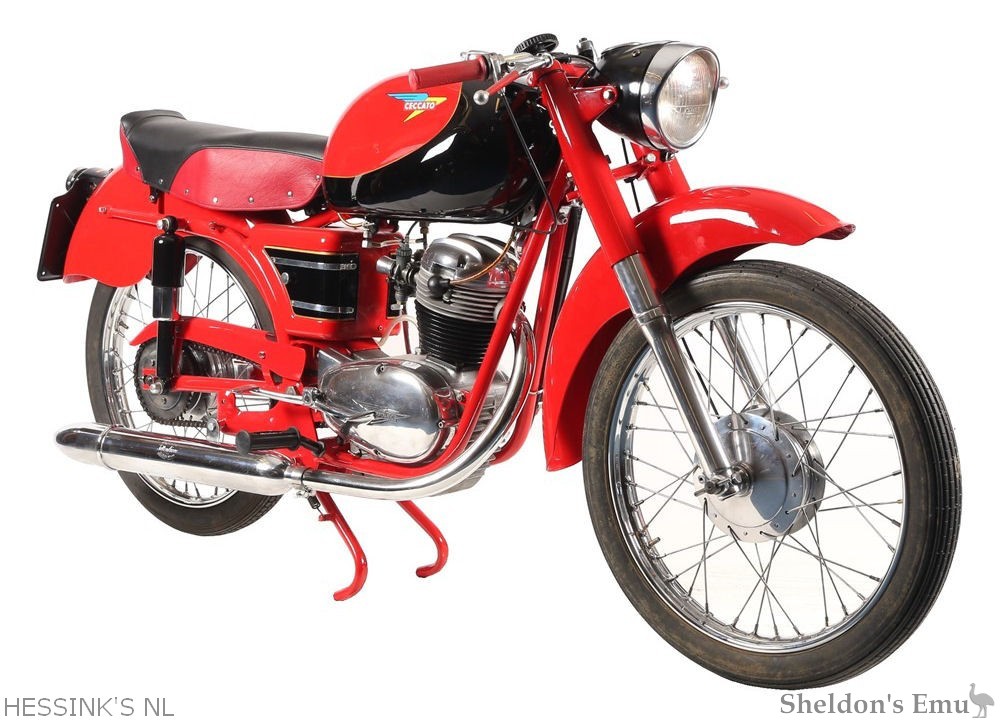

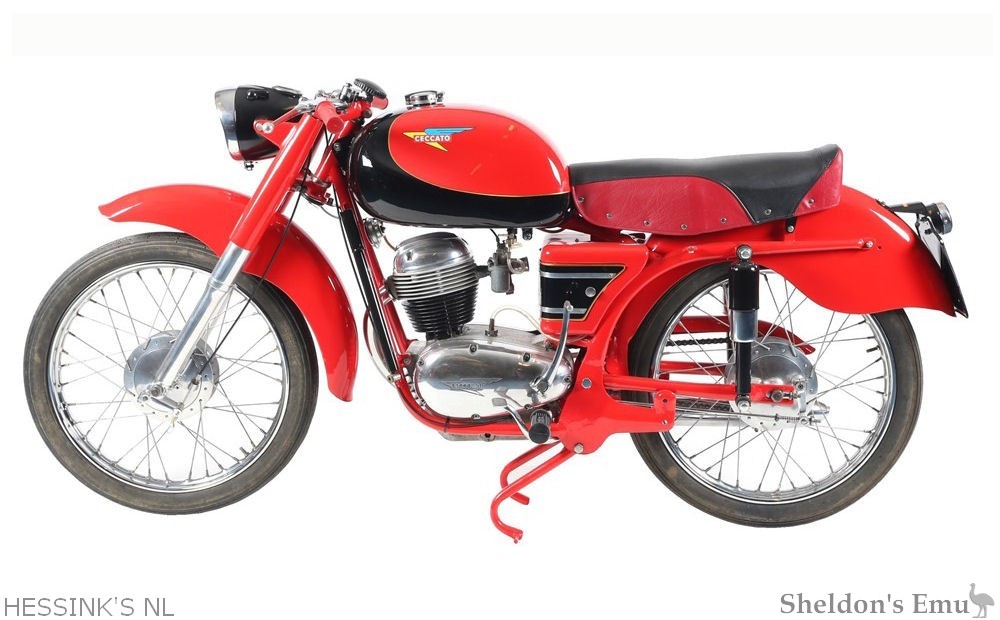

Ceccato 125 Sport 1955

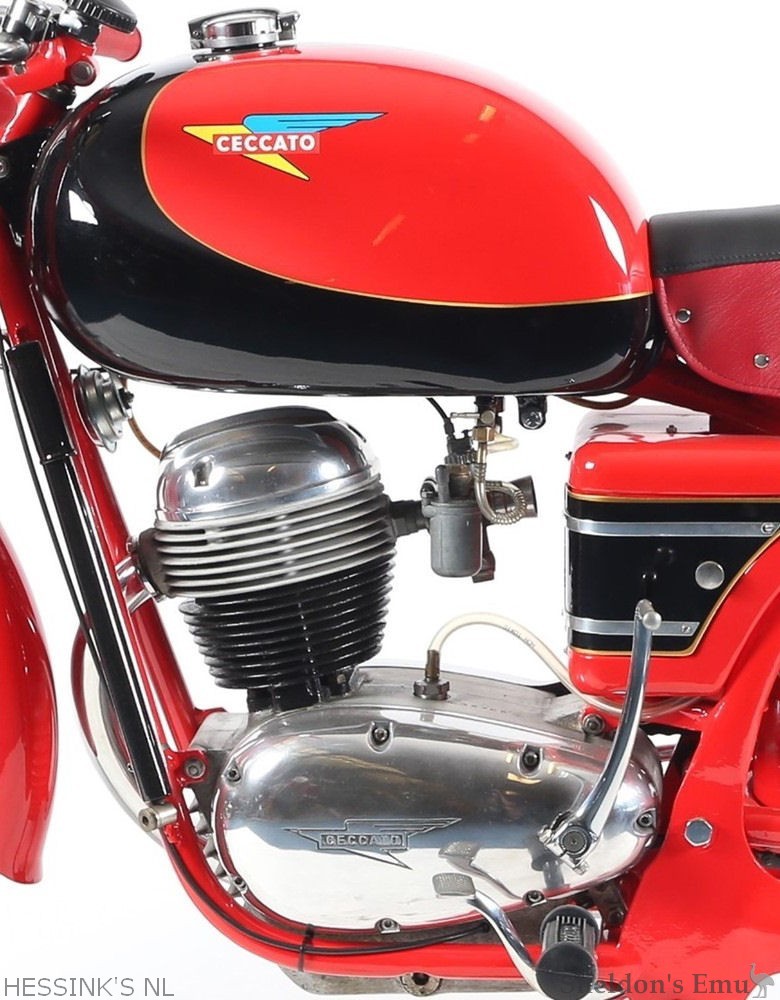

Engine: Single cylinder four-stroke OHV

Starter: Kick-starter

Bore & stroke: 56.5 x 53 mm

Compression ratio: 9.2:1

Engine Capacity: 123cc

Maximum power: 8 HP (6 kW)

Valves per cylinder: 2

Carburettor: Dell'Orto

Cooling system: Air cooled

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 4-Speed foot-change

Throttle: Cable operated

Frame type: Single tube frame and pressed steel

Front Suspension: Telescopic

Rear Suspension: hydraulic damers and swinging arm

Front Brake: Drum

Rear Brake: Drum

Front Tyre: 2.40 x 2.25"

Rear Tyre: 2.40 x 2.25"

Seat: Dual seat

Fuel tank capacity: approx. 13 litres

Top speed: around 100 km/h

Source: Hessink's NL
