A Brief History of the Marque

Dürkopp Werke AG 48 Bielefeld, Nikolaus-Dürkopp-St

Founded in Bielefeld in 1867 by Nikolaus Durkopp, the factory was producing motorcycles before the turn of the century. Motorcycle manufacture ceased between 1912 and 1927. Production of all motorcycles and scooters ended in 1961 as sewing machines were proving more profitable.

1905 Durkopp Four-cylinder Engine

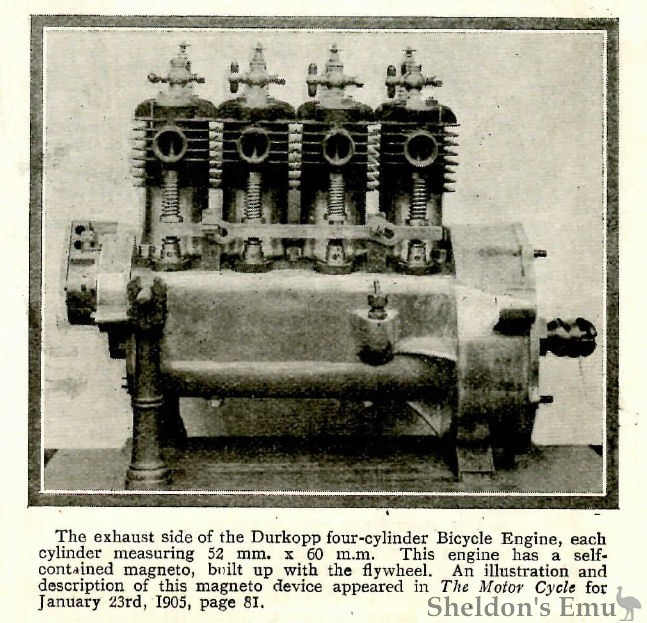

The exhaust side of the Durkopp four-cylinder Bicycle Engine, each cylinder measuring 52 mm. x 60 m.m. This engine has a self- contained magneto, built up with the flywheel. An illustration and description of this magneto device appeared in The Motor Cycle for January 23rd, 1905, page 81.

The Durkopp Ignition.

The four-cylinder engine has a bore of 52 mm. and a stroke of mm. The valves are mechanically operated, the inlet and exhaust valves being on opposite sides. The usual Durkopp v-tension magneto incorporated with the flywheel is fitted, the four exhaust valves are raised simultaneously by means a sliding rod in which parallel slanting slots are cut. When is rod is pulled forward it slides along in a slightly upward reaction, lifting up with it the valve washer. At the end of the camshaft operating the exhaust valves the contact breaker is carried, which gives a large range of advance. The distributor is worked off the camshaft operating the inlet valves. These latter have a variable lift. Each cylinder is provided with a compression tap, the top of which is protected by a spring dust cap, the whole fitting being particularly ingenious and well made. This engine is fitted with a larger flywheel than is usually found on four-cylinder motor bicycle engines. All the Durkopp engines are fitted with ball bearing crankshafts.

The Stanley Show, November 1905

In the 1920's the Durkopp automobile factory employed over 6000 workers building a range of cars which included models from 1500cc to over 6 litres.

The company was very active in the years leading up to WWII, producing all manner of armaments and components, and by 1944 had up to 3000 prisoners of war and forced labourers in its workforce.

Post-war production commenced with a motorized bicycle powered by a 48cc JLO engine delivering power to the rear wheel by roller drive.

Durkopp's most successful post-war model was the MD150, introduced in 1951 and remaining in production until 1954. Almost 18,000 MD150 machines were built. There was also a 198cc model, the MD200, available from 1952 to 1954.

1955 saw the acquisition of the Ardie company following which Durkopp's Fratz I, II, III, IV and Dianette mopeds were marketed under the Ardie label.

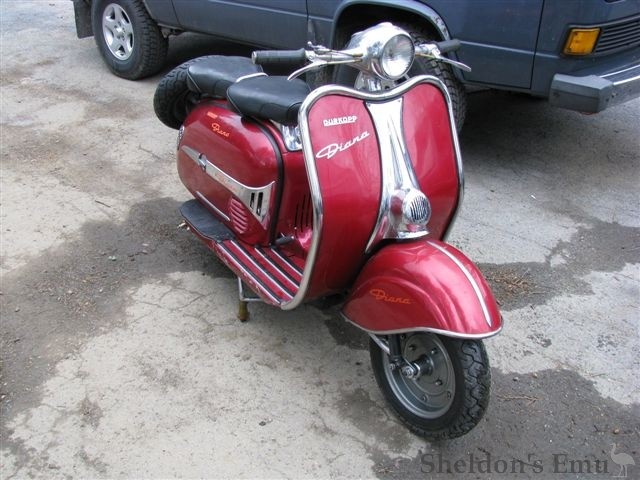

First displayed at the Frankfurt Show of 1953 (the IFMA Fair), the Diana scooter entered the market in 1954. A relatively luxurious unit with electric start and a four-speed gearbox for its 200cc two-stroke engine, it was well received.

Two new models were introduced in 1959, the 175cc Diana TS and the Diana Sport with a more powerful 198cc engine.

Production of the Diana and all motorcycles ended in 1961.

After a series of mergers, the company was bought by Chinese investors in 2005.

Excellent history in English and German at duerkopp.de/history.htm

Models included
1936 M10 98cc Sachs, M11, M12
1936 M12 Sport
1937 M10 Sport, M11
M10 98cc Sachs
MKL 100, MF 100, MFS 100 Sachs
M125 ILO
M125A Ardie
1951-1954 MD150 ( < 18,000 units)
1952-1954 MD200 (10,000 units)
1952 Mopeds Fratz I, II, III, IV and Dianette (all marketed under both Durkopp and Ardie labels)
1954 Diana 200cc Scooter
1959 Diana TS 175cc
1959 Diana Sport 200cc

Sven at westhoeknv dot be
Re: Durkopp Diana
Good afternoon
I recently bought 2 durkopp diana scooters and i am trying to find the workshop manuals.
Could you help me finding them please
Thank you in advance
I live in Belgium
King regards

    Link to downloads page emailed.

nikola.cicovacki at gmail.com
I need someone to get in touch with me
I have started my restoration process on my Diana 200cc and I need some spare parts! Can someone help me?
Nikola Cicovacki
Sombor, Serbia
15-Oct-2018 oetjens.manfred at t-online.de
Duerkopp ML 100
Hi, I'm looking for a wiring diagram for the a.m. bike. best regards manfred
Manfred Oetjens
schwedeneck, germany

garylatl at yahoo.com
Durkopp MD 150
Hi, How can I determine a reasonable value to place on this motorcycle? It is in almost perfect cosmetic condition, but it has not been operated in a few years. It was professionally restored in Germany and shipped to a private collector in the United States prior to my acquisition. I have attached a pic of this motorcycle.
Gary Hoilman
Clayton, GA 30525 USA

Tue Jun 06 2017
dvdchipman67 at gmail.com
Value if sold

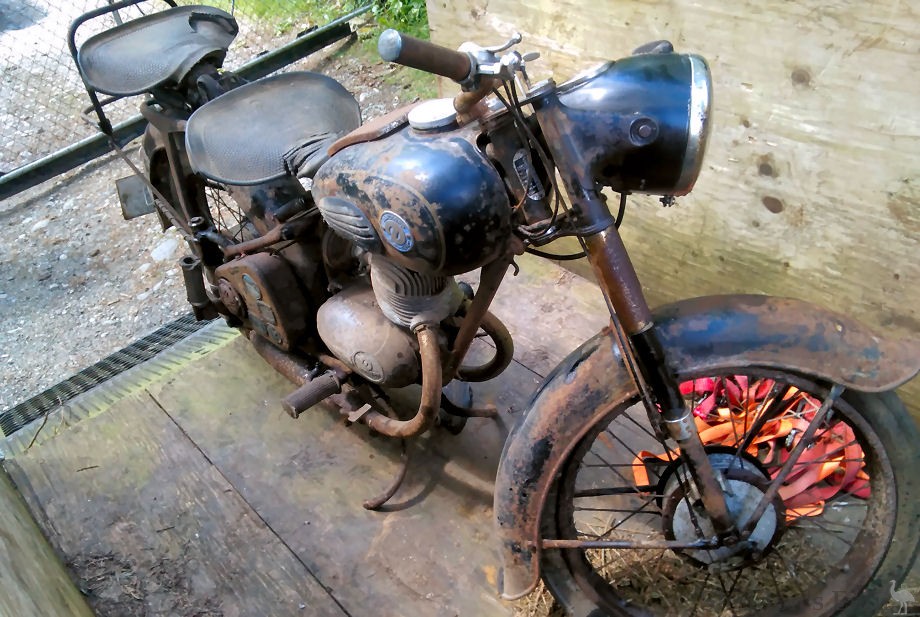

Durkopp MD200
I found this bike awhile ago and had never heard or ever seen one. I have searched the web and have no luck finding a value on it. It had been just sitting for quite some time under a tarp. I don't have the funds to restore it or the time so was looking at selling but want to know where to start or look. Thank you.
Washington state
Sun May 22 2016
pontijm at swissonline.ch

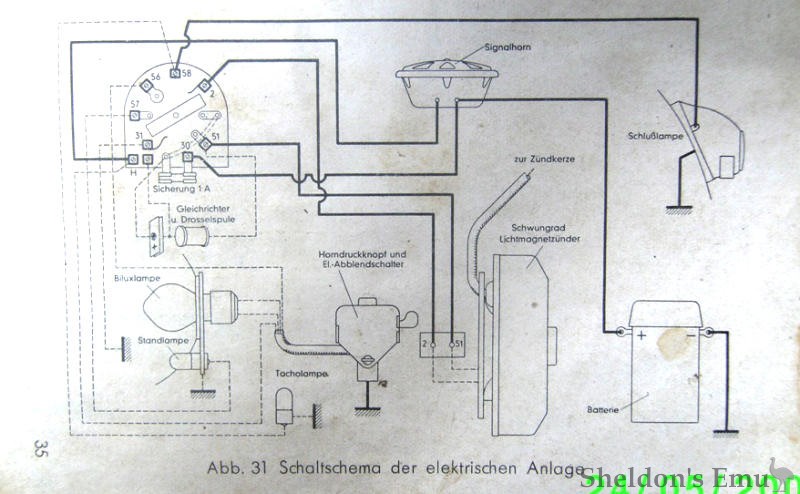

wiring Durkopp MD200
Durkopp MD200 1953
if anyone have a wiring for a Durkopp MD200 1953
It would be very helpful for me It seems different from the 1952 with 2 ?? in the light
La Tour de Peilz Switzerland
Sat Apr 25 2015
arilei67 gmail.com
Durkopp Md 150
1952 MD 150
transmission broke need parts help me ,

Sun Sep 28 2014
jmgouv at yahoo.com
Durkopp Diana 200 Model D2
I'm restoring a scooter Durkopp Diana 200 Model D2 (chassis number 201942).
However I have had difficulty finding who sell parts for this brand.
Looking for some help and thought someone here might have information on where to buy these parts.
I'll be very grateful if you could give me some response.
I need the following parts:

1 Piston 65mm with ring set.
1 Connecting Rod.

Thank you.
Jose Gouveia
Mafra - Portugal

Sun Nov 17 2013
milosmitrevski<at> yahoo.com
durkopp md 200 1953
how to speed gearbox has DURKOPP MD 200

Mon Nov 19 2012
Fuel tap
1955 200E
Please infor if you can help to find a Fuel tap for Diana Durkopp 200cc w/o electric start from 1955
Posted in the German Motorcycle Forum

Thu Mar 15 2012
bebsreilly<at>gmaildot com
Bike for sale

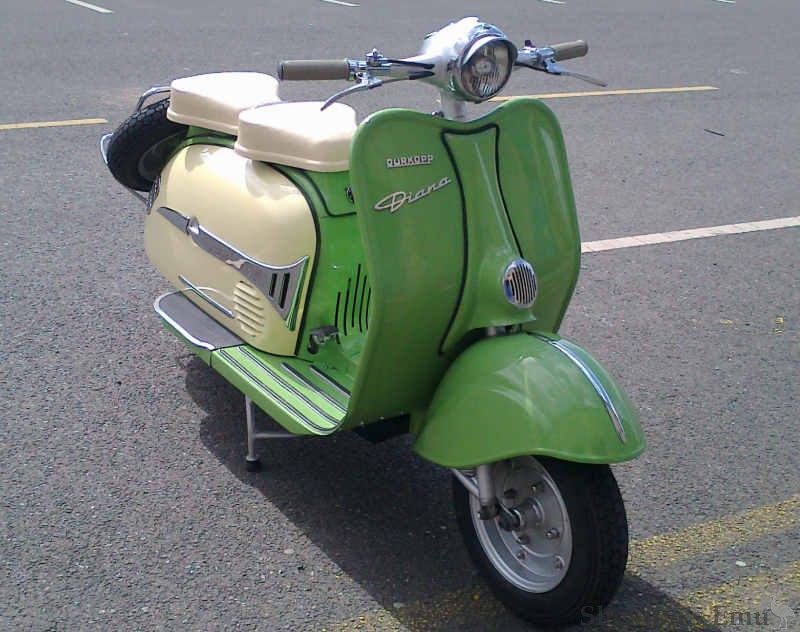

Durkopp Dianna
1958 Durkopp Dianna Scooter.Classic scooter, fully restored, nut and bolt rebuild. Any inspection welcome. Call for more details. Photos before and after. This is a rare opertuinety to own a pice of motering history.
Price: 4,750 http://www.donedeal.ie/for-sale/vintagebikes/2878956
Dublin Ireland

Fri Jan 13 2012
jackmaunders3<at>gmaildot com
Durkopp Diana
Diana Sport 1960/61
I had a two tone Sport with chrome bars all round from 1961 to 1965, and would love another.
SW London/Surrey

Fri Jul 08 2011
drsanjeevvaz<at>gmaildot com
durkopp md 200 1953
I am restoring my father's MD 200. I need a chain cover , the aluminium insert at the junction of the cover and the engine and also the disc which fits on the rear wheel between the top and the bottom half of the cover. Can you help me find these parts. Thank You
Goa, India.

Wed Mar 23 2011
spare parts/complete bike
durkopp md200 1953
Main item required is a conrod for the motor.Would consider complete motor
wedderburn NSW

Wed Feb 23 2011
michael.e.regan<at>gmaildot com

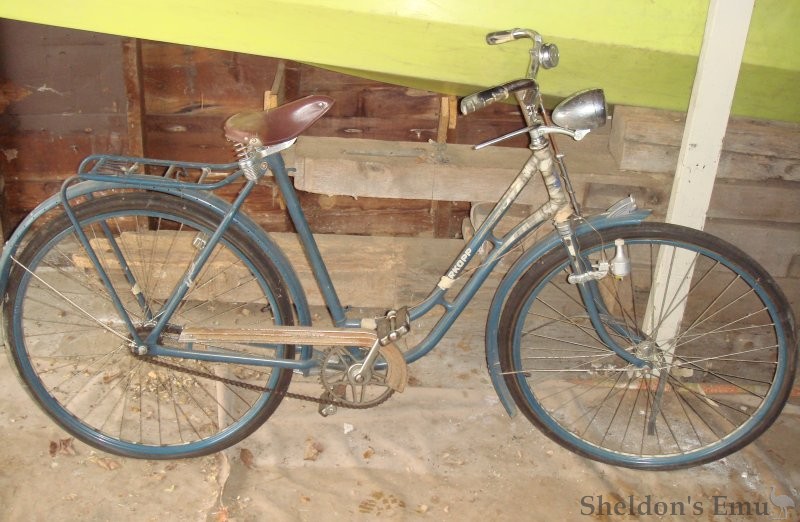

Durkopp Diana Bicycle
I am having incredible difficulty finding any information on this bicycle. Can anyone help me identify it and tell me a little about it? I'm not sure if it is rare or not. I'm not sure how to tell exactly what decade it is from either. Any help would be wonderful. Thanks!
New York

Wed Sep 29 2010
durkopp md150
where can i buy pistonrings for my durkopp md150

Sat Jul 24 2010
donpetrallis<at>hotmaildot com

durkopp md 200
hi, i have a durkopp md 200
does anyone know where i can find parts for this bike?
many thanks andy

Wed Apr 14 2010
Durkopp Diana exhaust
Durkopp Diana 200
hi, looking for an exhaust system for my durkopp diana 200, please email me fo you can help.
North Wales, UK

Wed Apr 14 2010
durkopp diana cylinder head
durkopp Diana 200
hi looking for a durkopp diana 200 cylinder head asap
please email me
North Wales, UK

Wed Nov 18 2009
kynus92 at interia.eu

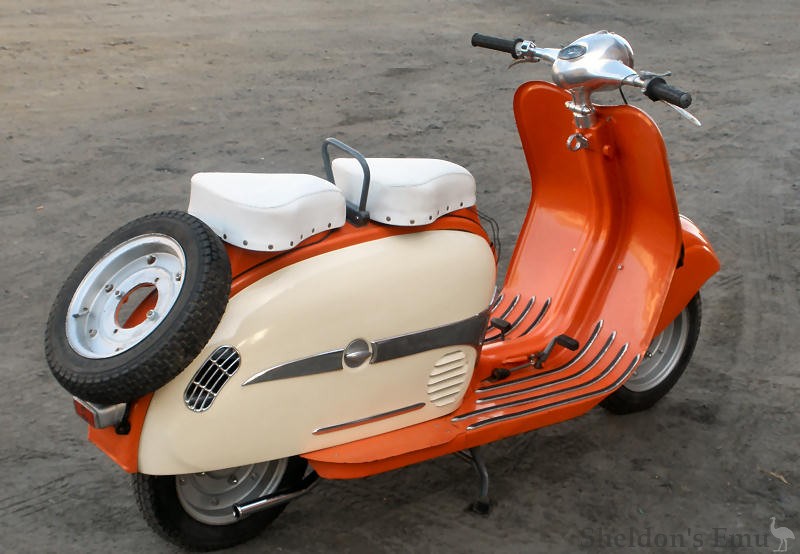

Durkopp diana
sprzedam skuter durkopp diana z 1955r. Sprawny, stan bardzo dobry. Cena 1500 euro. Tel.+48 609 852 028

Fri Jun 05 2009
aswin.rinaldy at yahoodot com
My Collection
1952 MD 200

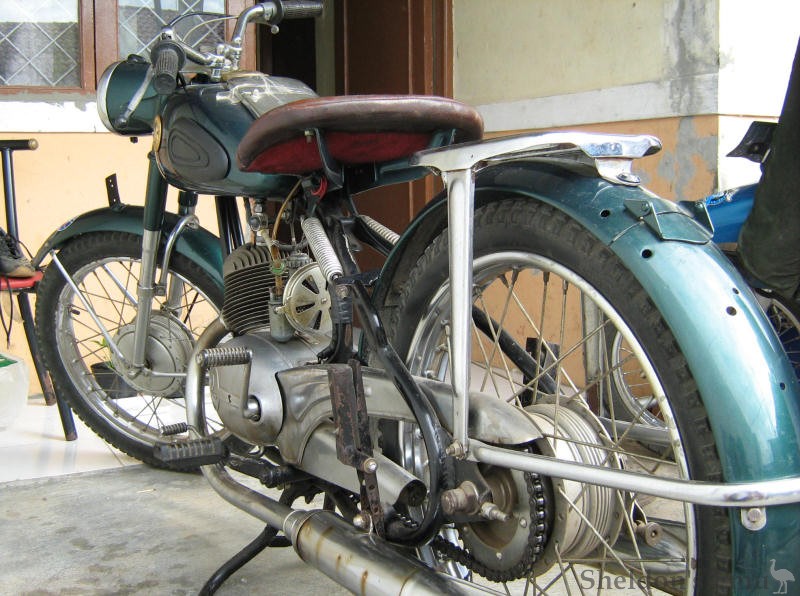

I am an Indonesian. I have Durkopp Motorcycle MD 200 1952 with 2 manual book and its original wrench. Lucky me! hahaha

Sun Apr 26 2009
lkrha at online.no
durkopp m12 1938
does anyone know where I can find parts for my 1938 sachs engine?its difficult to find parts here in norway

Sat Apr 25 2009
jamesisaacs at bigponddot com
durkopp diana sport
tying to find anyone with parts

Tue Mar 31 2009
kelli-webb at yahoodot com
Vintage Motorcycles
Duerkopf Duerkopf
I don't know much about these German motorcycles other than we have one and I would like to find out more information about it. Can you help me? Kelli

Sun Jan 18 2009
s.lockley at skydot com
1960 durkopp diana diana sport model 60.
We have a 1960 durkopp diana for sale, unfortunately not in working order we have also workshop manual which is very good condition.wondered if anyone interested in buying please contact
either by
email, or phone tel 01142213644
sheffield south yorkshire

Wed Dec 10 2008
m.ferguson949 at btinternetdot com
dukupp diana sports
where can I get pistons for 1959 machie anybody help me, best regards
 m. ferguson

Tue Nov 25 2008
bmorley at bigpond.net.au
Durkopp Mr Diana scooter
Mr Diana 1958
Need a clutch cover for my Mr Diana and was wondering if you know where I could get this or who to contact to get this?
please email me

Wed Nov 05 2008
chinnimt at hotmaildot com
Durkopp Diana 1957 Information Required

dear sir,
I have a Durkopp Diana.
I think it is a 1957 model.
I require some parts to complete my restoration.
I also would like to see if I can still but a work shop manual or a book with information.

Can you please guide me as where I can aquire more information about this bike.
I thank you in advance and wait your reply.

Kind Regards
Naxxar, Malta

Thu Sep 11 2008
MRudyawan at gmaildot com
. .
My Classic Motorcycle

Wed Apr 09 2008
karl.mullendore at gmaildot com
Durkopp Diana for sale

I have 1956 Durkopp Diana I'd like to sell. It is complete and in good running condition. $3500 or near offers.

Sun Mar 02 2008
emil at hs-decorativdot com
Spare parts
Info Diana Durkopp
I need some spare parts for Diana Durkopp 1958. Any infirmation available is appreciated.

Mon Oct 15 2007
dburgess at nwlinkdot com
My Old Scooter
1958 Durkopp Diana

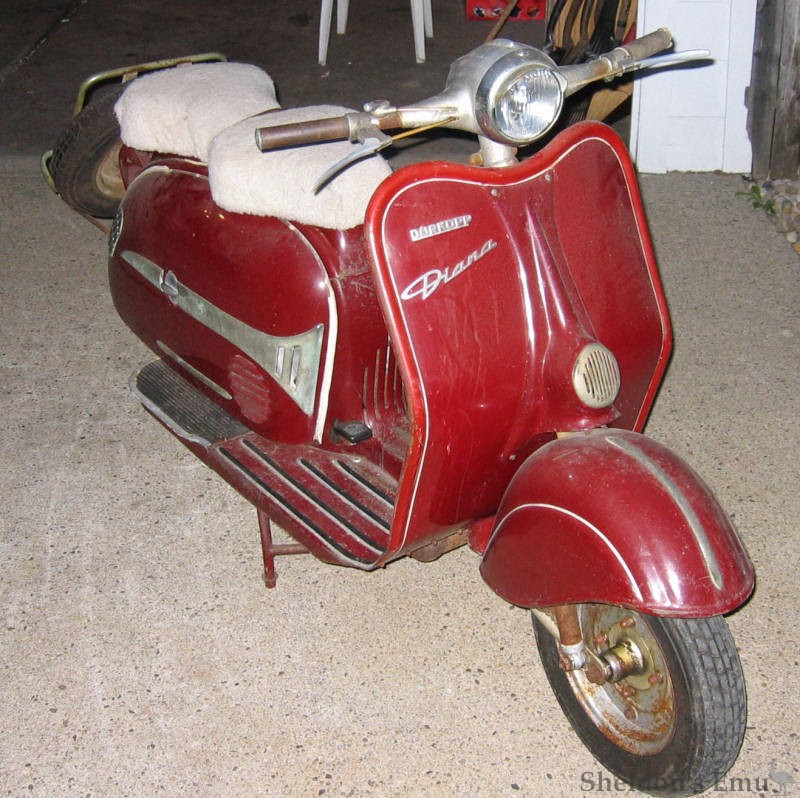

Mischa in Detroit has posted a picture of what I believe is my old Diana. If Mischa sees this, please contact me!! David Burgess, Seattle
Seattle, WA

Tue Sep 04 2007
esepulve at iie.ufro.cl

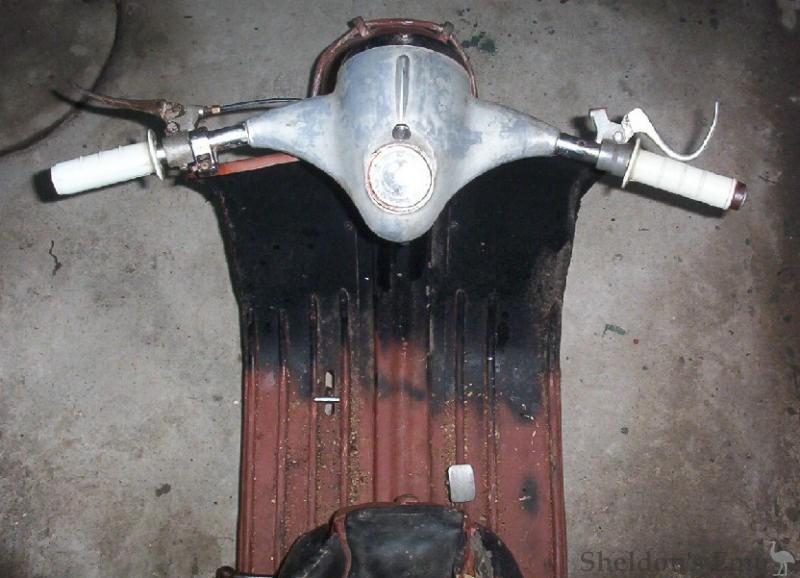

necesito manuales del motor

Ncesito manuales del motor para restaurar mi Diana, contactarme en


Thu Aug 16 2007
karl.orpin1 at btinternetdot com
1958 Durkopp Diana
How much would a 100cc engine cost for this scooter?

Sun Jul 15 2007
philtaylor207 at hotmail.co.uk
durkopp diana 200 sports
hello the scooter is running and would mot
 i have the v5 it has its own number too many projects thanks

Wed Apr 18 2007
MischaP at comcast.net
1958 durkopp diana
I would love to get the oil and fluid specs if anyone has them. I can't seem to find any info.Anything would be greatly appreciated.
Detroit, Mich

Sat Mar 10 2007
bern.bennett at tesco.net
Photo for gallery
Durkopp Diana Sport
Attached photo of my Diana in the late 50s.

Had a partial seizure after 200 mile trip, engine distmantled by M/c expert who said it was the finest 2stroke engine he had ever seen, and he could not understand why a needle bearing had disintegrated as the lubrication was fine.
Toured Holland & Belgium in the following 2 weeks and everything went fine.
Coventry UK

Durkopp Diana 1957

Tue Feb 27 2007
mdawson at hbgc.co.uk
Durkopp Manuals
1953 OTTO 150cc
My friend has purchased a 1953 150cc Durkopp and would like to see if a wiring diagram is available, as it currently is stripped of all wiring. Does any one know if this is available somewhere and if spares are available in the UK?

Wed Dec 06 2006
fiedlerh at att.net [bounced]
Deurkopp Automobiles
Car #13
My gransfather drove the Deurkopp #13 factory race car. I'll try to find a picture of it.

Tue Jul 04 2006
ssteedman at sbcglobal.net
Durkopp Motorcycles
I'm interested in buying a Durkopp? Do you know of any for sale?

Tue Mar 21 2006
design at smoothprintingdot com
1952 durkopp
I was wondering if you could point me to any info on durkopp motorcycles, parts, history any thing would be helpful. Not finding anything on line about them. thanks, clay

There are a few entries for Durkopp in Bikelinks, here:
Otherwise, information is very sparse.

Fri Nov 18 2005
osdaljul at hotmaildot com
durkopp scooter
I own a Diana TS 200, who can help me to find technical information about this scooter
Julien Dams ,Belgium

Sat Oct 29 2005
mailbox.tut at tut.by
duerkopp m10 1927 year
hi! i own durkopp m10 motorrad, but i cant find any information about it. please if You have a material about it write me.
sincerly yours, max.

Oct 2005
Book on Ebay Germany
Ardie und Durkopp Motorrader
Durkopp: 1,75HP - 2,5HP - 2,25HP - 3HP - 3,5HP - 4,5HP - 6,5HP - MF - M 207 - M 10 - M 11 - M 12 - M 12 Sport - Saxonette - M 10 - M 100 - MF 100 - MFS 100 - ML 100 - MKL 100 - M 125 A - MD 150 - MD 200 - MD 176 - MD 201 - Diana - Fratz - Dianette .... .

Original in Folie eingeschweiut, 21 x 28 cm / 144 Seiten / 270 Abbildungen/ Hardcover

Sun Oct 16 2005
canovaclaudio at ciudad.com.ar
Durkopp Moped Cycle
Could you please let me know some about this Durkopp.
Greetings from Argentina.

Thanks for your fast reply, I bought this bike many years ago in Argentina and was in the shape you saw I just make a little upgrade in the Engine, as you can see the bike is an Original Durkopp cardan transmission the Engine is two strokes and the transmition to the front wheel is done by a rubber chain, I`m sending another close up picks, somebody told me that this bike is from1918 y realy don`t have no idea, thay is the meaning at once to share this bike to the Web and the other is to help me to know about the History of this rare Bike. Hoping to have news form You.


July 23, 2000
HI I own a Durkopp bike under a Portuguese registration as being a MD176 model from 1958. The bike is a 2stroke single cylinder 175cc with 2 exhaust pipes, one on each side. I'm trying to find out as much as I can about it, things like manufacturer's history, technical designs (restoration is involved), parts' dealers, market value etc. It looks like a DKW 175 of 1957 but with an extra exhaust. Any information welcome. THANKS. -- Paulo Noronha  -- psergionoronha at hotmaildot com
