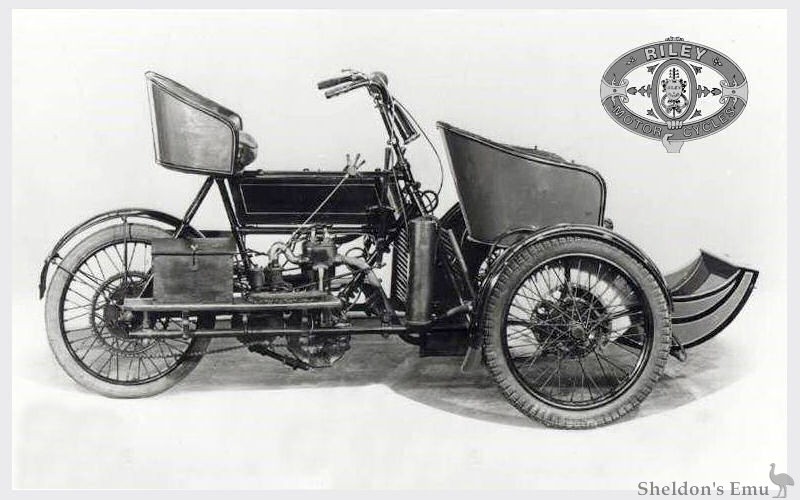

Riley Forecar 1903

Riley Motorcycles

Riley motorcycles were produced between 1899 and 1907, in Coventry.

  • 1899 The firm had started to produce tricycles and quadricycles using 2¼ hp German Cudell or Belgian Minerva engines, both of which went behind the rear axle and, according to the type, one or two front wheels were fitted.

    1900 At about this time engines were changed to a 2¾ hp or a 3½ hp MMC.

    1901 The first motorcycle appeared as a typically primitive solo fitted with a 1½ hp Minerva or a 2¾ hp MMC engine.

    1902 A forecar design was added to the range.

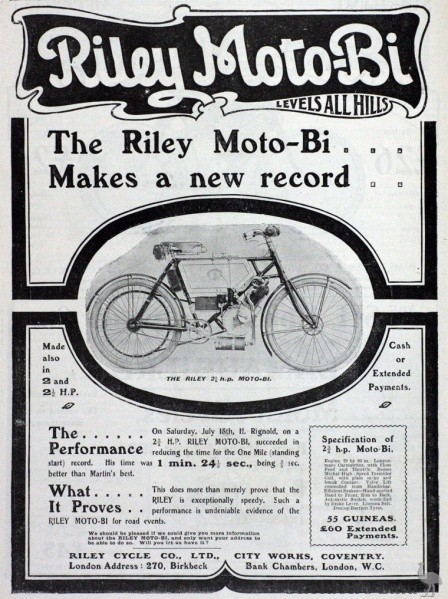

    1903 During the year a further option was added in the form of a 3½ hp MMC engine. The solos were advertised as the Moto-Bi. Late that year, Riley started fitting their own engines in the vertical mounting position, but still kept the Moto-Bi name. Engine sizes were 2.25-hp, 3-hp and 3.5-hp. The largest of those was intended for forecar use, with the option of water- or fan-cooling, and both forecars and sidecars were included in the range.

    1904 The forecar was revised that year.

    1905 A further forecar was added to the range.

    1906 A fairly heavy machine appeared, fitted with a 6-hp, 804cc V-twin engine, but early in the year the production of motorcycles stopped and the company turned its attention firstly to tricars and then to motorcars.

    1912 Spennell's lists them at St. Nicholas Street, Coventry (Wire, Kite; Tel. 216) and as manufacturers of motorcycles.

See also The Riley Company


Report from the 1902 Stanley Show

Stand 96. The Riley Cycle Co., Coventry, are showing a very powerful-looking motor-bicycle, fitted with an M.M.C. engine, 2.75 horse-power, which they are making their standard pattern. A special feature of this machine is a very strong triple head. A front band and a rear backpedalling brake are fitted. To this machine is attached a specially-built motor trailer, with double backbone, and a spring attachment.

Another machine, fitted with 2.5 Minerva, is also shown, with tandem attachment, which can be taken on and off in a few minutes, and is well worth inspection. This can be fitted to any of these machines at slight extra cost.

Motor Cycling, 26th November 1902

Reports from the 1903 Stanley Show

One of the chief features in the new Riley Moto Bi is that the inclined engine of old is discarded and the more popular vertical position has been adopted. This is effected by a patented design of attachment. The system is a neat and effective one, and owing to the rigid manner in which the engine is fitted, vibration is reduced to a minimum.

Another special feature is that the engine fitted will be made expressly for the company by the Riley Engine Company, Coventry, embodying narrow crank case in conjunction with bearings of great width, valves of substantial proportions, mechanically-operated on a system recently patented by the Riley Engine Company. The fittings comprise a Longuemare carburetter, two P and R. accumulators with unspillable electrolyte, Bassee-Michel trembler coil. The Riley Moto Bi will he made in the following sizes:- 2.25 h.p. and 3.5 h.p., this latter is specially designed for fore-car, etc., use, and which may be had with either fan or water cooling. Prices range from 42 guineas.

The company are exhibiting two new designs of fore-cars, also side cars. etc., completing a most comprehensive programme for the coming season, and considering the recent development of the fore-carriage as a light motor vehicle the display should prove an interesting one, as the firm are making a special feature of these attachments. This exhibit will be found at the Stanley.

The Motor magazine, 18th November 1903


The Riley Cycle Co.

The motor bicycle is fitted with 3½ h.p. engine, the bore and stroke of which are 86 mm. x 89 mm. The engine is supported on the frame by a substantial fixing of their own design. The carburetter - a Longuemare - is brought close up to the engine in order to reduce the length of the induction valve, and the silencer, which is of large dimensions, is well supported from the frame. Two sets of batteries are fitted and a two-way switch, by which either set of batteries may be used, or both sets together, on occasions when necessary. The application of the front brake breaks the primary circuit. The exhaust valve-lifter lever is mounted on the same handle-bar clip as the rim brake, and is provided with a triager to hold the valve open. A forecarriage is shown, in which the tubes from the front axle converge on the engine, and the steering post is supported at the bottom. as well as in the steering head. In the tank there is a hollow division between the petrol and the lubricating oil compartments. This division is perforated at the bottom, so that in the event of any leakage the oil or petrol will not be able to percolate into the next compartment.
(Stand 126.)

The Motor Cycle, 25th November 1903


The Riley Cycle Co., Coventry (Stand 135).–

This firm's tricars did much during the past season, and next season's models seem likely to behave equally well. The design and workmanship are both excellent. Three machines are on view on this stand, and the third which is fitted with two cylinders is, of course, the one which excites the keenest interest. The single-cylinder machine is fitted with a 4½ h.p. engine, and has two speeds and chain drive. The water circulation system has been particularly well looked after, as a large tank and radiator combined is placed across the front of the machine. A centrifugal pump is used, and is geared direct mi the engine. On either side of the tank two boxes are fitted, one containing the coil and accumulators and the other tools.

Two comfortable footboards are placed on either side of the frame. The foot levers operating the front brake and clutch are of ample size–a point which has not been sufficiently considered by many other makers. A powerful band brake is fitted on to the back wheel, and is operated by means of a lever placed conveniently near the driver's hand. The ordinary type of pump is fixed on to the tank, but it is fitted with a three-way cock, to guide the oil to the engine or to the gear box.

One of the most interesting features on these machines, which is fitted both to the bicycles and tricars, is a switch worked by means of a twisting handle and Bowden wire. This switch in the case of the tricars is fitted on to the lid of the coil box, and works as follows: A plunger is contained in the tube, and when the left handle is twisted works against a spiral spring. When the handle is screwed up this makes firm contact on a plate fixed on to a two-way interrupter. With this device the contact must be absolutely positive, and it, and nearly all the wiring, is enclosed in this box; short circuit should be well nigh impossible. Attention has also been paid to the points of convenience; spring cushions are fitted in both seats, and a very large and efficient silencer is attached to the engine. Two bicycles are also shown, one fitted with a 3½ h.p. engine and the other with a 2¾ h.p. (70 by 80), which only weighs 107 lbs.

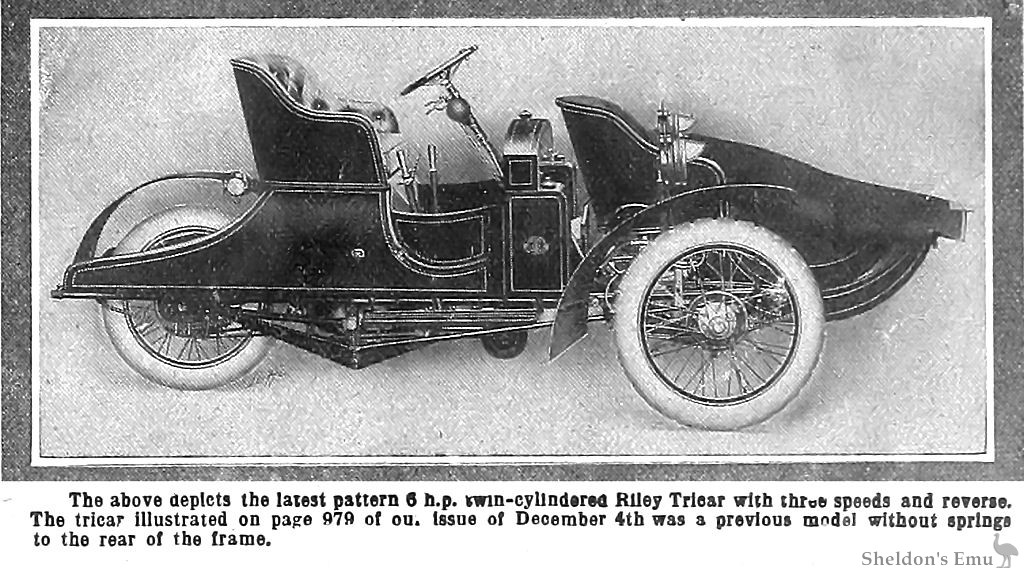

The workmanship on these machines is excellent, and especially in the engines, the cylinder castings being remarkably clean. By far the most attractive feature on Messrs. Riley's stand is their new 6 h.p. tricar. This machine is built on the most improved lines. Its power is derived from a 6 h.p. twin-cylinder engine carried underneath the driver's seat, and fitted with a large sized Longuemare carburetter. The gear box is of the usual Riley pattern, curried just aft the engine. The engine and gears are easily accessible, as the driver's seat can be lifted up and slung right back over the rear wheel. The brake and change-speed gear levers are carried on the off side of the vehicle, as on a car. The machine shown, which was turned out hurriedly, is not properly completed, but we learn that in future both front and back axles will be suspended on springs (in the case of the machine shown only the front axles are sprung). In the next machine to be built, a truss frame will be used. In a word, this tricar is one of the handsomest and most practical in the whole show.

Report on the 1904 Stanley Show, The Motor Cycle, November 28th, page 1166.


Mention was not made in our [Crystal Palace] show report last week of the Riley tricars and 9 h.p. car, as they were late in arrival. A trial car running in the grounds daily made light work of the stiff hills in the vicinity of the Palace.


The Motor Cycle November 1907.

Sources: Graces Guide, The Motor Cycle
