Wanderer 4PS Heeresmodell 1914-1919

Wanderer 4HP Heeresmodel 504cc 1914-1919

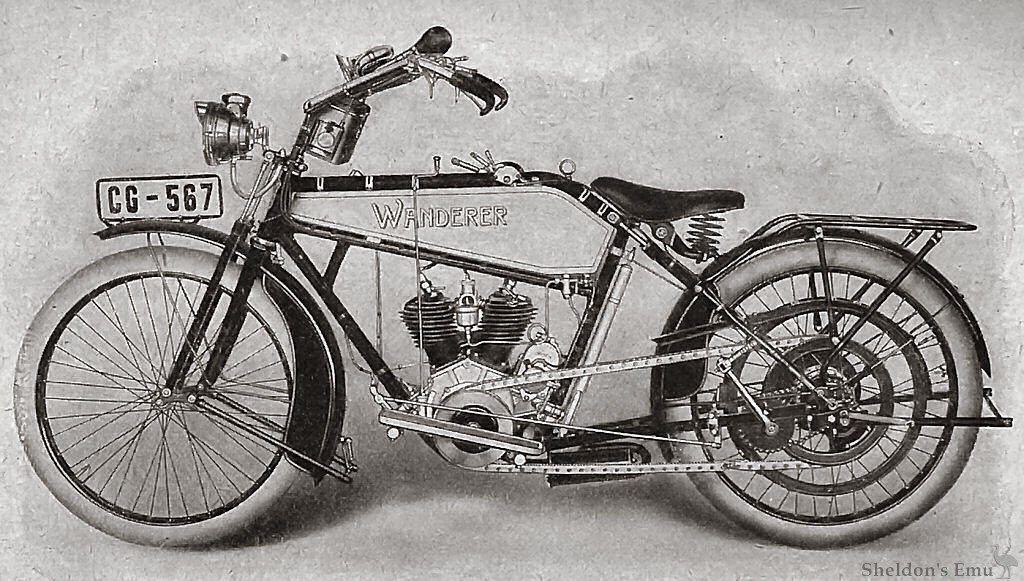

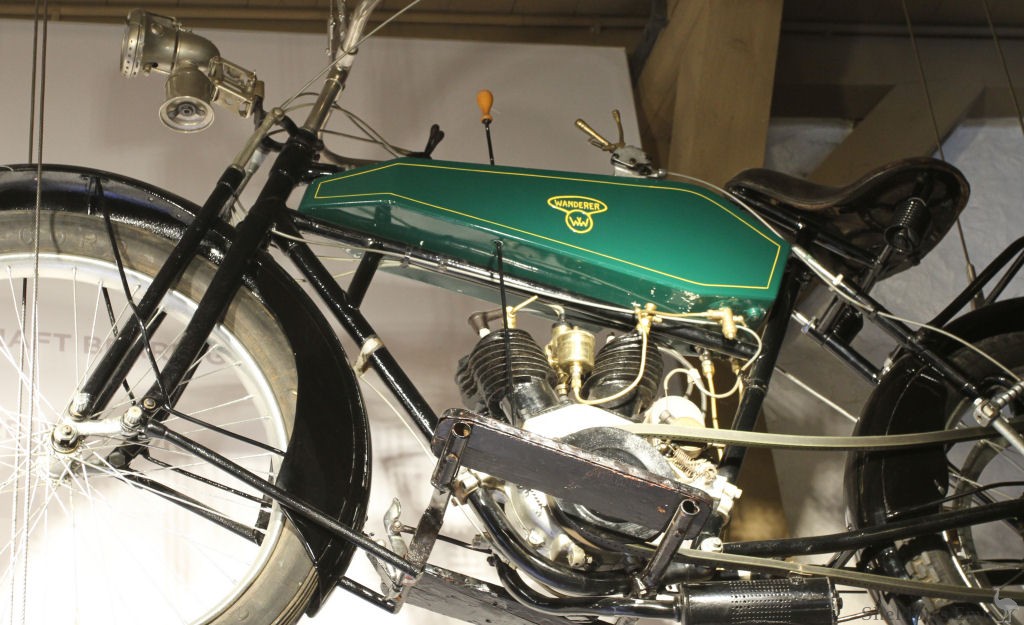

Wanderer 4HP Heeresmodel 504cc

Widely used by the German military during the 1914-1918 war.

There are six levers on the handlebars and four on the tank, all of which must be operated before and during operation.

The machine has suspension front and rear.

Specification as follows:

Engine: twin-cylinder four-stroke
Displacement: 504 cc (65 mm bore × 76 mm stroke)
Power: 6 PS (but listed as 4 PS for tax purposes)
V-belt drive
Starting: Kick starter or pedals, depending on model
Tyres: 26 × 2½ in.
Weight: 90kg
Production: 1914-1919

Source: kradblatt.de/wanderer-heeresmodell-4ps-bj-1915
