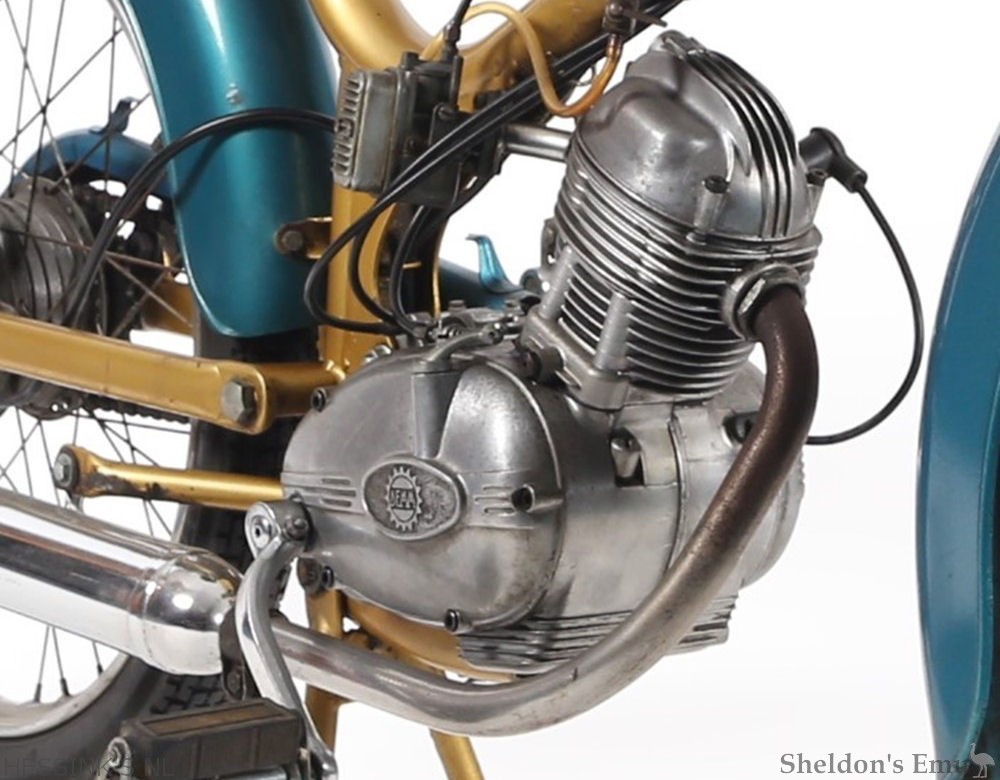

Engine: Single cylinder, four-stroke OHV

Bore & stroke: 38 x 45 mm

Engine Capacity: 48cc

Maximum power: 1.4 h.p. @ 5,200 rpm

Valves per cylinder: 2

Carburettor: Dell'Orto

Cooling system: Air cooled

Throttle: Cable operated

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated, wet with multiple steel discs

Gearbox: 3-Speed gearbox with handlebar control

Throttle: Cable operated

Frame type: Double tubular and pressed steel

Front Suspension: Telescopic fork and shock absorbers

Rear Suspension: Swingarm with hydraulic shock absorbers

Front Brake: Drum

Rear Brake: Drum

Front tyre: 2.00 x 23 in.

Rear tyre: 2.00 x 23 in.

Seat: sprung solo saddle

Fuel tank capacity: approx. 6 litres

Fuel consumption: 1.2 litres per 100 km

Top speed: 40 km/h

Weight: 38 kg

List price in 1964: approx. 400 Dutch Guilders

Source: Hessink's NL
