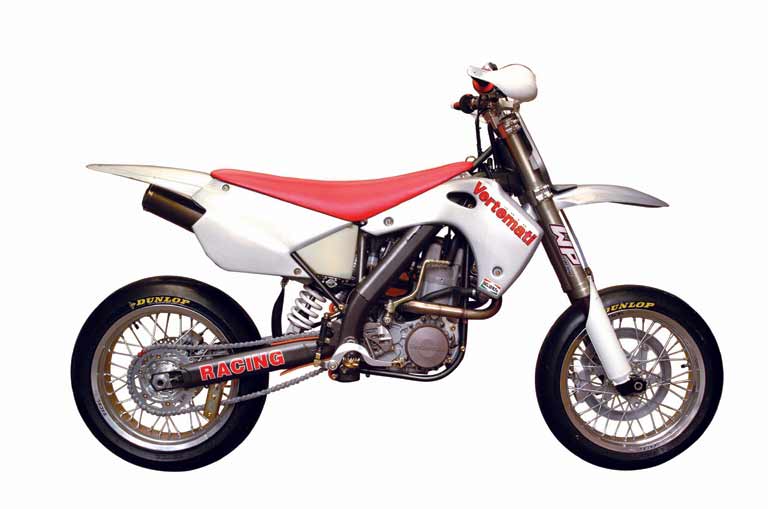

Vertemati SR450 Super Motard 2004

Vertemati SR450

SR450 Factory Race Replica
(Note that the SR450 and SR600 have the same appearance.)

Engine


TYPE Single cylinder, 4-stroke, liquid-cooled
DISPLACEMENT 449 cc
BORE 92 mm
STROKE 67.6 mm
COMPRESSION RATIO 12:1
FUEL unleaded petrol min octane 98
CARBURETOR Dell'Orto PHM 38 ZS1
VALVE TIMING 4 titainium valves SOHC, gear driven
LUBRICATION wet sump, through oil pump with oil filter and by-pass valve engine oil capacity 800cc. Fully Synthetic 10/40 or 15/50

Ignition system


ELECTRONIC DIGITAL SEM

SPARK PLUG NGK CR8 EK

Transmission


GEAR BOX 6 speed removable cassette
CLUTCH in oil 8 steel plates, 7 fibre discs, sealed hydraulic operation
FINAL DRIVE RATIO 42-15 ratio 2.8:1
DRIVE SYSTEM O-ring chain 5/8"x 1/4"
STARTING SYSTEM kick start with auto decompressor
ENGINE DIMENSIONS width 420 mm ; length 320 mm ; width 250 mm ; weight 29 Kg(with liquids)

Chassis


FUEL TANK located under the seat, capacity 8 Ltrs
FRONT SUSPENSION WP USD 48mm Fork, Nitride legs, MXMA Multi adjust, 260 mm wheel travel
REAR SUSPENSION 25 Cr Mo 4 steel swingarm hardened and tempered WP SUSPENSION PDS shock-absorber 290 mm wheel travel
FRONT WHEEL Talon hub, Excel rim size 17"x3.50", tyre size Dunlop KR106 120/60R17"
REAR WHEEL Talon hub, Excel rim size 17"x5.00", tyre size Dunlop KR108 165/55R17"
FRONT BRAKE Beringer 4 piston caliper, floating 310 mm Braking disc
REAR BRAKE Brembo single piston floating caliper, 220 mm Braking disc
DIMENSIONS
  • Length 2115 mm
  • Handlebar width 810 mm
  • Wheelbase 1450 mm
  • Seat height 900 mm
  • Footpegs height 320 mm
  • On track weight (with oil & fuel)108Kg
  • Features


    The Vertemati SR450 Factory Race Replica is based on the machine currently campaigned by Factory pilot Max Manzo & Vertemati's young rising star Jerome Giraudo.

    The SR450 also features the new specially extended chrome moly chassis for a slightly longer wheel base, the result being even better handling (as with the SR600 Factory Rep.)

    The Vertemati turns like nothing else & the combination of light weight, taut frame & top notch WP suspension means a fast steering machine that gives loads of feedback to the rider. The vertemati is a confidence inspiring ride.

    The SR450 produces masses of low down grunt from the gear driven SOHC patented motor & unlike many four stroke singles the power doesn't tail off just when you need it. The hi reving power plant powers all the way though the rev range.

    With some riders moving to the competitive 450 Class. Vertemati have offered a very competitive package with the SR450.
