Torrot Motorcycles and Mopeds
Manufactured by Calle Unicef, 17, Salt, Spain
Website: torrot.com
FB: fb.com/torrot.official
The company was established by Don Luis Iriondo of Vitoria in 1948 and produced, initially, bicycles. In the early 1950s they began building Terrot mopeds and motorcycles under licence using the name Terrot S.A.E.. At the end of the decade the French company was absorbed by Peugeot and the source of components dried up. In response, Don Luis renamed the company Torrot and a new marque was born.
Torrot Models of the 1960s, '70s and '80s include:
1968 Ciclomatic 49cc
1968 Confort 2V 6 3V 49cc
1968 Torrot-Matic 49cc
1968 Torrot-Matic Sp 49cc
1968 Campero 2V & 3V 49cc
1968 Convert 2V & 3V 49cc
1970 Ciclomatic 49.5cc
1970 Rural 2 V 49.5cc
1970 Rekord 3 V 49.5cc
1970 Torrot-Matic 49.5cc
1970 Torrotronic 49.5cc
1972 Mini Reparto 49.5cc
1972 Mini Lujo 49.5cc
1972 Electronico-TT 49.5cc
1972 Electronico-TT Sp 49.5cc
1972 Rekord Sp 49.5cc
1972 Rally Sp 49.5cc
1974 Mini Automatico
1974 Maxi Electronico 49.9cc
1974 Turismo Automatico 49.9cc
1974 Tiburon GS Electronico 49.9cc
1976 Mini 49.9cc
1976 Maxi E 49.9cc
1976 Tiburon 49.9cc
1976 Turismo 49.9cc
1976 Panther 49.9cc
1976 Trial E 49.9cc
1976 Gran Sport 49.9cc
1976 Grand Cross 49cc
1978 Mini 49.9cc
1978 Maxi-E 49.9cc
1978 Turismo 49.9cc
1978 Panther 49.9cc
1978 Grand Cross 4-Vl 49.9cc
1978 Mustang 49.9cc
1978 Trial 49.9cc
1978 Sport 4-V 49.9cc
1978 City Sachs 47cc
1980 Torrot Lujo «Mono» 47cc
1980 Torrot Lujo «Dual» 47cc
1980 TT 50-4V 49cc
1981 City Sachs
1981 City Sachs TT 2V
1981 Rally Sachs 4 V
1981 TT 50 Sachs 4 V 49cc
1981 Cross Sachs
1981 Sport Sachs
1983 Maxi
1983 Super Cross Sachs
1983 Cycloscooter S 50/Sl 50cc
1983 City 2 V TT
1985 City 49cc
1985 Cicloscooter 49 c.c.
(The duplicate capital T - TorroT - was used in advertising)
Manufacture ceased in 1991.

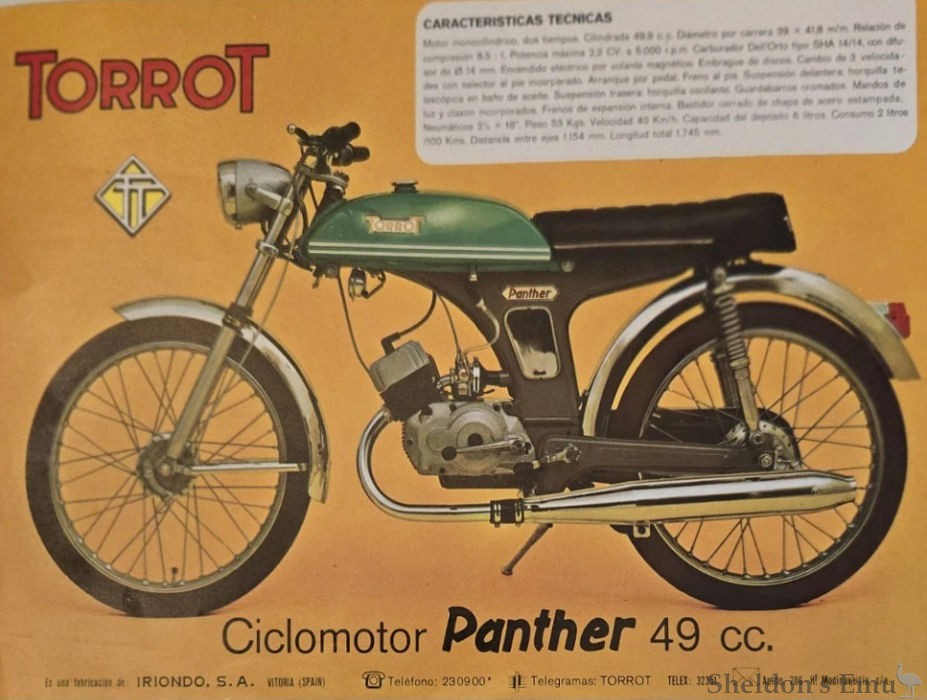

TORROT PANTHER 1976
Engine: Single-cylinder, two-stroke. Displacement: 49.9 cc.
Bore x Stroke: 39 x 41.8 mm. Compression Ratio: 8.5:1. Maximum Power: 2.2 hp at 5,000 rpm.
Carburetor: Dell'Orto, SHA 14/14 type, with 40 mm diameter diffuser.
Electrical Equipment: Magneto ignition.
Clutch: Disc type.
Gearbox: 3-speed, with foot shifter.
Front Suspension: Telescopic fork.
Rear Suspension: Swingarm with chromed shock absorbers.
Brakes: Internal expanding brakes.
Frame: Closed, made of stamped steel sheet.
Tyres:
2.25 x 18".
Weight: 53 kg. Fuel tank capacity:
6 litres. Overall length: 1,745 mm. Wheelbase:
1,154 mm.
Fuel consumption:
2 litres/100 km.
TORROT TRIAL E 1976
Engine: Single-cylinder, two-stroke. Displacement: 49.9 cc.
Bore x Stroke: 39 x 41.8 mm. Compression Ratio: 8.5:1. Maximum Power: 2.2 hp at 5,000 rpm. Carburetor: Dell'Orto, SHA 14/14 type, with a 14 mm diameter diffuser.
Electrical Equipment: Electronic ignition.
Clutch: Two-plate clutch.
Gearbox: 3-speed, foot-operated.
Front Suspension: Telescopic fork.
Rear Suspension: Swingarm.
Brakes: Internal expanding brakes.
Frame: Enclosed, stamped steel sheet. Tyres: 2.50 x 17" (cross). Weight: 54 kilograms. Fuel tank capacity: 6 litres.
Overall length: 1,745 mm. Wheelbase: 1,154 mm. Fuel consumption: 2 litres/100 km.
TORROT GRAN SPORT 1976
Engine: Single-cylinder, two-stroke. Displacement: 49.9 cc.
Bore x Stroke: 38.7 x 42.4 mm. Compression Ratio: 9:1. Maximum Power: 2 hp at 5,000 rpm.
Carburetor: Dell'Orto, SHA 12/12 type.
Electrical System: Magneto ignition.
Clutch: Multi-disc, wet clutch.
Gearbox: 4-speed, foot-operated.
Front Suspension: Telescopic fork with coil springs.
Rear Suspension: Swingarm with coil springs.
Brakes: Internal expanding, 90 mm diameter.
Frame: Tubular double cradle frame. Tyres: 2.25 x 18"
Weight: 55 kilograms. Fuel tank capacity: 5.5 litres. Overall length: 1,800 mm. Wheelbase: 1,180 mm.
Source: Motociclismo via Motoguapa
Torrot Grand Cross 4-VL 1978
Engine: Single-cylinder, two-stroke. Displacement: 49.9 cc. Bore x Stroke: 38.7 x 42 mm. Compression Ratio: 9:1. Maximum Power: 2 hp at 5,500 rpm.
Carburetor: Dell'Orto SHA. Electrical System: Magneto alternator with flywheel.
Clutch: Multi-disc wet clutch. Transmission: Four-speed.
Front Suspension: Hydraulic telescopic fork. Rear Suspension: Swingarm with adjustable hydraulic shock absorbers. Front Brake: Internal expanding caliper, 90 mm diameter. Rear Brake: Internal expanding caliper, 90 mm diameter.
Frame: Double cradle. Tires: Front: 2.25 x 19, trials. Rear: 3.00 x 17, motocross.
Maximum Speed: 40 km/h. Wheelbase: 1,190 mm. Overall length: 1,800 mm.
Source: Motociclismo via motoguapa.com
The firm was re-established as Torrot Electric in 2012, and among their first new machines was a range of juniors, the Kids 10 in trials, supermotard and enduro versions. 2014 saw the introduction of a folding ebike, and in 2015 an electric scooter, the Muvi, was introduced. During this period there were numerous changes in company structure, and in 2016 the company acquired Gas Gas.
An arrangement with other companies brought about the establishment of Scutum, building a new range of electric motorcycles and scooters under the Silence marque.
2024 models include:
Trial models TR1, TR2.
Motocross models MX1, MX2, MX3
Supermotard models SM1, SM2.
Sources: wikipedia.ca, torrot.com, correspondence, et al.
03-Jan-2021
martijnramboer at gmail.com
Torrot Panther 1974
Hello i bought a torrot Panther and i am looking for spare Parts to to renovate the bike, i cant find any sites Or forums off this bike
Martijn Ramboer
Belguim west flanders
-
As the Torrot used many French components, perhaps try some of the pages listed under French Resources
04-Nov-2020
benb0 at btinternet.com
torrot 4v 1977
hi - im trying to register a torrot 4v here in the uk to enable me to ride on the road. The problem is that I cant prove its year of manufacture
Torrots don't have plates do they - is there any production records available or is there any specialist Torrot people with knowledge that may help me. ( I also have 3v trial and a cross 4v and same will apply to them )
here in the uk we have the nacc moped club and I wonder in Spain if theres a similar organisation that I may contact.
thanks
graham bennett
STOKE-ON-TRENT ENGLAND
08-Sep-2020
mattjordan416 at gmail.com
Torrot 74
I am having s hell of time finding tires to replace the original ones from Spain. I'm in Canada. They are eighteen by two and a quarter. Any ideas or help would be great
Matt
Canada
Tue, 02 Jan 2018
adartin2003 at gmail.com
Torrot turismo 1974 banana seat.
I had a 49.3 cc motor on it and it was used and had foot pegs which was neat. it weighed 180lbs which was a surprise. Starter leaver and kill switch but that was broken. So used the only starter to do that. I was wondering if they still sell them? Mine had a speedometer that went to 60 mph or about 100 kmh. My question is I would like to get one and how much? Today would it cost. Thank you.
Paul Saunders
North Bay Canada
Sun Mar 30 2014
marklister59 at yaho.com
parts manual
torrot turismo
looking for a repair manual for a turismo specifically engine 49cc
canada
Thu Jul 02 2009
poshpatdes<at>hotmail.com
Spares
Torrot Turismo Turismo
Do you know of anyone who can supply Engine Friction Shoes for the
above.
Britain
..........
Thank you for your reply re: Terrot. Spain from 1960 produced
mopeds called Torrot which was originally Terrot in Digeon France from
1901 - 1960. The model I have is a 1973 Torrot Turismo 49cc Vitoria
engine. What I need is the friction shoes for the engine and both
sides change covers.
I appreciate your help in this.
Desmond
............
Several interesting images here:
http://cartelmotor.com/galeria.php?tipo=MOTO&text=Torrot
If you have a query or information about Torrot motorcycles please
contact us
