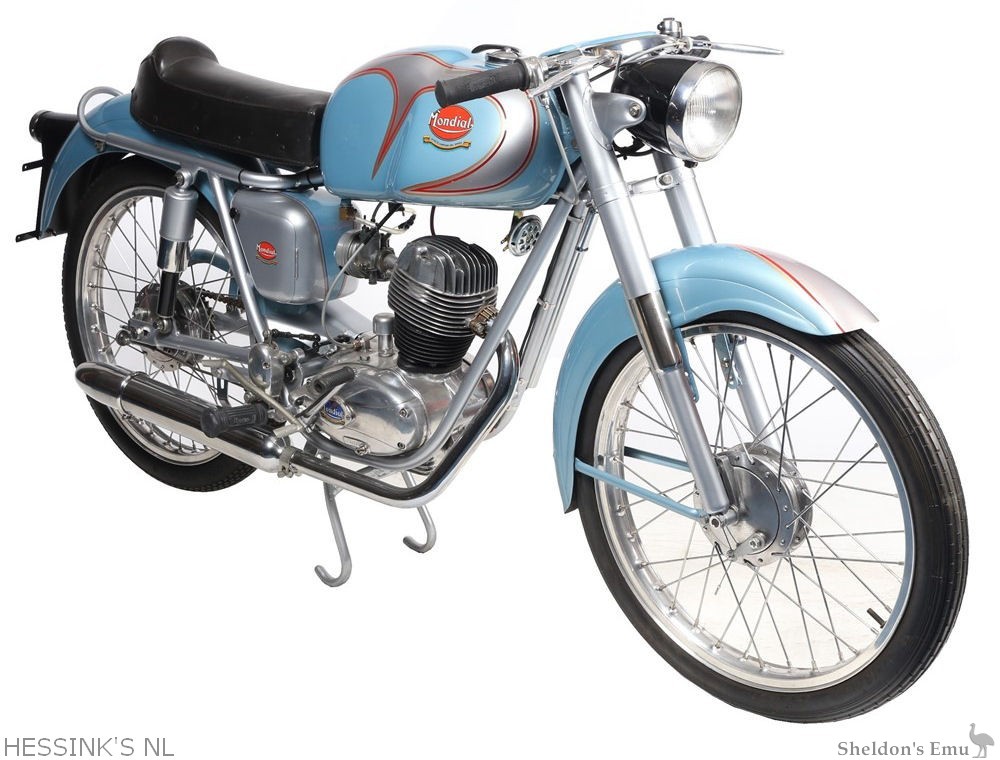

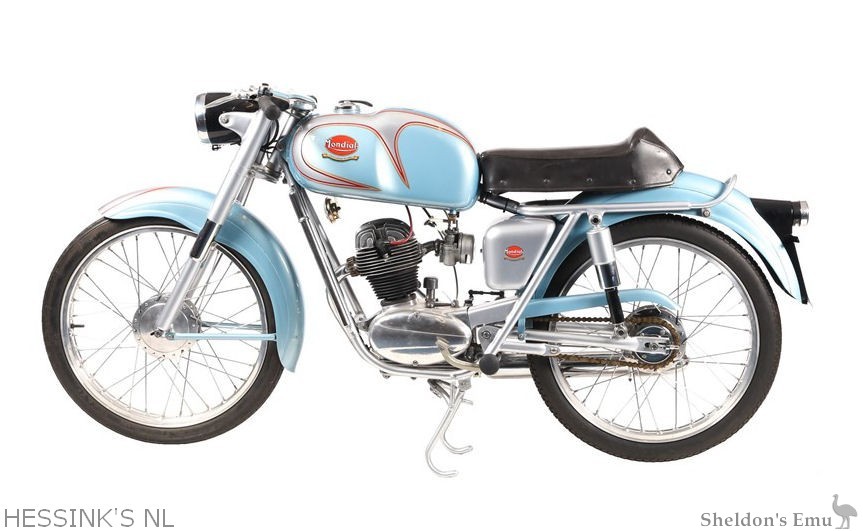

F.B. Mondial 88 Sport 1960

The Mondial 88 Sport 'Modello 58' has a displacement of 86cc and is a 4-speed, OHV four-stroke. Modello 58 relates to the design year.

A four-stroke 75cc was presented in 1957 but did not enter production until 1960, by which time it had been increased to 86cc and was considered very advanced technology. It came in Turismo and Sport versions.

Specification

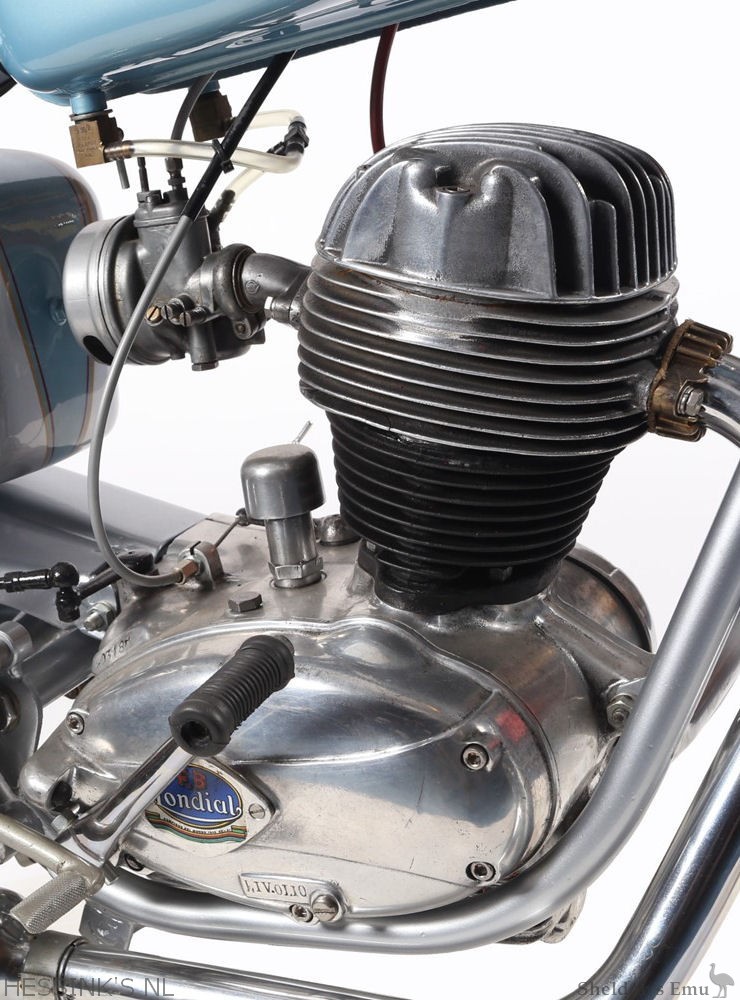

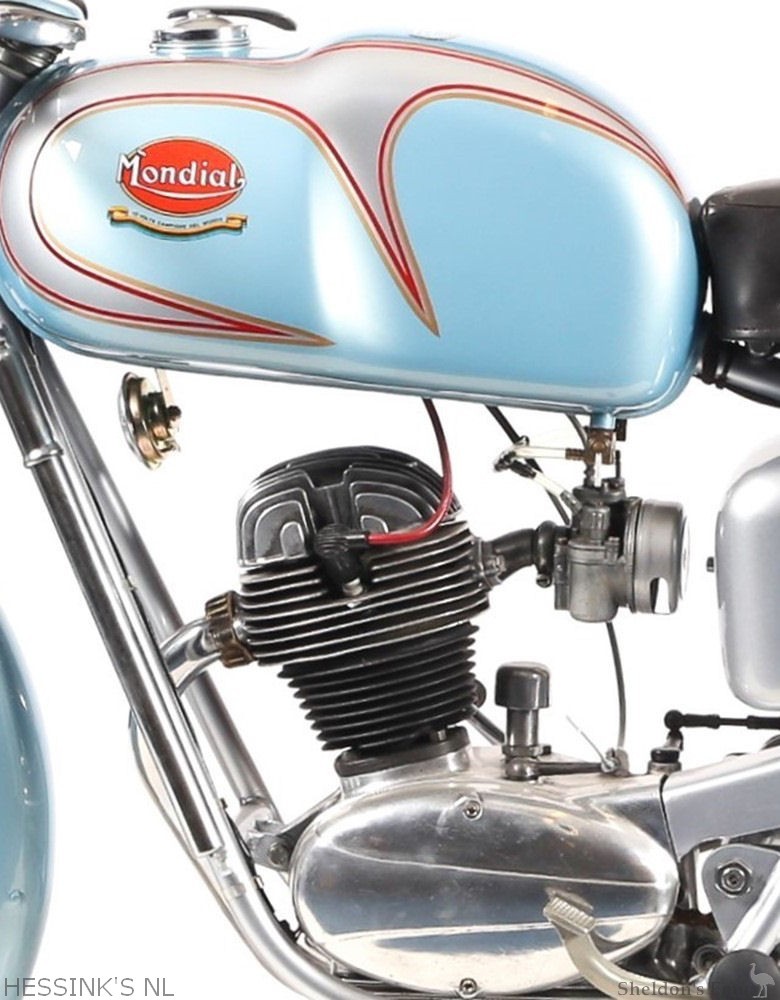

Engine: Single cylinder four-stroke OHV

Bore & stroke:

Compression ratio:

Engine Capacity: 86cc

Maximum power: 4.5 h.p. @ 5,800 rpm

Valves per cylinder: 2

Carburettor: Dell'Orto

Cooling system: Air cooled

Ignition type: Magnet flywheel

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 4-Speed foot-change

Starter: Kick-starter

Throttle: Cable operated

Frame type: Single cradle tubular and pressed-metal.

Front Suspension: Semi-hydraulic telescopic front fork

Rear Suspension: Swinging arm with hydraulic shock absorber

Front Brake: Drum

Rear Brake: Drum

Front tyre: 2.00 x 19 in.

Rear tyre: 2.25 x 19 in.

Seat: Dual seat

Fuel tank capacity: 19 litres

Fuel consumption: 1.5 litre per 100 km

Top speed: 85 km/h (52.8 mph)

Source: Hessink's NL
