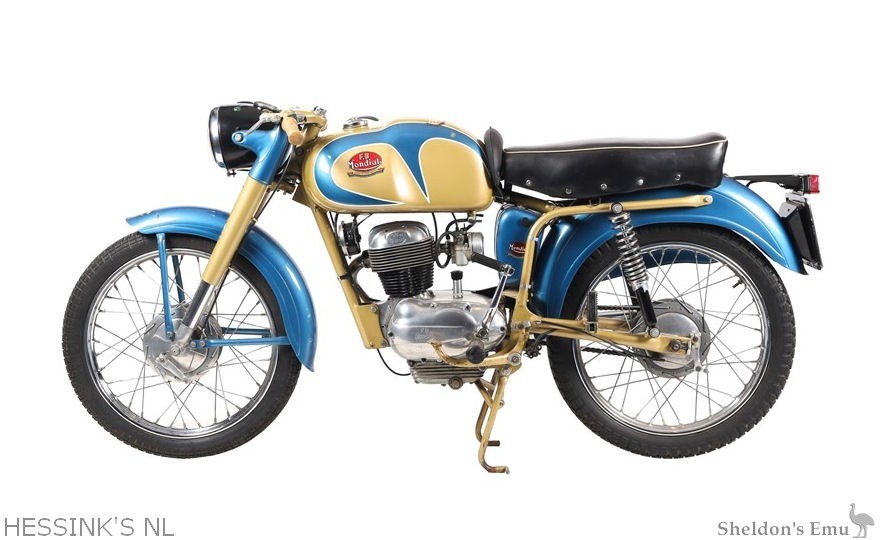

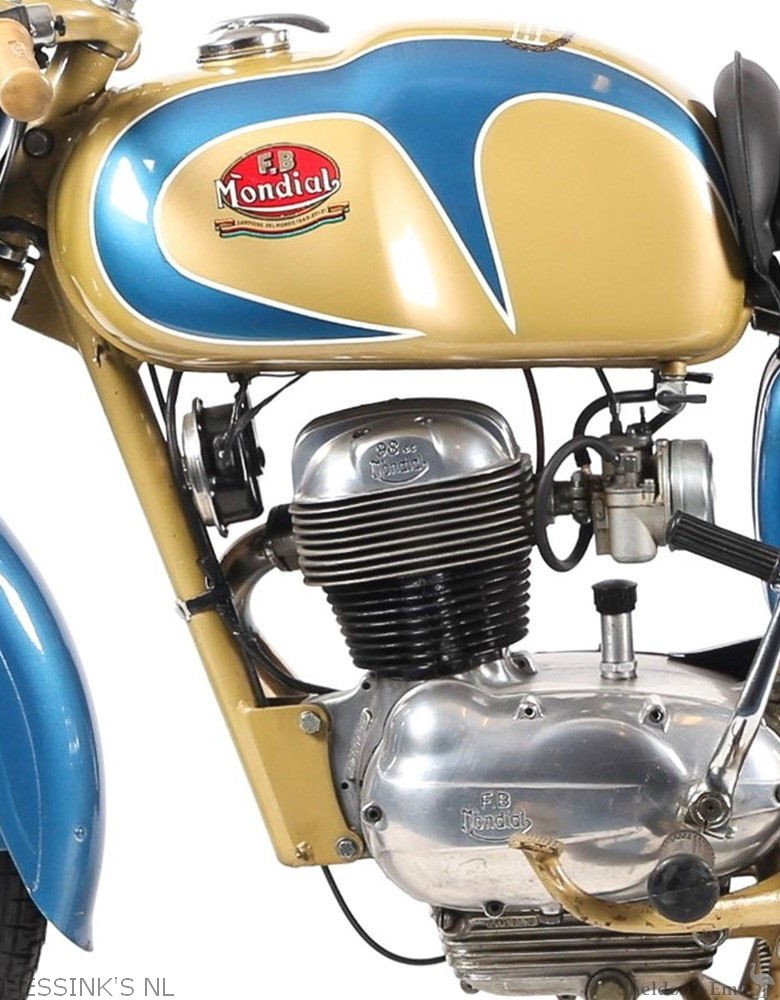

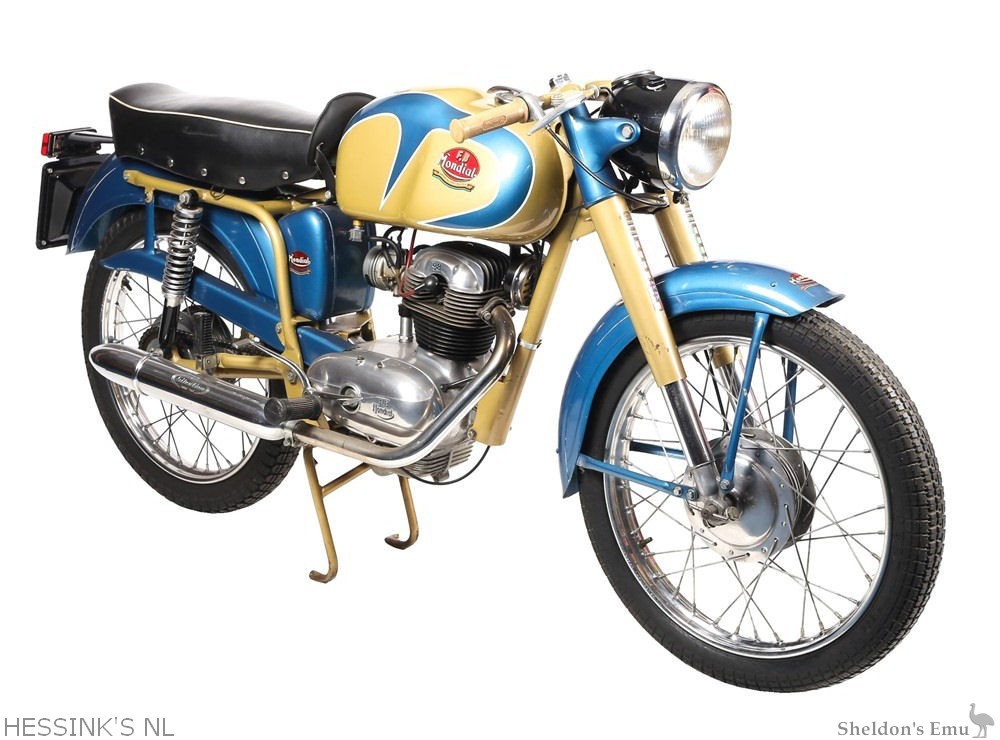

F.B. Mondial 98 Extra 1960

Fewer than a thousand examples of the 98cc OHV four-stroke Mondial 98 Extra were produced between 1960 and 1961. Although listings appear for models Mondial 98, 98 Extra and 98 Sport, all are the same.

Documentation indicates that the chassis number should be preceded by the letter E (Extra), but to date all known specimens do not have this abbreviation. There are few if any advertising brochures and documentation for this model extremely sparse.

The original color was metallic gold and blue.

Specification

Engine: Single cylinder four-stroke OHV

Bore & stroke: 49 x 52 mm

Compression ratio: 9:1

Engine Capacity: 98cc / 6.0 cu in

Maximum power: 6.5 h.p. @ 7,000 rpm

Carburettor: Dell'Orto

Cooling system: Air cooled

Valves per cylinder: 2

Ignition type: Magnet flywheel

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 4-Speed foot-change

Starter: Kick-starter

Throttle: Cable operated

Frame type: Single cradle tubular and pressed steel

Front Suspension: Semi-hydraulic telescopic front fork

Rear Suspension: Mono shock

Front Brake: Drum

Rear Brake: Drum

Front tyre: 2.75 x 19 in.

Rear tyre: 2.75 x 19 in.

Seat: Dual seat

Fuel tank capacity: 13 litre (3.7 gal)

Top speed: 90 km/h (56 mph)

Weight: 75 kg (165 lbs)

Source: Hessink's NL
