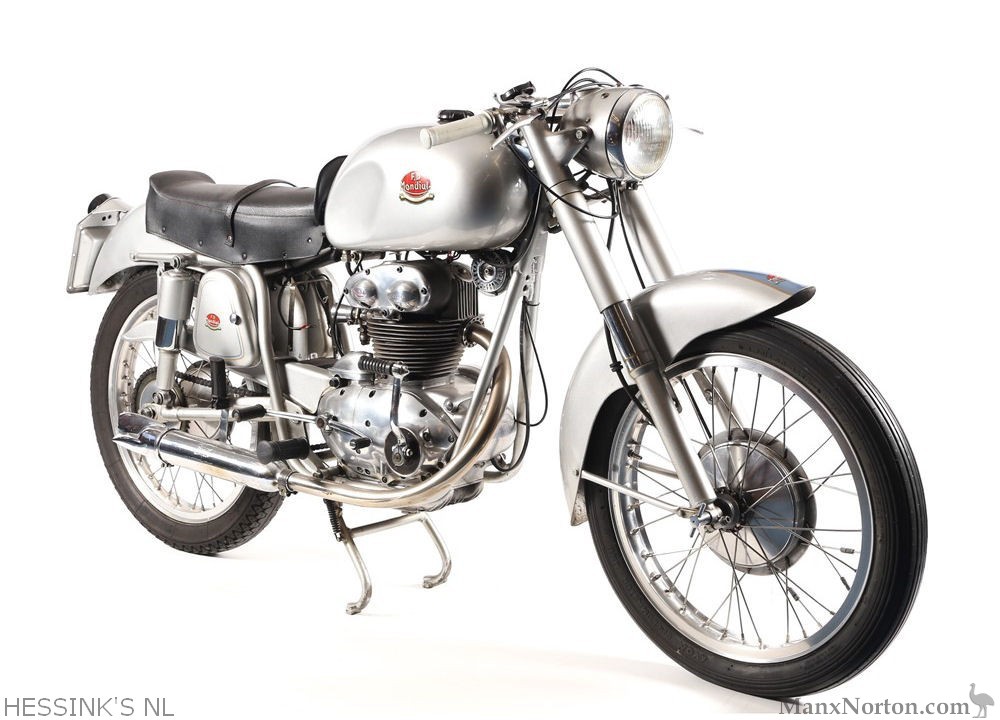

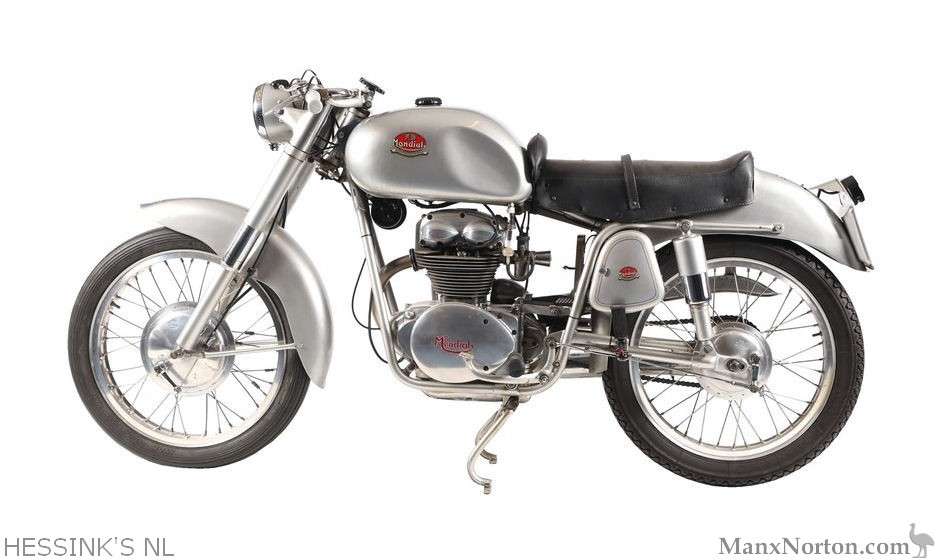

F.B. Mondial Constellation 200 1952

Specification

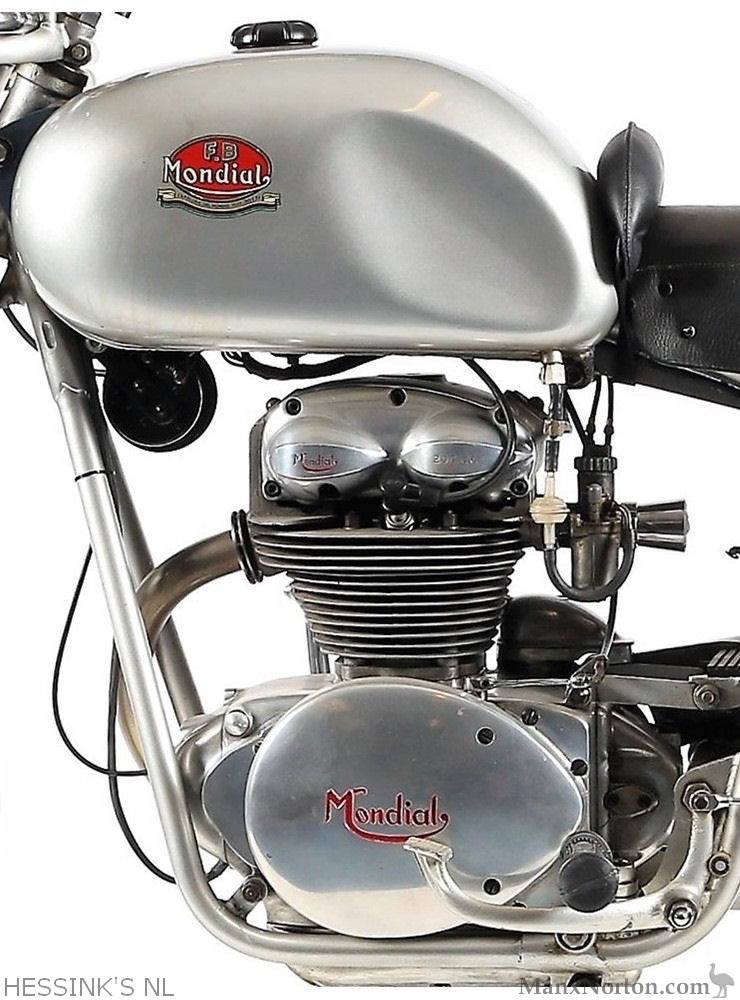

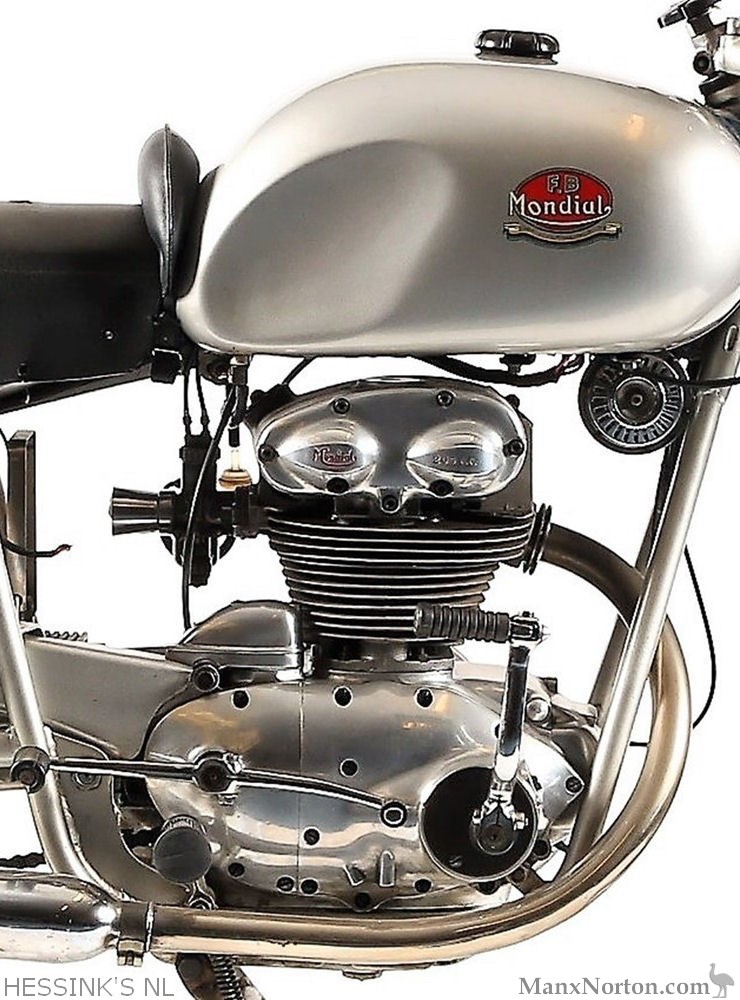

Engine: Single cylinder four-stroke OHV

Bore & stroke: 62 x 66 mm

Compression ratio: 6.0:1

Engine Capacity: 200cc

Maximum power: 12 h.p.

Valves per cylinder: 2

Carburettor: Dell'Orto MB 22 B

Cooling system: Air cooled

Ignition type: Distributor ignition with 45 watt 6v dynamo.

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 4-Speed foot-change

Starter: Kick-starter

Throttle: Cable operated

Frame type: Open cradle tubular and pressed steel

Front Suspension: Telescopic fork and shock absorbers

Rear Suspension: Swingarm with hydraulic shock absorbers

Front Brake: Drum

Rear Brake: Drum

Front Tyre: 2.50 x 19 in.

Rear Tyre: 2.75 x 19 in.

Seat: Dual seat

Fuel consumption: 2.5 litre per 100 km.

Top speed: 110 km/h (68.3 mph)

Source: Hessink's NL
