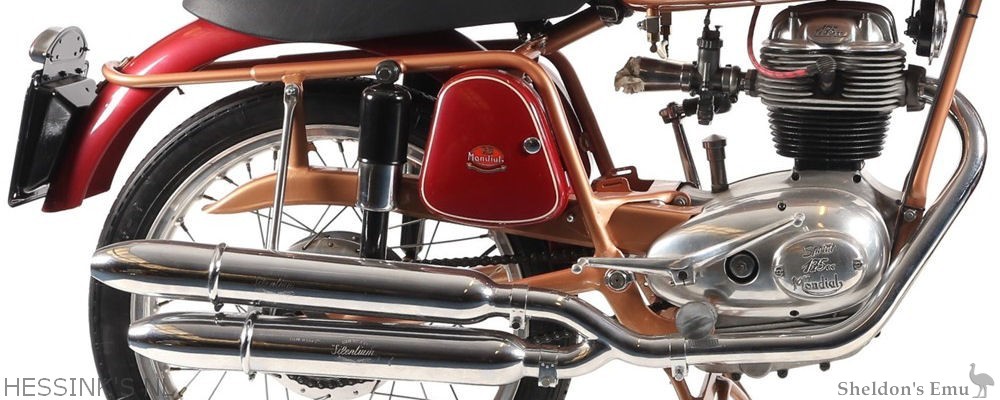

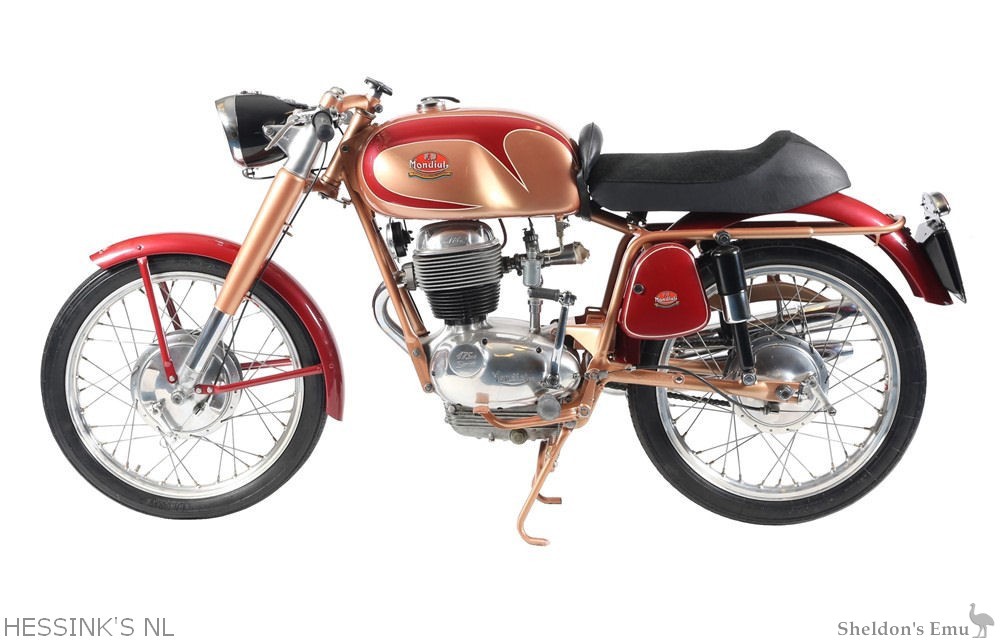

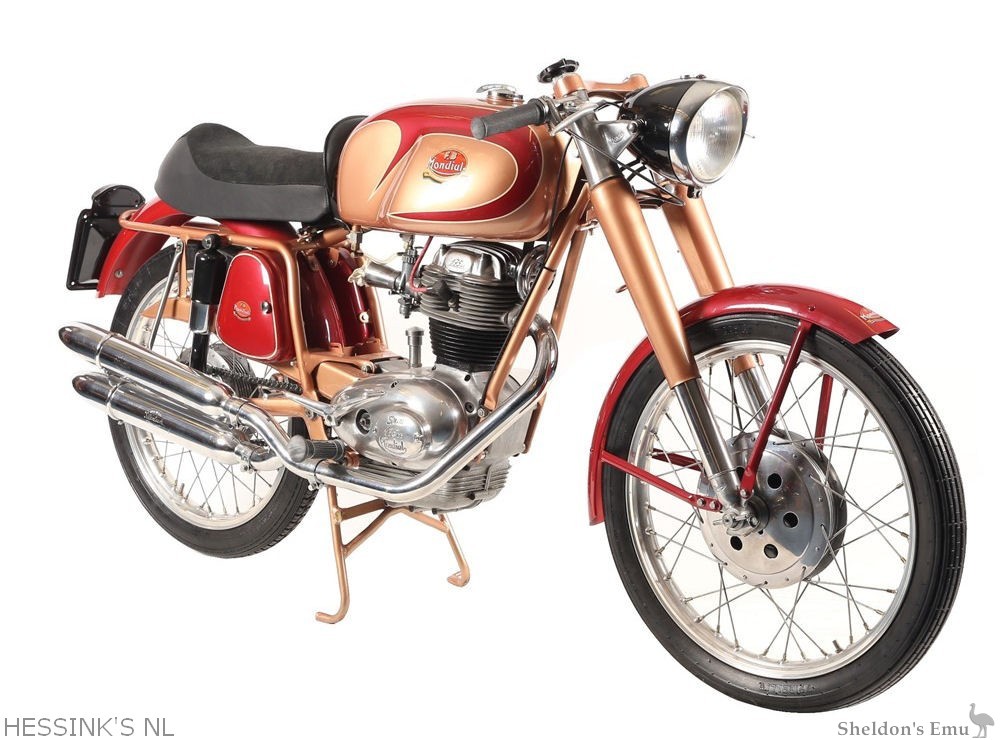

F.B. Mondial 175 Super Sprint 1960

In 1956 a new range was introduced at the Milan Fair featuring a pushrod 175cc engine produced by the Michelini company in Bologna. These motorcycles appeared in the 1957 catalogue.

In 1958 the Sprint with dual mufflers joined the range, and in 1960 the Super Sprint appeared featuring a 5-speed gearbox. Only 40 of these were built.

Specification

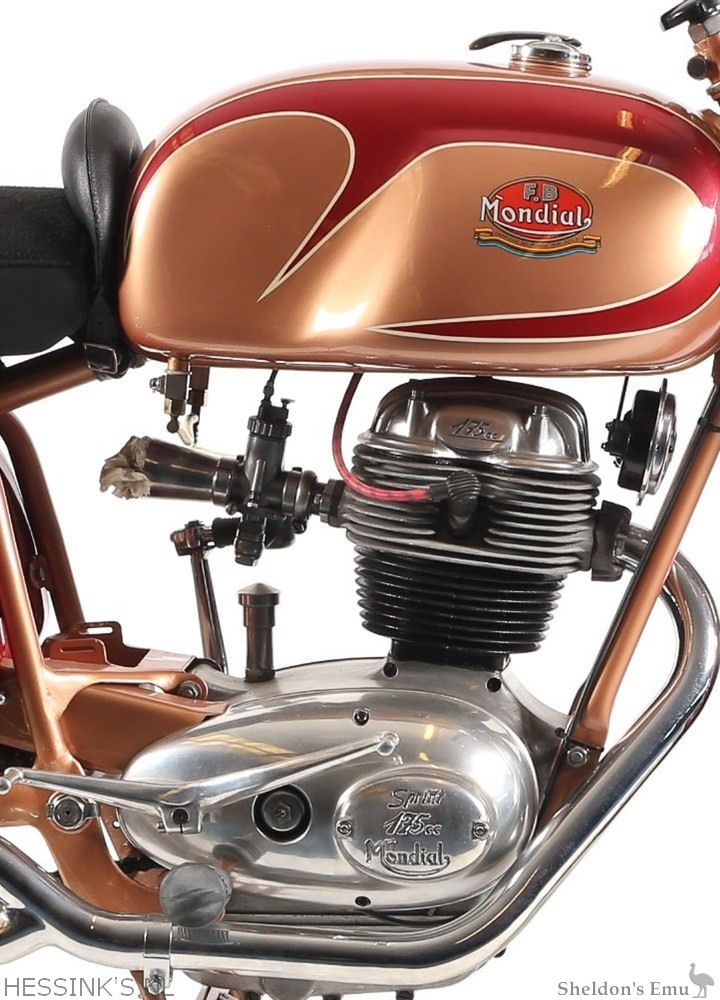

Engine: Single cylinder four-stroke OHV

Bore & stroke: 62 x 57.8 mm

Engine Capacity: 175cc

Maximum power: 14 h.p. @ 8,000 rpm

Valves per cylinder: 2

Carburettor: Dell'Orto

Cooling system: Air cooled

Ignition: Dynamo - ignition coil

Lubrication: Wet sump with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 5-Speed foot-change

Starter: Kick-starter

Throttle: Cable operated

Frame type: Open cradle tubular and pressed steel

Front Suspension: Telescopic fork and shock absorbers

Rear Suspension: Swingarm with hydraulic shock absorbers

Brakes: Expansion central drum brakes

Front Tyre: 2.75 x 19 in.

Rear Tyre: 2.75 x 19 in.

Exhaust: Single header with siamesed mufflers.

Seat: Dual seat with ducktail

Fuel consumption: 3.3 litres per 100 km

Top speed: 130 km/h (80 mph)

Weight: 106 Kg (233 lb)

Total produced: 40 units

Source: Hessink's NL
