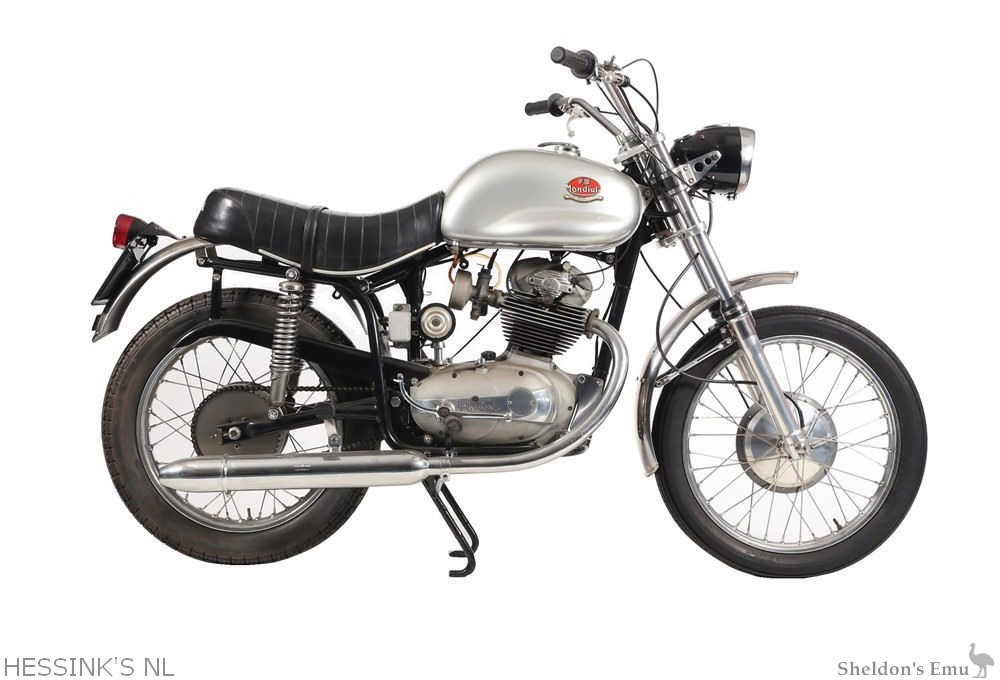

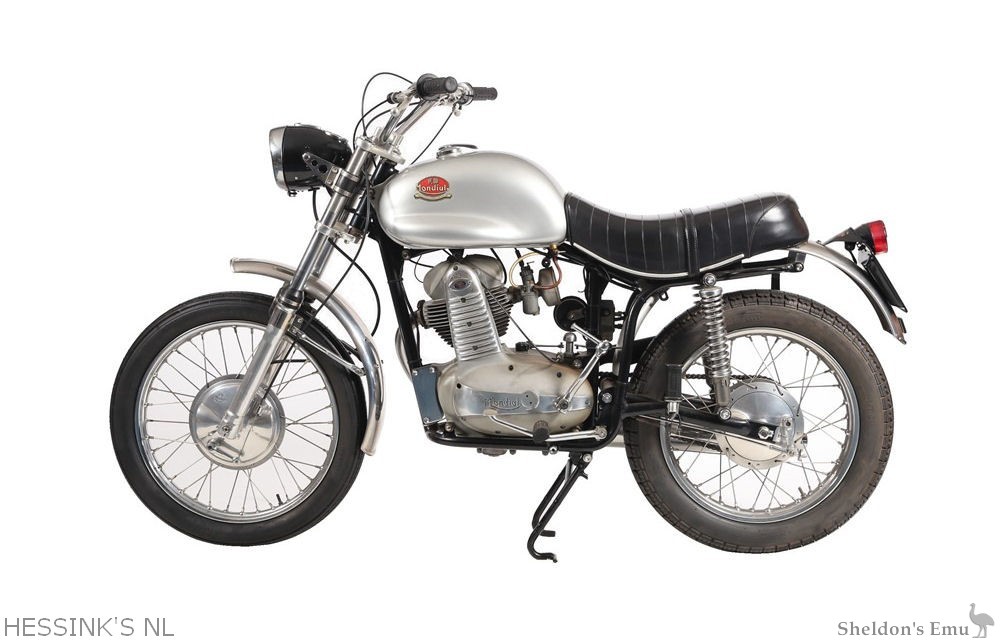

F.B. Mondial 175 Regolarità 1960

As did Gilera and Moto Guzzi, Mondial withdrew from the road-racing World Championship after 1957. Mondial nevertheless wanted to remain active in the sporting field and turned increasingly to off-road competition, principally the International Six Days Trial, as a means of keeping its name in the public eye. In 1958 they entered the ISDT, a series of speed trials over rough terrain, with the Mondial 175 Regolarità. The first event was the Trofeo Reda in Bergamo.

The machine had a stronger forks, a vertical shock absorber with external coil springs in the rear, higher handlebars, raised mudguards and exhausts, knobby tyres and a sturdy saddle.

Two versions appeared in 1959, the F.B. Mondial Regolarità 175 and the Regolarità 235. The machine had a dust filter on the carburettor, and a quickly detachable tank and a folding kick-starter were added. The tyre sizes were enlarged, a reinforced frame and steering head were fitted, and the rear swinging arm was shortened to enhance off-road handling.

Specification

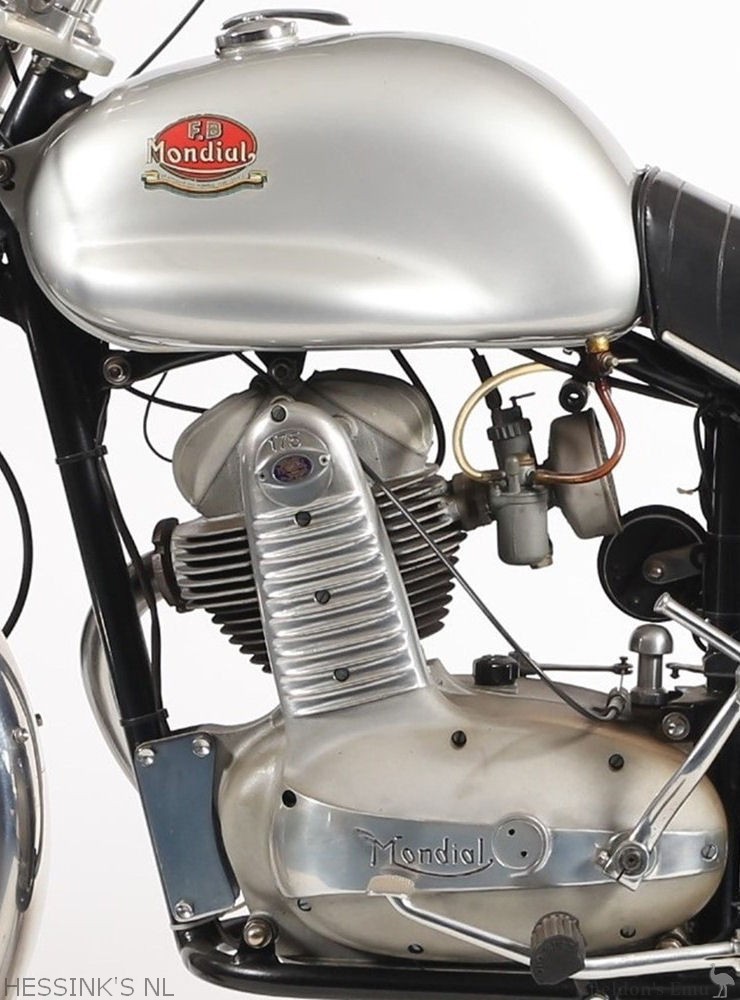

Engine: Single cylinder four-stroke OHV

Bore & stroke: 65 x 54.5 mm

Compression ratio: 6.5:1

Engine Capacity: 175cc

Maximum power: 13 h.p. @ 7,000 rpm

Valves per cylinder: 2

Carburettor: Dell'Orto, diam. 25 mm

Cooling system: Air cooled

Lubrication: Wet sump forced circulation with mechanical gear pump

Transmission: Gear primary, chain final

Clutch: Cable operated with multiple wet disc in oil bath

Gearbox: 4-Speed, foot-change

Starter: Kick-starter

Throttle: Cable operated

Frame type: Tubular and pressed steel

Front Suspension: Telescopic fork and shock absorbers

Rear Suspension: Swingarm with hydraulic shock absorbers

Front Brake: Drum

Rear Brake: Drum

Front Tyre: 2.75 x 19"

Rear Tyre: 2.25 x 18"

Seat: Dual seat

Fuel tank capacity:

Fuel consumption: 2.5 litres per 100 Km.

Top speed: approx. 105 km/h

Source: Hessink's NL
