Runabouts at the 1922 Olympia Show

NOVEMBER 30th, 1922. Page 871
The Olympia Show.

RUNABOUTS AT OLYMPIA.

Six Machines which may be regarded as Substitutes for the Sidecar Outfits and Two Solo Machines on Similar Lines. Harper-1922-Header-Oly

HARPER RUNABOUT. (122.)

Solo Three-wheelers. 2 H.P. Model.

70x70 mm. (269 c.c.); single cyl. two-stroke; petroil lubrication; Zenith carburetter; flywheel mag.; 3-sp. gear; clutch and lever-starter; chain drive; 2¼in. tyres. Price £100.

E. H. Carlisle and Co., Ltd., 188, Deansgate, Manchester.

The Harper runabout stands in a class by itself. Its designers, recognising the demand for an exceptionally light, handy vehicle giving complete weather protection, have succeeded in producing a most, attractive little three-wheeler. Low upkeep and running costs are claimed for it, and, considering the power unit is only of 269 c.c. capacity and the entire weight only 280 lb., the claim may well be justified. A three-speed gear, chain transmission giving direct drive on all speeds, Zenith carburetter, independent foot and hand brakes, starting from the seat by lever, and foot acceleration are details which go to the making of a workmanlike little runabout.

The matter of luggage-carrying has been well considered, the space under the emergency extra seat being ample for light parcels, while provision has been made for the carrying of such things as golf clubs, fishing rods, and tennis rackets. The whole of the mechanism and body is supported on the quarter-elliptic springs, a desirable feature for so small a machine. On the question of actual road performance the little Harper can boast of a good record in the Scottish Six Days Trials. For the makers to have entered such an arduous event with a three-wheeler fitted with so small an engine exemplified fully their faith in the machine, and their temerity was justified.

Tradesman's box carrier models are available.

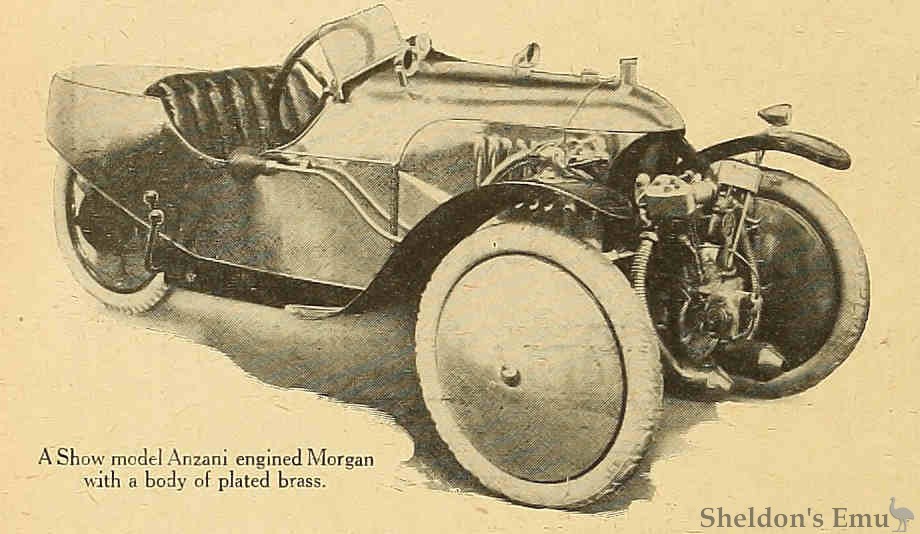

MORGAN. (139.)

Simple Three-wheelers.

8 H.P. Model.

85.5x85 mm. (976 c.c); V-twin cyl. four-stroke; side valves; drip feed lubrication; Amac carb.; gear-driven mag.: 2-sp. gear; clutch and handle-starter; shaft and chain drive; 700X80 mm. tyres. Price £128.

The Morgan Motor Co., Malvern Link.

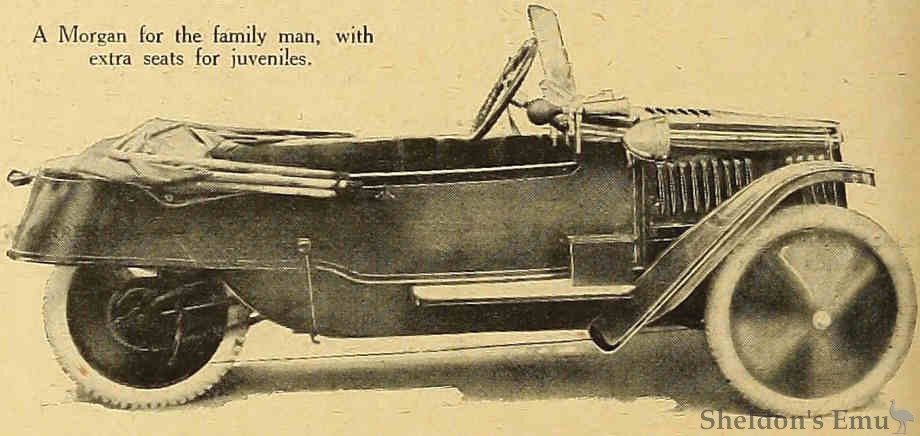

The range of Morgan models is wide enough to meet the requirements of all classes of three-wheeler enthusiasts. For £128 there is offered the standard model fitted with either an air-cooled J.A.P. or Blackburne engine, whilst for £30 more the family Morgan can be had, which will accommodate two extra passengers in the rear seats. This model specially attracts the family man, for the accommodation provided is far more commodious than might be imagined on so small a chassis. Speed men can be accommodated with the Grand Prix model at the reduced price of £160, and at these figures full equipment is, of course, included. One of the most interesting exhibits on the stand is the chassis so familiar to many and still fascinating in its admirable simplicity. No change of design is made this year, and, indeed, judging by the continued success of the Morgan, alike in the hands of private owners and in trials, little change is needed.

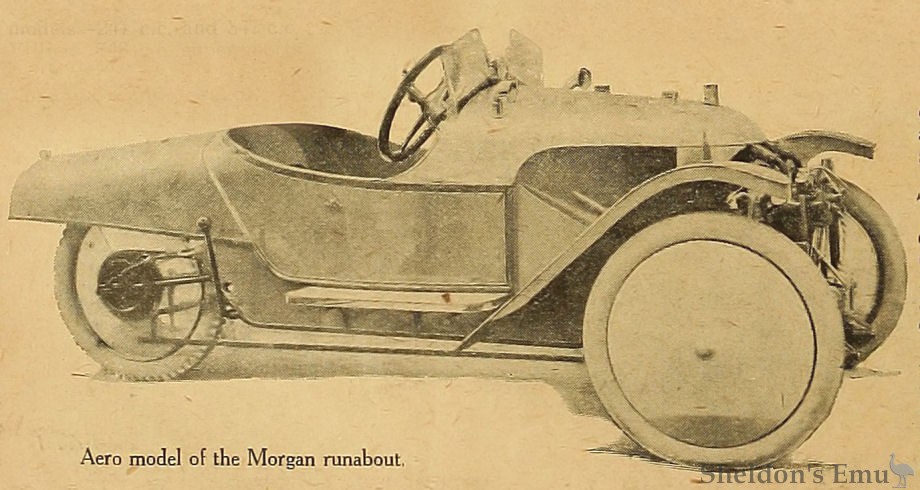

A model known as the Aero is another attractive exhibit, the body being polished aluminium. It draws universal attention by its various little fitments. The radiator and tank are nickel-plated, and the general design and colour scheme are sufficiently noticeable to lure the least impressionable passer-by. The price of this model is £200.


NOVEMBER 30th, 1922. Page 872
Runabouts at Olympia

T.B. (57.)

60 m.p.h. Three-wheeler.

8 H.P. Model.

85.5x85 mm. (976 c.c); V twin cyl. four-stroke; side-by-side valves; drip feed lubrication; Binks carburetter; chain-drive magneto; 3-sp. gear; clutch and band-starter; " shaft drive; 700x80 mm. tyres. Price £155.

Thompson Bros. (Bilston), Ltd., Bradley Eng. Works, Bilston.

The essential feature of any three-wheeler is its chassis design, this point having more bearing on the success of the vehicle than any other. In the T.B. chassis every possible weakness has been closely studied, and the result is a sound and satisfactory design. Rear springing is by semi-elliptical springs mounted on the cantilever principle, the front being of the quarter-elliptic type. All three wheels are interchangeable, the spare wheel being carried on the off side of the body. A big improvement, too, has been effected by the introduction of a ratchet brake acting on an external contracting band instead of the internal expanding type. In general appearance the T.B. is good, and there is a cleanness and finish about all the models which, adds distinction to a pleasing range. At £155 the standard air-cooled T.B. is an attractive proposition, while for an additional £10 a water-cooled engine can be fitted, as well as several refinements in detail. T.B. three-wheelers have done remarkably well in competitions, and those who favour a sports model can obtain one with the guarantee of 50 m.p.h. Its price is £175. Family men are also catered for with a model having a type of body known in the car world as the "clover leaf"; on the T.B. this arrangement gives accommodation for a child between and slightly behind the two normal occupants.

L.S.D. (169.)

Sturdy Runabouts.

8 H.P. Model.

85.5x85 mm. (976 c.c); V twin cyl. four-stroke; side valves; drip feed lubrication; Amac carb.; bevel-driven mag.; 2-sp. gear and reverse; clutch, and kick-starter; shaft and chain drive; 26x3in. tyres. Price £145 19s.

Sykes and Sugden, Ltd., Linthwaite, Huddersfield.

Sturdy construction is immediately noticeable in this three-wheeler. Its designers have succeeded in producing a machine that will stand hard wear over rough country. The main frame of the vehicle is composed of angle steel welded together and stiffened by deep oak side pieces. Detachable and interchangeable artillery wheels are used, the rear one being instantly removed by simply slackening the spring nuts. Enclosed coil springs are used for the front suspension. AH the models exhibited are exceptionally attractive, but the Popular model, offered at £145 19s. (including hood, screen, horn, and complete acetylene lighting equipment), is obviously excellent value. The family man is catered for in a model which is fitted with dickey seat capable of accommodating two children, and, moreover, the makers claim 60 m.p.g. for this particular machine.

Air-cooled J.A.P. engines are fitted to all the models, the transmission being through a clutch and propeller-shaft to a gear box, and finally by chain. The L.S.D.'s records on the road prove it to be well past the experimental stage.


NOVEMBER 30th, 1922. Page 873
Runabouts at Olympia.

SCOTT SOCIABLE. (168.)

Unconventional but Comfortable.

5/6 H.P. Model.

76.2x63.5 mm. (578 c.c. twin cyl. two-stroke; rotary inlet valve; petroil lubrication; Zenith-Scott carb.; gear-driven mag.; 3-sp. gear: clutch and hand-starter; shaft and spiral bevel drive; 700x80 mm. tyres. Price £176 8s.

Scott Autocar Co., Lidgett Green, Bradford.

Although only placed on the market a few years ago, the Scott Sociable has already found many ardent admirers. Its unorthodox design has now become familiar amongst motor cyclists, and its price of £175 8s., including full equipment, places it in direct competition with the more luxurious sidecars. That it possesses certain advantages over the latter is indisputable, complete protection for the driver and excellent springing being two of its outstanding features. In essentials the little runabout differs but slightly from last year's models, but various detail refinements have been effected, the most important being greater ease of starting. The salient feature of the little vehicle the triangulated chassis has been described many times.

Years of testing have thoroughly proved the 578 c.c. water-cooled two-stroke engine to be of ample power, even on the steep hills amongst which the machine was conceived. As may be imagined, this type of engine in conjunction with the spiral bevel drive goes to the making of a machine particularly quiet and smooth in action. No doubt many newcomers to the pastime will be fascinated by the unquestioned ingenuity of this unconventional design.

NEW HUDSON (142.)

A Car on Three Wheels.

10 H.P. Model.

82x94 mm. (996 c.c.); V twin cyl. four-stroke; overhead inlet valves; drip feed lubrication; Cox-Atmos carb.; Lucas gear-driven Magdyno; 3-sp. gear and reverse; clutch shaft and final chain drive; 700 x 80 mm. tyres. Price £195.

New Hudson, Ltd., Icknield Street, Birmingham.

This finely-finished three-wheeler remains practically the same in specification as last year, with the exception of the body, which has been increased in width by 2½in., and in length by 3in. With this alteration there is now ample room for two adults and a child. A glance at the stripped chassis shows how thoroughly every point has been studied, and, incidentally, how finely finished is every detail of plant, transmission, and springing.

Shaft drive is employed from the water-cooled engine through a, car type gear box, and then by chain to the rear wheel. All three wheels are quickly detachable and interchangeable, a jack being incorporated in the rear of the frame. The front springing is by quarter-elliptic springs, and the steering by rack and pinion. The price of the machine is £195, and although the figure may appear high, the value given in superlative finish of both mechanical parts and body work is as good as any thing in the Show.

XTRA CAR. (47.)

Single, and DoubleSeater Runabouts.

3½ H.P. Model.

79x70 mm. (343 c.c.); single cyl. two-stroke; petroil lubrication; Binks carburetter; flywheel mag.; 2-sp. gear; clutch and lever-starter; chain and friction drive; 26x2½in. tyres. Price, £105.

Xtra Cars, Ltd., 45. London Street, Chertsey, Surrey.

The Xtra Car aims at similar running costs and upkeep to the motor bicycle, and at the same time provides complete weather protection. This year the passenger as well as the solo market has been catered for, the former by the production of a two-seater model fitted with a 976 c.c. J.A.P. engine at a price of £122 17s. A two-seater "runabout," essentially the same, uses the 343 c.c. Villiers engine. The drive is by single chain over from the engine to two friction rollers on a rocking frame. Either roller can be brought into engagement with a drum on the rear wheel. As the rollers have different-sized sprockets and themselves vary in diameter, two speeds are obtained. The rear portion of the frame is suspended on two quarter-elliptic springs, the front suspension being two pairs of transverse flat springs carrying car type steering heads. Rack and pinion steering is adopted.

The two-seater model marks the Xtra Car's, entry into serious competition with the sidecar, and at the same time widens the appeal of a most interesting little vehicle. Undoubtedly the design is marked by individuality. The designer no doubt weighed the pros and cons of engine position and saw advantages in placing the engine at the rear - for it does possess advantages.
