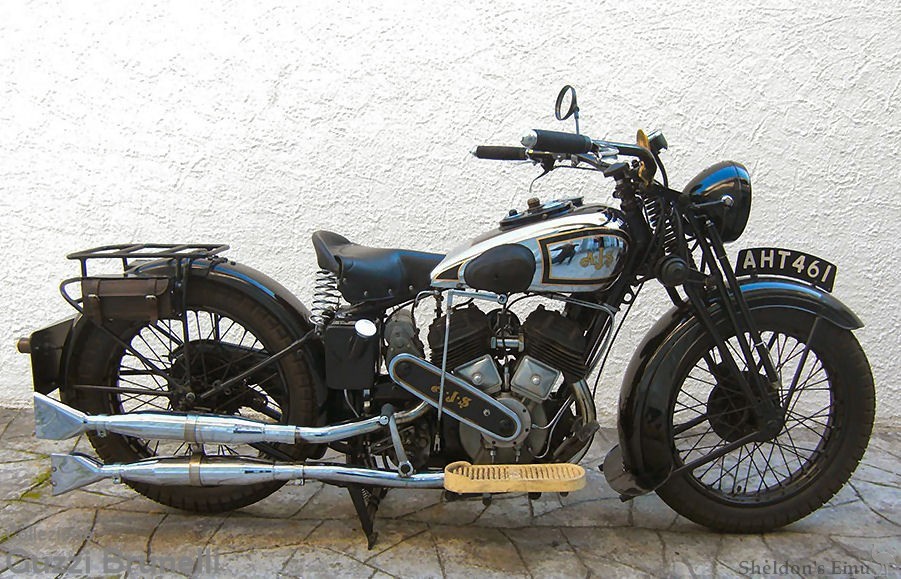

There were two versions of the 990cc Model 2, the standard English model, and the "Export" which had footboards and broader handlebars designed to better cope with conditions in the colonies, as they were rather quaintly termed, including Australia and North America. The machine pictured is an Export model.
The dry-sump sidevalve V-twin has a square b/s of 85.5 x 85.5 mm driving via a Sturmey-Archer gearbox controlled via a series of levers and couplings by a lever mounted on the left side of the tank.
The instrumentation is quite distinctive, being encased in a compartment on top of the fuel tank except for the speedometer which is conventionally located.
MOTORE
Scoppio
TEMPI: 4 CILINDRI: 2 ALESAGGIO: mm 85,5 CORSA: 85,5 CILINDRATA cc: 990 POTENZA CV: 9,9 KW: GIRI/min.: 4000
RAFFREDDAMENTO: ad aria naturale
TESTATA: riportata
SISTEMA ALIMENTAZIONE: a carburatore Amal
DISTRIBUZIONE: punterie
VALVOLE: numero 2 laterali
LUBRIFICAZIONE: pompa di mandata e recupero
ACCENSIONE:a magnete marca Lucas
AVVIAMENTO:a pedivella
FRIZIONE: A dischi multipli
CAMBIO: Marca: AJS n. velocità: 4 separato
TIPO: ad ingranaggi COMANDO: a mano
TRASMISSIONE PRIMARIA (motore-cambio): catena. SECONDARIA (cambio-ruota): catena. DIRETTA (motore-ruota)
TELAIO
PROFILATI A SEZIONE: tubolare
TIPO: a culla chiusa
PASSO: mm. 2.134
STERZO
Diretto
SOSPENSIONI
ANTERIORE: parallelogramma
TIPO MOLLEGGIO: molla centrale
POSTERIORE: non prevista
TIPO MOLLEGGIO:
FRENI
FUNZIONAMENTO: meccanico
FRENO ANTERIORE:
singolo
TIPO: a tamburo
FRENO POSTERIORE:
singolo
TIPO: a tamburo
RUOTE
A raggi
TIPO PNEUMATICI: a
cerchietti
MISURA PNEUMATICI: anteriore: 4,00 x 19
posteriore: 4,00 x 19
IMPIANTO ILLUMINAZIONE
Marca e tipo fanale: Lucas
Illuminazione:
elettrica
SELLERIE
Numero posti sul motoveicolo (escluso eventuale
sidecar): 2
Tipo sella:molle fissate al
telaio
MATERIALE RIVESTIMENTO: cuoio
FINITURE
TRATTAMENTI GALVANICI: cromature verniciatura
COLORAZIONI (codici, ripartizioni colori e
filetti): nero -
Filetti: parafanghi e borsette:non previsti
serbatoi:di stacco oro
