| Engine | ||||||||||||||||||

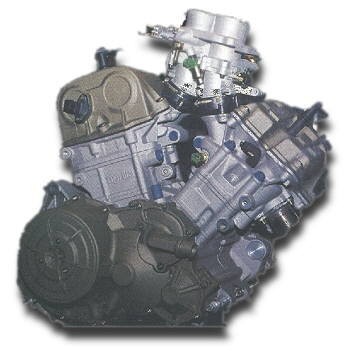

Configuration
|
60° V twin, DOHC, 8 valves, liquid cooled, dual AVDC counterbalancers. | Gearbox | 1° 35/14 (2.5)
2° 28/16 (1.75) 3° 26/19 (1.368) 4° 24/22 (1.091) 5° 22/23 (0.957) 6° 23/27 (0.852) Primary 60/31 (1.935) |
|||||||||||||||
| Bore & Stroke | 97 x 67.5 mm | Clutch | Hydraulic, wet multiplate, PPC vacuum actuated slipper clutch. Metal braided clutch hose. | |||||||||||||||
| Capacity | 997.62cc | Final Drive | Chain; sprockets: 42/17 | |||||||||||||||
| Compression Ratio | 11.4:1 | Lubrication | Dry sump, external stainless steel oiltank, oil radiator, trochoidal scavenge and feed pumps. Circuit capacity 3.5 litres. | |||||||||||||||
| Maximum Power | 128 bhp @ 9250 rpm | Starter | Electric | |||||||||||||||
| Maximum Torque | 10.5 Kgm at 7000 rpm | Charging system | 12v - 400w | |||||||||||||||
| Fuel System | Integrated electronic engine management. Indirect multipoint injection, Ø 51 mm throttle bodies; 95 RON unleaded fuel | Ignition | Electronic digital with two sparkplugs per cylinder, integrated with injection. | |||||||||||||||
| Exhaust | All stainless 2/1, EURO1 standard. | Cooling | Liquid cooled, with three-way-pressurized circuit, double radiator, circuit capacity l 2.6 | |||||||||||||||
| Chassis | ||||||||||||||||||

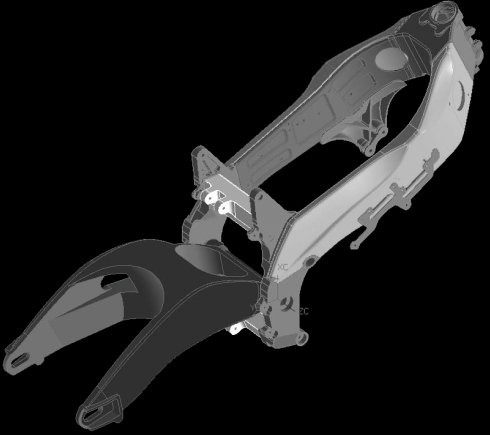

Frame
|
Box type inclined double beam in aluminium alloy with
removable sub-frame. Trail 95 mm (97 mm with 70 profile front tyre) Castor angle 24.5° |
Wheels
|

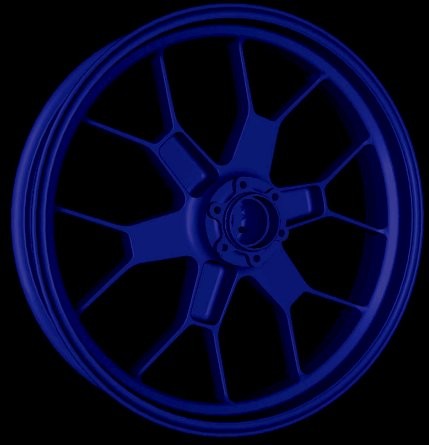

Front
Wheel: 3.50 x 17"

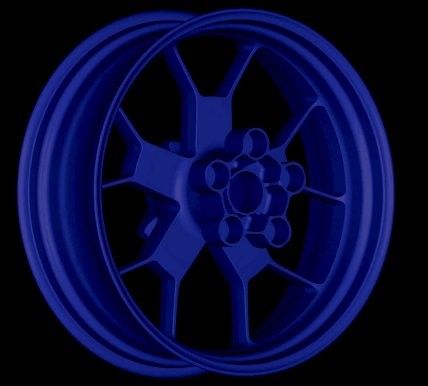

Rear Wheel: 6.00 x 17" |
|||||||||||||||
| Dimensions |
|
Tyres | Front: 120/65 ZR 17 or 120/70 ZR 17
Rear: 180/55 ZR 17 or 190/50 ZR 17 Radial tubeless front & rear. |
|||||||||||||||

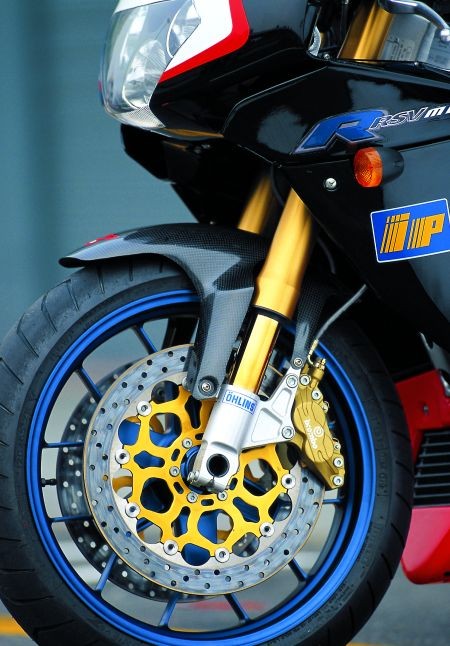

Front Suspension
|
Inverted Ø 43 mm Ohlins racing forks titanium nitridetreatment, 120 mm travel , external adjustment for rebound, compression and preload. | Brakes | Front: Brembo dual floating stainless steel discs Ø 320
mm, 4 piston Oro calipers with differentiated diameter pistons
of Ø 34 mm and 30 mm. SinteredBrake pads.
Rear: Ø 220mm Brembo caliper with 2 pistons Ø 32 mm. Braided metal lines front and rear. |
|||||||||||||||

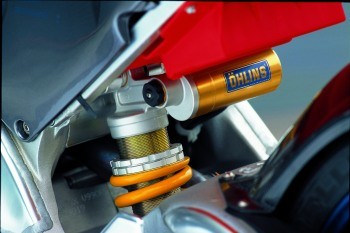

Rear suspension
|
Swingarm in aluminium alloy; progressive link with APS system, Ohlins racing shock-absorber with integrated piggy-back adjustable in compression, rebound, spring preload and length, 135 mm travel. | Fuel Capacity | 20 litres, reserve 4 litres | |||||||||||||||
| Colour Scheme | Standard features | Analogue-digital instruments, steering damper, triple headlights |
