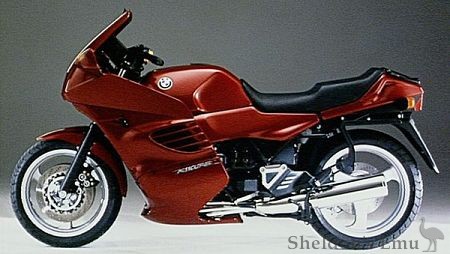

BMW K1100RS 1996 |
 |
| Engine | |||
| Configuration | Flat inline 4 cylinder, four valves per cylinder, DOHC, liquid cooled | Lubrication | |
| Bore & Stroke | 70.5 x 70.0 mm | Ignition | |
| Capacity | 1092 cc | Charging system | 12V 19Ah 700W |
| Compression Ratio | 11.0 : 1 | Starter | |
| Maximum Power | 100 bhp @ 7500
74 kw @ 7500 |
Transmission | Gear driven primary drive
Palloid bevel gears Paralever, 2.81:1 (31/11) (1993 - 2.82:1/2.75:1) |
| Maximum Torque | 79 ft/lb @ 5500
107 nm @ 5500 |
Gearbox | 1st 4.49
2nd 2.96 3rd 2.30 4th 1.88 5th 1.61 |
| Cam Timing | Clutch | 180 mm single plate dry clutch with diaphram spring, cable actuated. | |
| Fuel | Bosch Motronic MA 2.2 (1993 - MA 2.0) digital fuel injection with fuel cut-off when coasting | ||
| Chassis | |||
| Frame | Steering Angle 64 degrees
Front Wheel Trail 95 mm |
Wheels | Front: 3.50 x 17 MT-H2, cast alloy, 3-spoke U-profile
Rear: 4.50 x 18 MT-H2, cast alloy, 3-spoke U-profile |
| Dimensions | Weight: 268 kg wet
Length: 2230 mm Wheelbase: 1565 mm Seatheight: 800mm (31.5 in)
|
Tyres | 120/70 ZR 17
160/60 ZR 18 |
| Front Suspension | 41.7 mm Marzocchi hydraulic telescopic cartridge type forks with progressive spring rate and integral fork stabiliser, 135mm travel. | Brakes
BMW / FAG anti-lock brake system ABS II (1993 - ABS 1) |
Front: Dual Brembo 4-piston calipers with angular-wear compensation
and 305mm stainless steel floating brake discs.
Rear: 285 mm disc |
| Rear suspension | Gas-filled monoshock, 5 spring preload settings, 4.7 inches travel. | Fuel Capacity | 22 litres inc 4l reserve
5.2 US gallons incl 1.3 gal. reserve |
| Colours | Marrakech Red #658
Night Black/Arctic Silver Metallic #711 (SE Model only) Graphite Metallic #704 Palmetto Green Metallic #706 |
Standard Features | Integral sport-touring fairing with full lower protection
ABS II Anti-lock brakes Single key lock system for ignition, steering, fuel cap, seat storage compartment locks Stainless steel exhaust system and catalytic converter Fuel capacity and coolant temperature gauges, digital clock Power accessory socket Polished fork legs (SE models only) |
| Performance | |||
| Top Speed | Over 200kph (135+ mph US) | Fuel Economy | 5.8 litres per 100 km at 120 kph |
| Acceleration | 0- 60 mph 4.3 sec
60 - 140 kph 10.5 sec |
||
| Options | Panniers, city cases, 22 litre top box, pannier & top box liners, tank bag, luggage rack, heated grips, lighted ignition key, alarm system, garage door opener for alarm remote controller, front & rear mud flaps, BMW U-lock, motorcycle cover, additional power accessory socket, LT comfort seat. | ||
|
|
|||
| Model | Engine Number Range | Year | Model Code |
|---|---|---|---|
| K 1100RS | 6495501 - 6496035 | 93 | 0532 |
| K 1100LT | 0300001 - 0300994 | 93 | 0536 |
| K 1100RS | 6496036 - 6496337 | 94 | 0532 |
| K 1100LT | 0300995 - 0301527 | 94 | 0536 |
| K 1100RS | 6496338 - | 95 | 0532 |
| K 1100LT | 03001528 - | 95 | 0536 |
Figures above are based on BMW brochures and US market specifications,
with additional information adapted from the
K1100RS owners group website.
N.B. This page was written for Tom Byrnes Motorcycles of Sydney around 1998.
