Zundapp Motorcycles

Zundapp Models

1920s

Z-2-G 211 cc 1922-1924 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 57 km/h

Z-22 211 cc 1921-1924 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 57 km/h

Z-200 198 cc 1928 60 x 70 mm, two-stroke 4½ h.p. @ 3.300 rpm, 80 km/h

K-211 211 cc 1924-1925 62 x 70 mm, two-stroke 2½ h.p. @ 2.600 rpm, 65 km/h

EM-249 249 cc "Einheitsmodell" 1925-1927 62 x 82.5 mm, two-stroke 4½ h.p. @ 3.100 rpm, 80 km/h. Modelled after the Levis, 23,135 were built.

K-249 249 cc 1924-1925 62 x 82.5 mm, two-stroke 3½ h.p. @ 2.600 rpm, 75 km/h

Z-249 249 cc 1923-1924 62 x 82.5 mm, two-stroke 2¾ h.p. @ 2.600 rpm, 70 km/h

EM-300 300 cc 1928 68 x 82.5 mm, two-stroke 8 h.p. @ 3.000 rpm, 90 km/h

Z-300 298 cc 1928-1929 68 x 82.5 mm, two-stroke 9 h.p. @ 3.200 rpm, 90 km/h

1930s & 1940s

Record-1 198 cc 1930-1931

Record-2 198 cc 1930-1931

DB-125 123 cc 1939-1940

DS-125 123 cc 1939-1940

L-125 123 cc 1939-1940

B-170 169 cc 1932

DB-175 175 cc 1932-1933

B-200 198 cc 1932

DB-200 198 cc 1935-1940/1947-1951

DB-200-W 198 cc 1939-1940

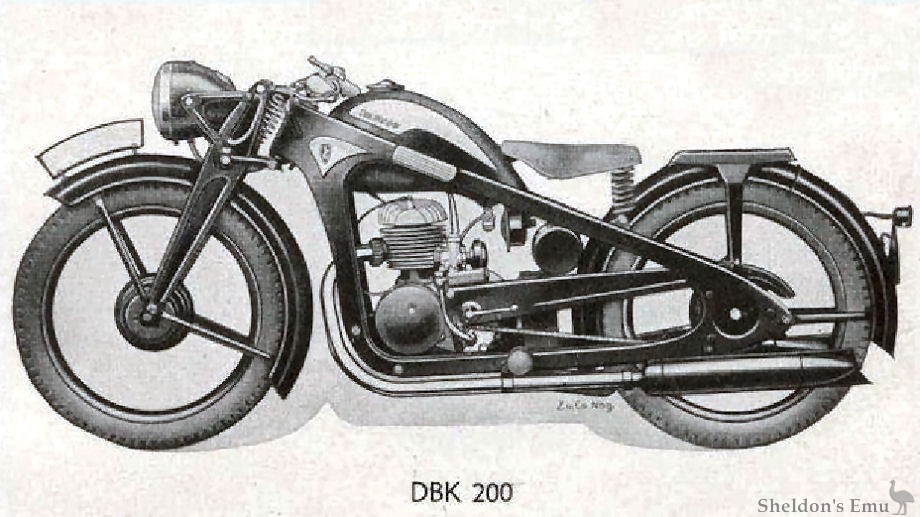

DBK-200 198 cc 1936-1938 198 cc 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 85 km/h

DBL-200 198 cc 1936

DBT-200 198 cc 1935-1940 with speedometer.

DE-200 198 cc 1933-1935 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 80 km/h

DL-200 as above

DK-200 198 cc 1935 60 x 70 mm, two-stroke 7 h.p. @ 3.850 rpm, 80 km/h

K-200 198 cc 1933-1934

KK-200 198 cc 1935-1936

200-S 198 cc 1930-1931

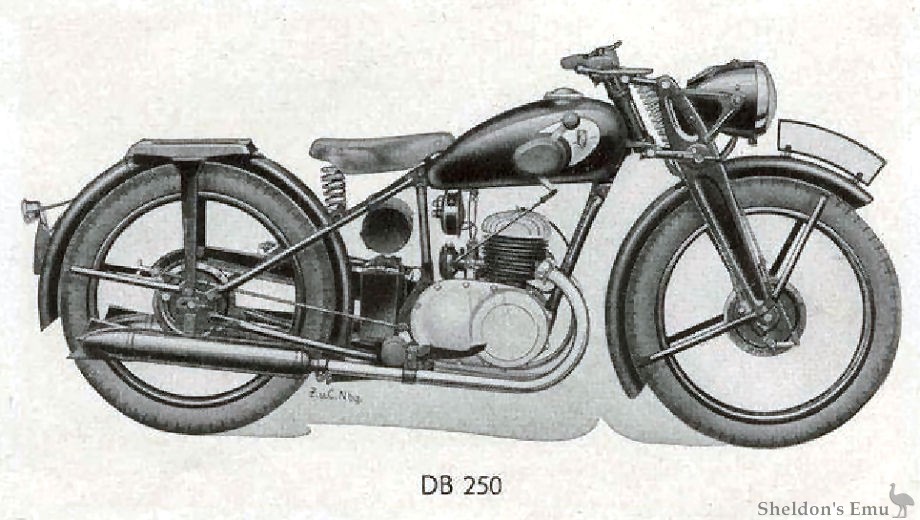

DB-250 247 cc 1937-1940

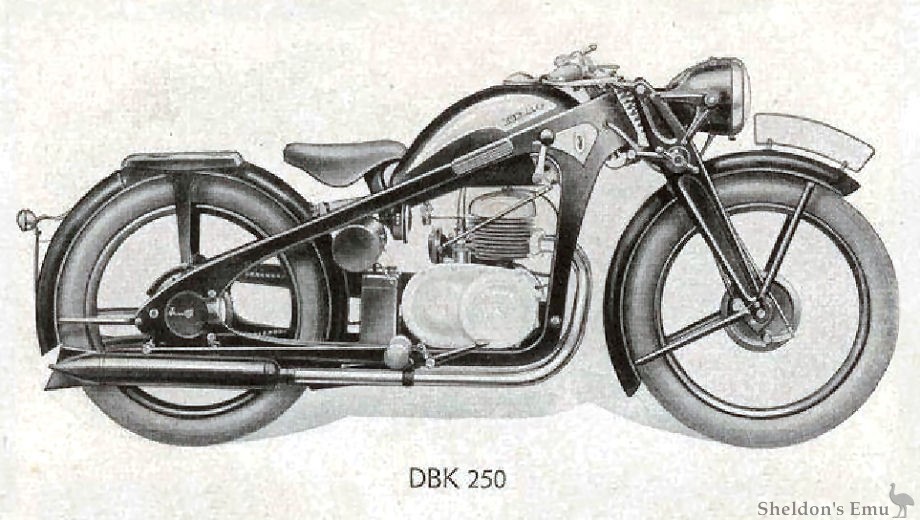

DBK-250 247 cc 1937-1940

S-300 298 cc 1930-1931

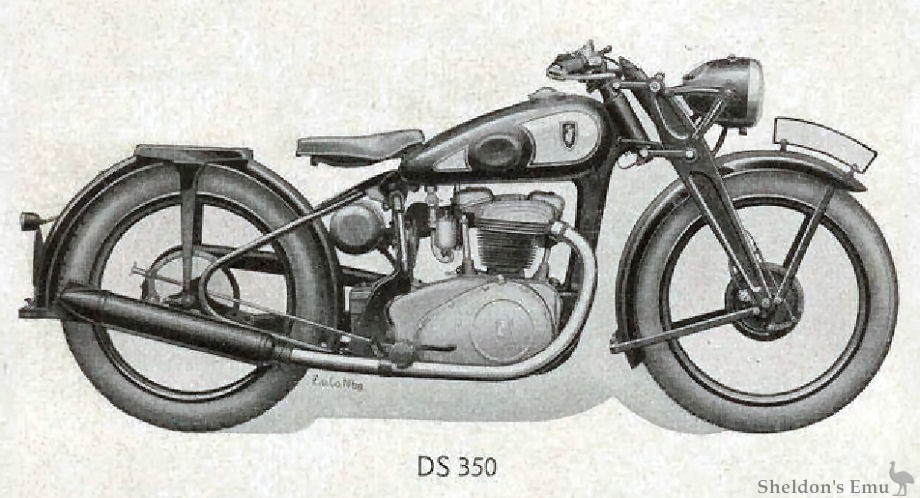

DS-350 346 cc 1937-1940 72 x 85 mm, OHV 17½ h.p. @ 5.200 rpm, 110 km/h

K-350 349 cc 1935-1936

KK-350 349 cc 1936-1937

S-350 345 cc 1932

K-400 398 cc 1933

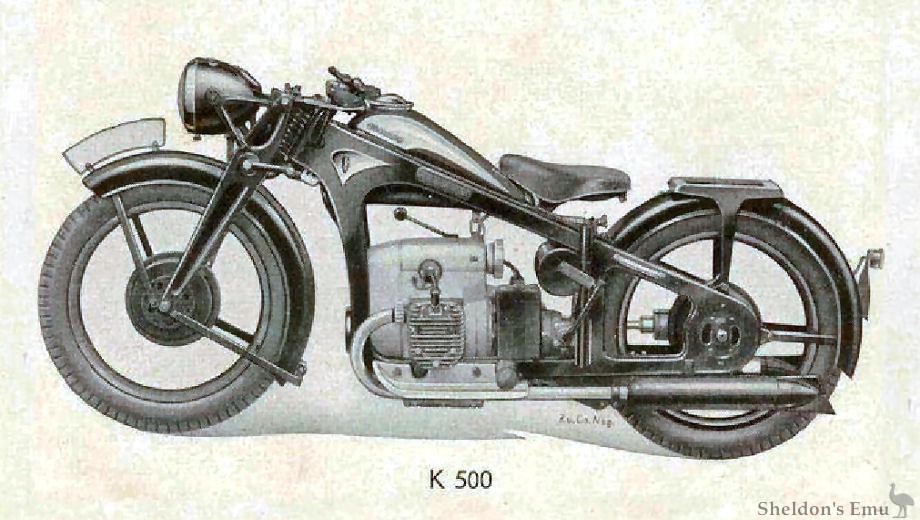

K-500 498 cc 1933-1940 HO twin 69 x 66.6 mm, SV, 13½/16 h.p. @ 4.800 rpm, 105 km/h

K-500-W 498 cc 1939

KKS-500 496 cc 1937-1938 496 cc HO twin 69 x 66.6 mm, SV 16 h.p. @ 4.800 rpm, 140 km/h

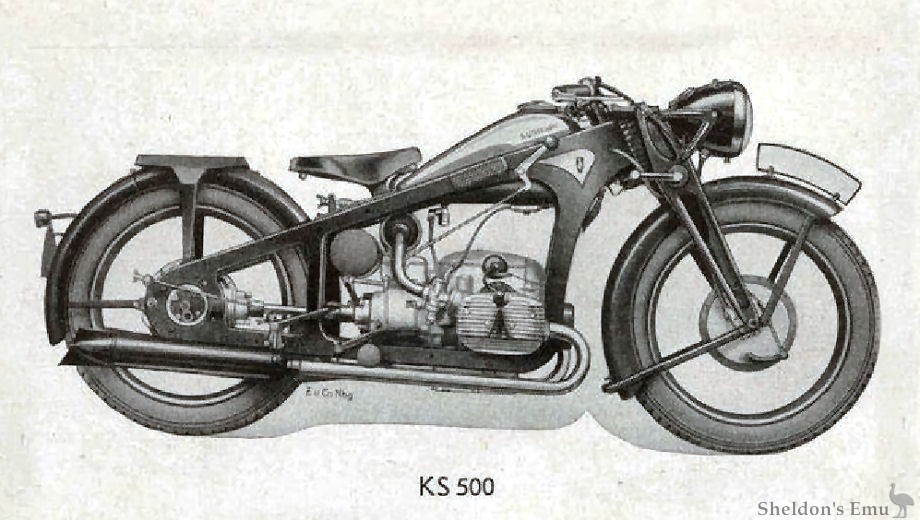

KS-500 496 cc 1936-1939 HO twin 69 x 66.6 mm, SV, 16 h.p. @ 4.800 rpm, 130 km/h

S-500 499 cc 1930-1931

S-500 S 499 cc 1930-1931

K-600 598 cc 1933

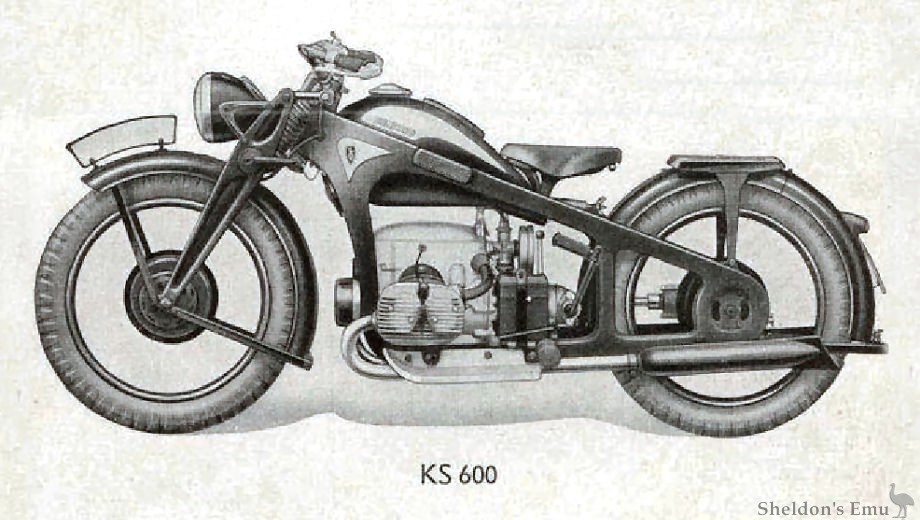

KS-600 597 cc 1935-1941

KS-600 597 cc 1949-1950

KS-600-W 597 cc 1939

N.B. The KS600 has a tool compartment in the fuel tank, which is more bulbous than that of the KS500 sans compartment.

KS-750-W 751 cc 1940-1948 170° flat twin 75 x 85 mm, OHV, 26 h.p. @ 4.000 rpm, 95 km/h

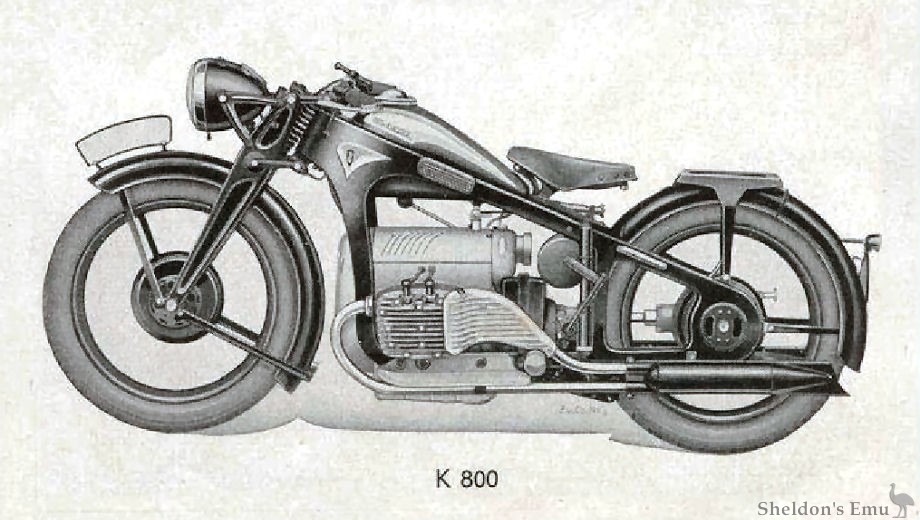

K800 791 cc 1933-1938, HO four, 62 x 66.6 mm, SV, 20/22 h.p. @ 4.300 rpm

K800-W 791 cc 1939

Zundapp K800 1933-1938

1950s
  • 200-S 197 cc 1955-1958
  • DB-201 198 cc 1950-1951
  • 201-S 197 cc 1955-1958
  • DB-202 198 cc 1951-1952
  • DB-203 198 cc 1952-1953
  • DB-204 198 cc 1952-1953
  • DB-205 198 cc 1953-1955
  • DB-234 198 cc 1953-1955
  • B-250 247 cc 1953
  • KS 601 1950-1957 597 cc HO twin 75 x 67.6 mm, OHV, 28 h.p. @ 4.700 rpm, 135 km/h
  • KS 601 SP 1952-1958 597 cc HO twin 75 x 67.6 mm, OHV, 34 h.p. @ 4.700 rpm
  • KS 601 Elastic 1957-1958 597 cc HO twin 75 x 67.6 mm, OHV, 38.8 h.p. @ 6000 rpm
  • Sources: A. Vassiliadis, zundappks601.com, et al. See Zundapp Resources
