Can-Am MX1 Restoration

Classic CanAm
Project Bike
1973/74 MX-1 125
This is the Classic CanAm 125 MX-1. It was built in October 1998. This motorcycle is currently being ridden by Jim Atkins in AHRMA vintage MX competition. The bike is not a true restoration. It has many modifications and improvements. The project is throughly documented in the following sections. Use what you can and leave the rest.

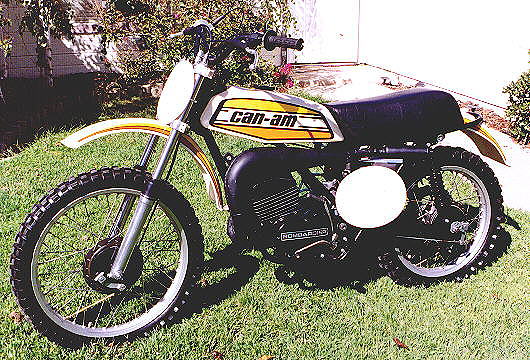

Jims mx1a
The photo above is the completed project. The restoration is documented in the following 5 sections, along with more photos of the bike. Scroll down on this page to see specifications for this motorcycle.
Section 1: Finding the bike

Section 2: The Engine

Section 3: The Chassis

Section 4: Appearance

Section 5: Riding the Bike

Section 6: Race Stats and Post Race Modifications

1973/74 MX-1 125 Specifications
Frame 1974 MX-1 (Model #4843)
Engine (modification) 1973 MX-1 123.7cc (Model #3843) Std. Bore -- mild porting (MX-2 specs).
Piston 2 ring Rotax with booster port
Lubrication Rotax/Mikuni Oil Injection
Carbuetor (modification) Bing 32mm V-84 w/choke
Ignition (modification) Motoplat internal flywheel
Exhaust (modification) 125 CanAm (Qualifier hi-pipe) w/J&R clamp on silencer
Air Box (modification) 125/175 TNT still airbox with 2 stage Unifilter.
Steering head angle (modification) 28 deg. rake fixed w/Timken tapered bearings
Forks Betor/Bombardier 6.5" travel, HD springs, 220cc 20W oil in each leg.
Shocks (modification) Progressive Suspension 13" length w/4.00" wheel travel -- 65lb. springs.
Swingarm (modification) 1974 250 TNT (1.5" longer than stock) w/nylon bushings
Gearing Final drive 13T/56T with RK 520 chain
Graphics Fred Brown Decal kit
Dry weight 210 lbs.
