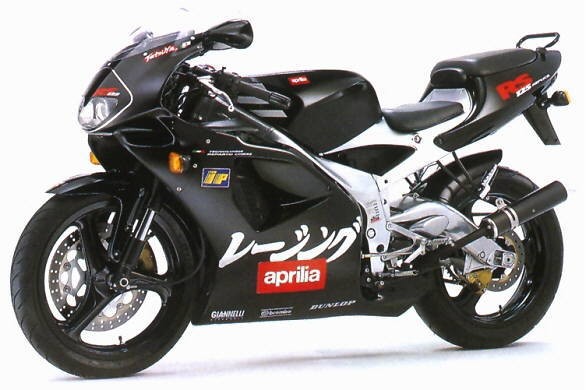

| Aprilia RS125 1998 |  |
| Engine | |||
Configuration
|
Single-cylinder 2-stroke, liquid-cooled. Cylinder in aluminium with Gilnisil coating. | Lubrication | Variable capacity pump |
| Bore & Stroke | 54 x 54.5 mm. | Ignition | electronic |
| Capacity | 124.8 cc | Charging system | 12V-180W |
| Compression Ratio | 12.5 :1 | Starter | |
| Maximum Power | Transmission | ||
| Maximum Torque | Gearbox | 6 speed | |
| Fuel Management | Dellorto VHSB 34LD (Australia)
Dellorto PHBH 28D (Italy) |
Clutch | Wet multiplate |
| Chassis | |||
| Frame | Double, sloping beam in aluminium fusion with thin-walled monocoque and crossed-rib stiffening completely polished. | Wheels | Speedline alloy 3spoke wheels
Front: 3.00 x 17" Rear: 4.00 x 17" |
| Dimensions | Weight: 115 kg. (117kg Aust)
Wheelbase: 1345 mm. Length: 1960 mm. Seat Height: Ground Clearance: |
Tyres | Front: 110 /70 ZR 17
Rear: 150/60 ZR 17 |
| Front Suspension | Upside-down 40mm forks in high tensile steel, travel 120 mm. | Brakes | Front: floating 320mm and 4spot caliper.
Rear: 220 mm disc. |
| Rear suspension | Swinging fork with two asymmetric arms, in aluminium fusion with thin-walled monocoque. Single hydraulic shock absorber, travel 120 mm. | Fuel Capacity | 14 litres (reserve 3 litres) |
