James 1936 Models at the Olympia Show

James 249cc Villiers for 1936

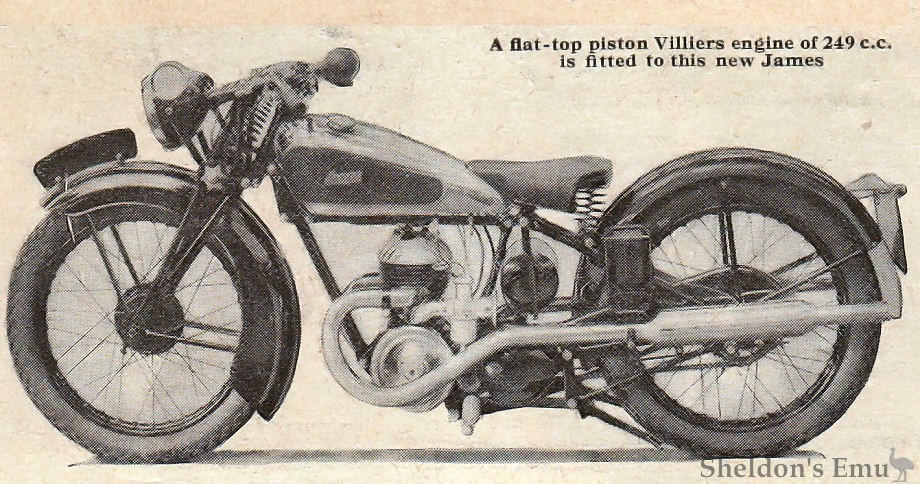

A flat-top piston Villiers engine of 249 c.c. is fitted to this new James

148 c.c. James for 1936

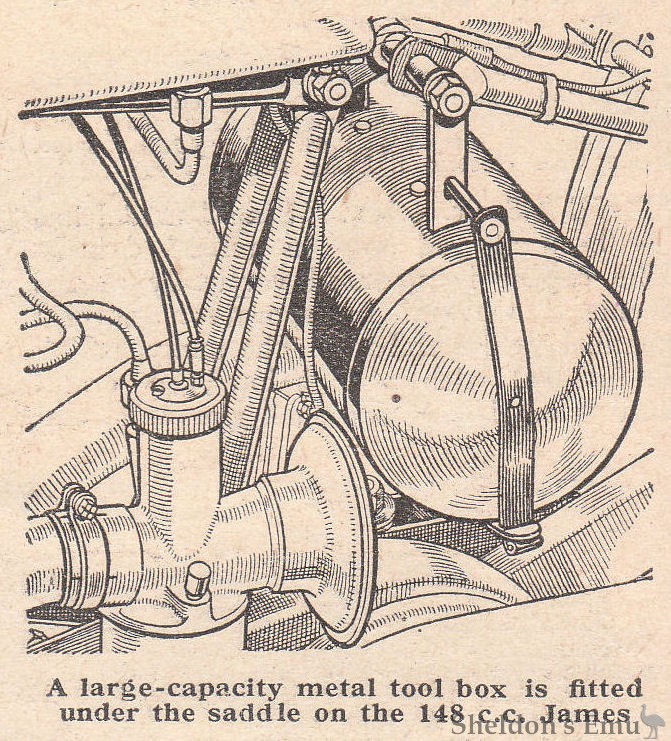

A large-capacity metal tool box is fitted under the saddle on the 148 c.c. James.

JAMES

STAND 42: Five Neat Little Two-strokes—One With a Flat-top Villiers Engine

James Cycle Co., Ltd., Greet, Birmingham.

Model 11,15. 148 c.c. single-cyl. two-stroke James; petroil lubrication; flywheel magneto ignition; all-chain drive; 3-speed gear, with hand control; fuel, 2¼ gals.; 25x3in. tyres.
Price with electric lighting (solo), £24 l0s.

SMALLEST in the range of five James models is the 148 c.c. Model H.15.

It has a two port James two-stroke engine and direct lighting. A single-tube loop frame is employed, and the whole design is very simple and clean.

A large-capacity all-metal tool box is fitted underneath the saddle. The petrol tank is finished in green, and both mudguards have a central rib. A de-luxe edition is also shown, and this is fitted with separate dynamo lighting and leg-shields.

Model H.9.—249 c.c. single-cyl. two-stroke Villiers; petroil lubrication; flywheel magneto ignition; all-chain drive; 3-speed gear, with hand control; fuel, 2¼ gals.; 25x3in. tyres.
Price with electric lighting (solo), £37 10s.

Model H.9 is fitted with a 249 c.c. Villiers flat-top piston engine, which is mounted in a frame with duplex front down tubes.

The dynamo is situated behind the engine and is chain driven. A heavily valanced front mudguard is fitted, and both guards have central ribs. The petrol tank is finished in chromium and green, and the equipment includes Goodyear tyres and a Terry saddle.

A 196 c.c. model is also shown. This has a loop frame, separate dynamo lighting, legshields, and a chromium and green finish to the petrol tank. All models except the H.15 have adjustable footrests.

The 1935 Olympia Show reported in The Motor Cycle, December 5th, 1935.
