The Butterworth Norton

Butterworth's Swing Valve Engine

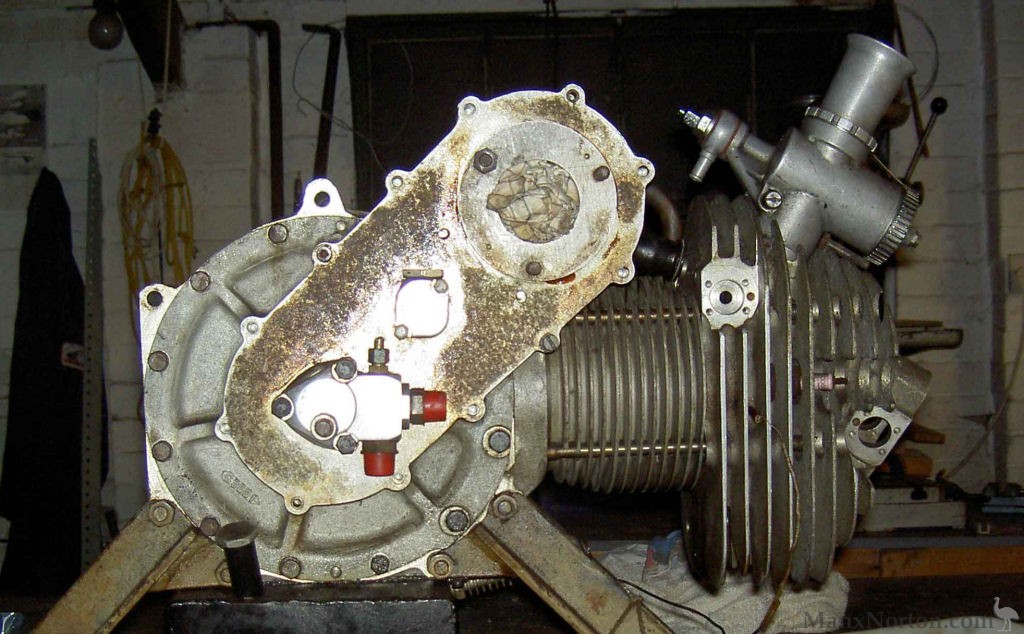

Butterworth Swing Valve Engine

Butterworth Norton, Completed

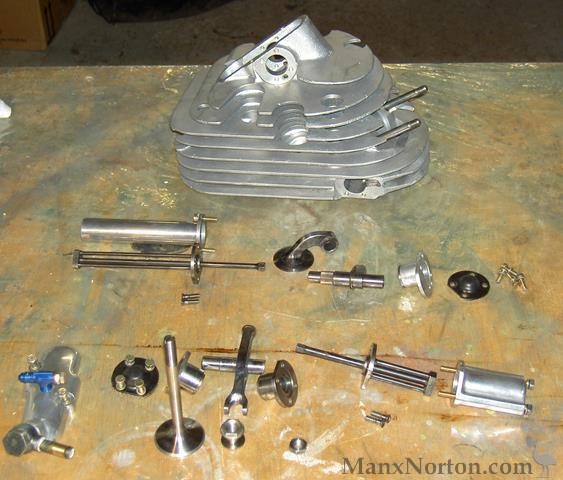

Butterworth Swing Valve Cylinder Head

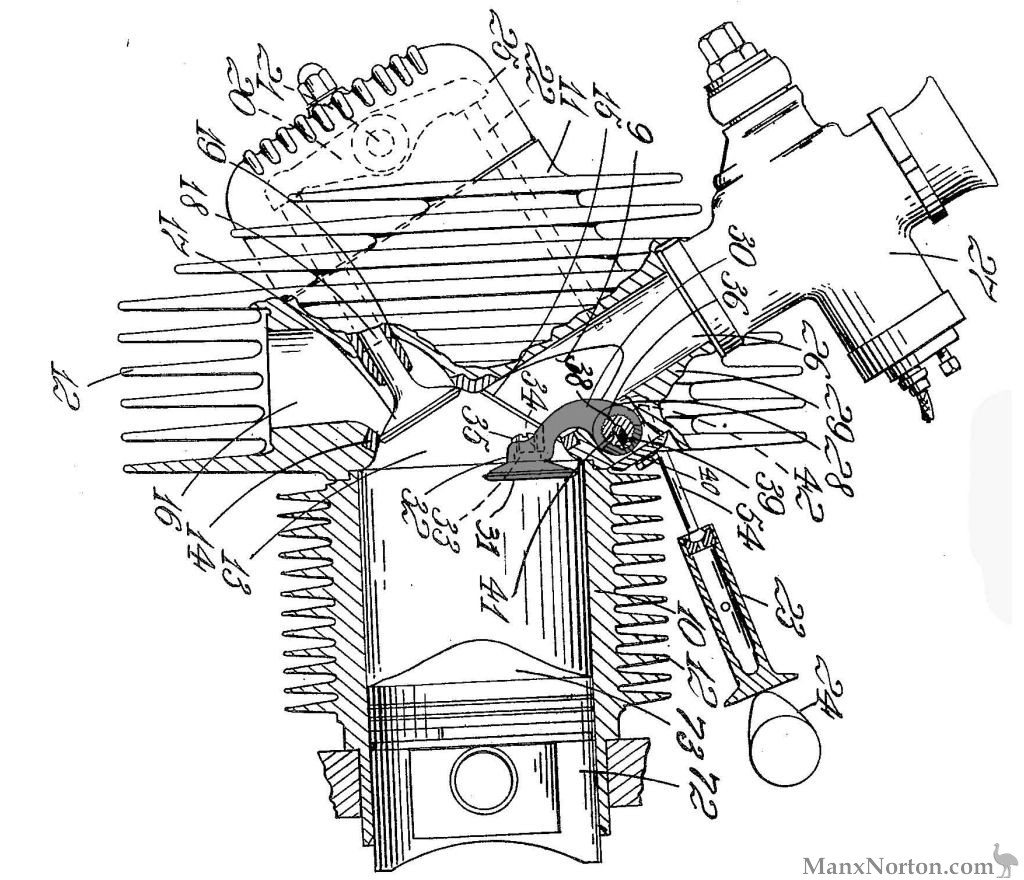

Butterworth Swing Valve Patent

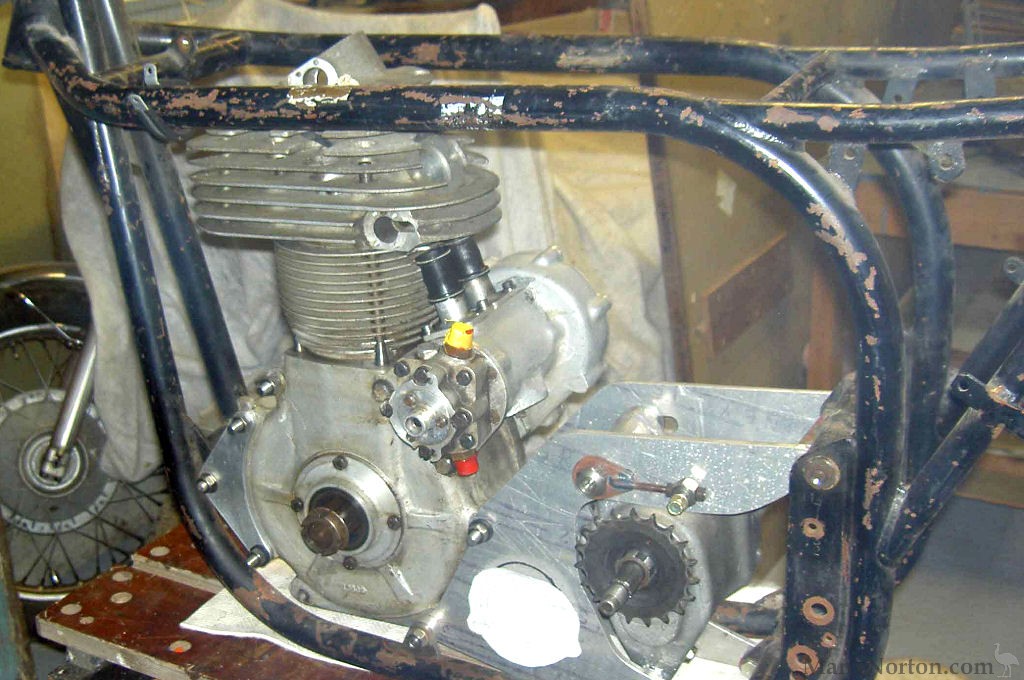

Picture of Butterworth's Swing Valve motor and now being installed in a featherbed frame.

The exhaust valve is conventional and the swing inlet (shaded)

Just swings out of the way! WOW! There are many advantages to this design.

See how many you can work out. Answers next month!

10-Feb-2020
milesm at avnet.co.uk
norton
Updated photo for you
Chassis is from a '56 domi 99 (I bought the frame, swingarm & a manx rear wheel from Norton George, who was a pal of mine) and the engine is a 600cc Butterworth swingvalve - Archie Butterworth was my great uncle. Lots on the 'net about him...
Miles McCallum
United Kingdom
