Automoto Motorcycles

Today in Motorcycle History

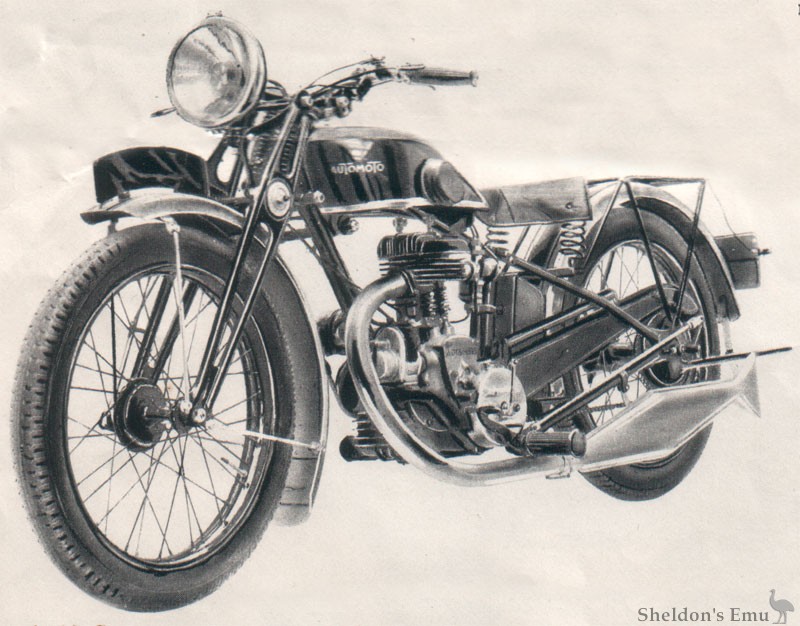

Automoto 175cc SV A19S A19L 1929

A. 19.S

Engine: bore 45mm, stroke 76mm; volume175ccm four-stroke SV monoblock; power 2 CV; 1 exhaust;

Lubrication: engine and transmission automatic pump in the engine; engine oil supply

Ignition: with variable advance magnet

Gearbox: 3 speed engine

Clutch: with Ferrodo discs

Frame: centre stand and front stand; chrome handlebars, twist-grip throttle

Fork: steel, parallelogram with 2 springs

Wheels: 19"; balloon tyres 25 x 3

Tank: 8 litres petrol; oil - wet sump

Tool box: located between the engine and the rear wheel

A. 19.L.

Same description as A. 19.S. with the following differences:

ribbed carter engine

Magneto with adjustable advance

Chrome tank with knee pads

Mudguards partially chrome-plated

Header pipes and muffler chrome-plated

Source: Automoto A9
