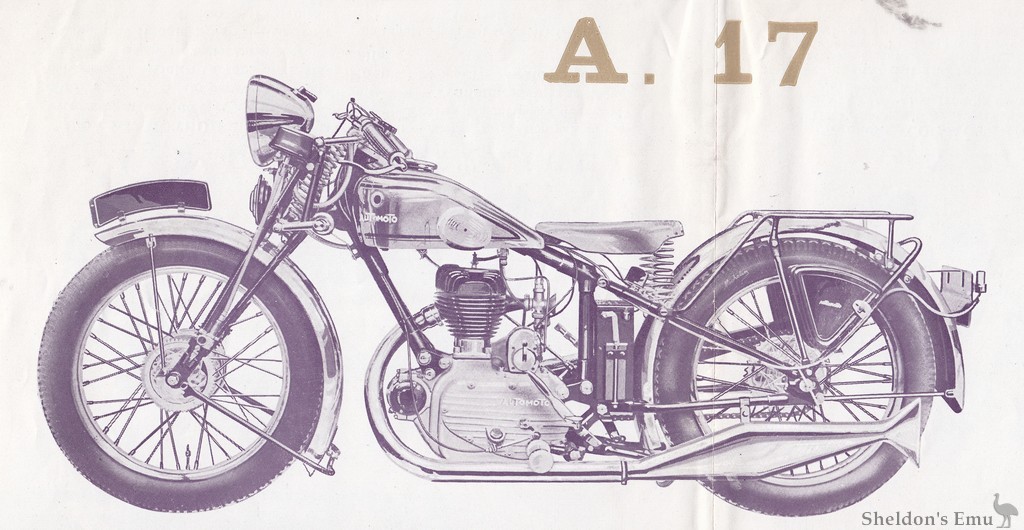

Automoto A. 17. La 4 CV Grand Tourisme 350cc 1929-1933

Engine: 72mm bore, 85mm stroke; volume 350ccm four-stroke SV monoblock; power 4 CV; 1 exhaust;

Erasing: the engine and gearbox automatically with an engine mount; engine oil supply

Ignition: with a variable advance magneto

Carburettor: automatic with two levers: one throttle and the other for air regulation

Transmission: in a 3-speed engine

Coupling: with steel discs in an oil bath

Frame: Stand central + front stand; chrome handlebars, twist-grip throttle

Fork: steel, parallelogram with central spring; steering damper

Wheels: The rear wheel is removable without a brake drum and rosette;

Tyres: 26 x 3.5

Source: Automoto A9
