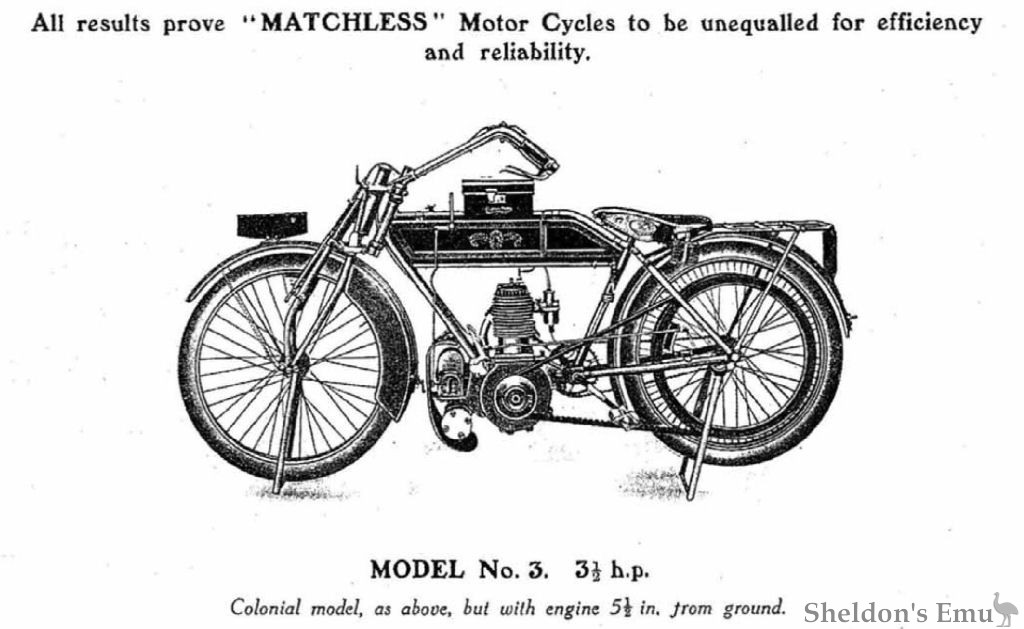

Colonial model as above, but with engine 5½ in. from ground
SPECIFICATION
ENGINE. - Latest specially-made 3½ h.p., 85 x 85, M.O.I.V.
CARBURETTER. - Latest semi-automatic multiple jet.
IGNITION. - Bosch magneto, chain-driven.
FRAME. - Latest low pattern, with flush joints, incorporating our new tubular carrier and girder spring forks.
Height of saddle from ground 30 in.
TYRES. - Standard 26 x 2¼ in, Hutchinson non-skid, guaranteed. - Other tyres according to price.
MUDGUARDS. - 4 in. wide, fixed in a very rigid manner.
SILENCER. - " MATCHLESS," specially designed to suit this engine, with cut-out.
BELT. 7/8in. Shamrock Gloria.
PULLEY. - " MATCHLESS," adjustable.
BRAKES. - Front rim brake, hand-applied, and driving rim brake operated by pedal on separate stud.
SADDLE. - Large and comfortable to suit weight of rider.
CONTROL. - Carburetter, by levers on handle-bar. Ignition, by ratchet lever on tank. Valve lifter.
TANK. - Capacity, seven quarts of petrol and three pints of lubricating oil. Fitted with gauge, drain cock, and combined drip sight feed force oil pump.
GEAR. - Standard gear, 4½ to 1.
FINISH. - Enamelled grey, and fine-lined green and gold.
WEIGHT. - About 160 lbs.
PRICE.- 46 Guineas. This price includes toolbag, full kit of tools, stands, carrier, and number plates.
Free-engine clutch back hub, 6 Guineas extra.
Three-speed gear and free-engine, 10 Guineas extra.
Stands fitted to both wheels.
