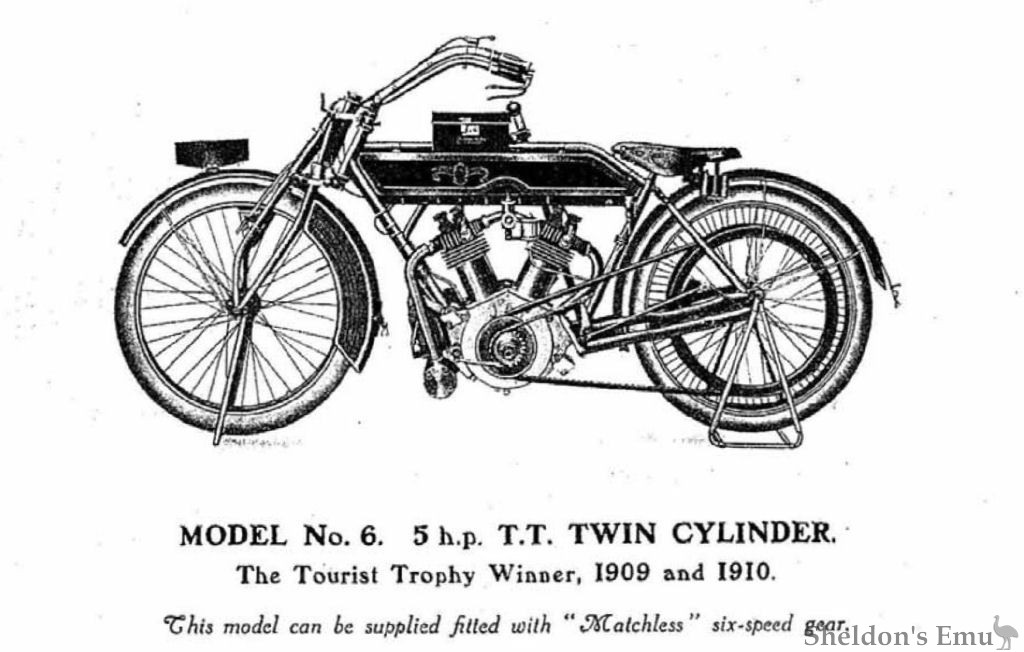

This model can be supplied fitted with "Matchless" six-speed gear.
SPECIFICATION
ENGINE. - Ball bearing, 85 x 85, M.O. overhead valves, 5 h.p
CARBURETTER. - New semi automatic multiple jet.
IGNITION. - Bosch ball bearing magneto.
FRAME. - Latest low pattern, with flush joints mid girder spring forks. Height of saddle from ground, 30 in.
TYRES. - Standard 26 x 2¼. Hutchinson special guaranteed. Other tyres at extra cost.
MUDGUARD. - 3½ in. wide, fixed in a very rigid manner.
SILENCER. - "MATCHLESS," specially designed for this machine.
BELT. - 7/8in Shamrock Gloria.
PULLEY. - "MATCHLESS," adjustable; gears 3¼ to 4¼ to 1.
BRAKES. - Front rim brake, hand applied, and powerful driving rim brake operated by foot pedal in separate stud.
SADDLE. - Large, giving low position.
CONTROL. - Carburetter, by levers on handle-bar. Valve lifter, by lever on left-side bar. Ignition, by lever on tank.
TANK. - Torpedo, channelled to fit top tube, holding seven quarts of petrol and three pints of oil. Fitted with drain cock, and combined drip sight feed force oil pump.
GEAR. - Standard gear is 3½ to 1.
FINISH. - Enamelled grey, and fine-lined gold and green.
WEIGHT. - 185 lbs.
PRICE. - 56 Guineas, including toolbag, full set of tools, stands and number plates.
"MATCHLESS" six-speed gear, 10 Guineas extra.
Stands are fitted to both wheels.
