Engine |
Longitudinal 60° V twin four stroke, with patented AVDC system (Anti-Vibration Double counters |
|
|
Fuel: |
95 RON lead-free |
|
|
Cooling |
Liquid cooling with three-way pressurised circuit. Double radiator. Coolant 2.6 litres |
|
|
Bore and Stroke: |
97 x 67.5 mm |
|
|
Displacement: |
997.62 cc |
|
|
Compression Ratio: |
10.8:1 |
|
|
Valve Train: |
Double overhead cam with mixed gear/chain timing drive, four valves per cylinder. |
|
|
Fuel Injection: |
Integrated electronic engine management system. Indirect multi-point electronic injection. 51 mm diameter throttle bodies. |
|
|
Ignition: |
Digital electronic ignition with TSI (Twin Spark Ignition), two sparkplugs per cylinder. Ignition timing integrated in the injection control system. |
|
|
Starting: |
Electric starter |
|
|
Lubrication |
Dry sump with separate oil reservoir. Double trochoidal pump with oil cooler. |
|
|
Gearbox: |
6 speed. Transmission ratios: 1st 35/14 (2.5) - 2nd 28/16 (1.75) - 3rd 26/19 (1.368) - 4th 24/22 (1.091) - 5th 22/23 (0.957) 6th - 23/27 (0.852) |
|
|
Primary Drive: |
Straight-cut gears. Transmission ratio: 60/31 (1.935) |
|
|
Final Drive: |
Chain. Sprockets: 41/16 |
|
|
Clutch: |
Multiple disk in oil bath with patented PPC power-assisted hydraulic control |
|
|
Frame: |
Sloping parallel Double Twin Beam frame in aluminium-magnesium alloy. Removable aluminium alloy saddle mount frame. |
|
|
Front Suspension: |
Showa 43 mm USD forks. External adjustment system for rebound and compression and spring preload.120 mm wheel travel. |
|
|
Rear Suspension: |
Aluminium alloy swing-arm. APS (Aprilia Progressive System) linkage. Sachs hydraulic monoshock with adjustment for preload and rebound dampening. Rear wheel travel 130 mm. |
|
|

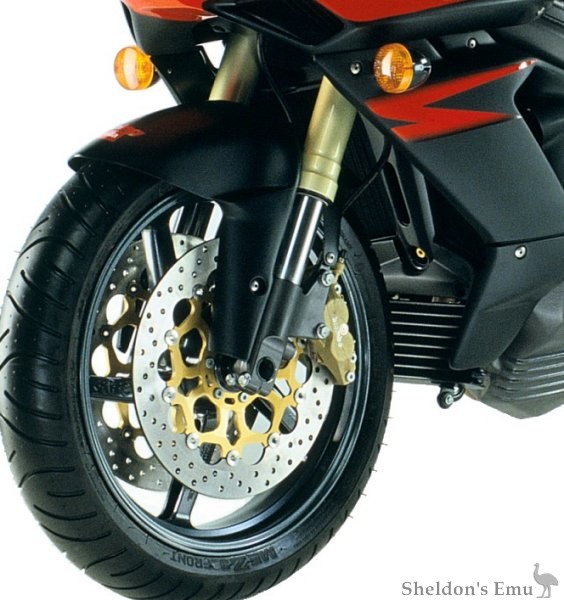

Brakes: |
Front: Brembo dual floating discs, 310mm stainless steel. Calipers have four differential 34 and 30 mm pistons. Sintered brake pads. Freudenberg brake lines. Rear: Stainless steel 220 mm disc. Caliper has two 32 mm pistons. Freudenberg brake lines. |
|
|
Wheels |
Brembo aluminium alloy, 5 spoke. Front: 3.50 x 17" Rear: 6.00 x 17" |
|
|
Tyres: |
Radial tubeless; Front: 120/70 ZR 17 Rear: 180/55 ZR 17 |
|
|
Battery: |
12V 14 Ah/400 W |
|
|
Dimensions |
Maximum length: 2,050 mm |
|
Tank |
Capacity 21 litres, 4 litre reserve |
|
|
Seat height: |
815 mm (suspension fully extended). Handlebar height: 888 mm (at bar ends) |
|
|
Wheelbase: |
1,415 mm |
|
