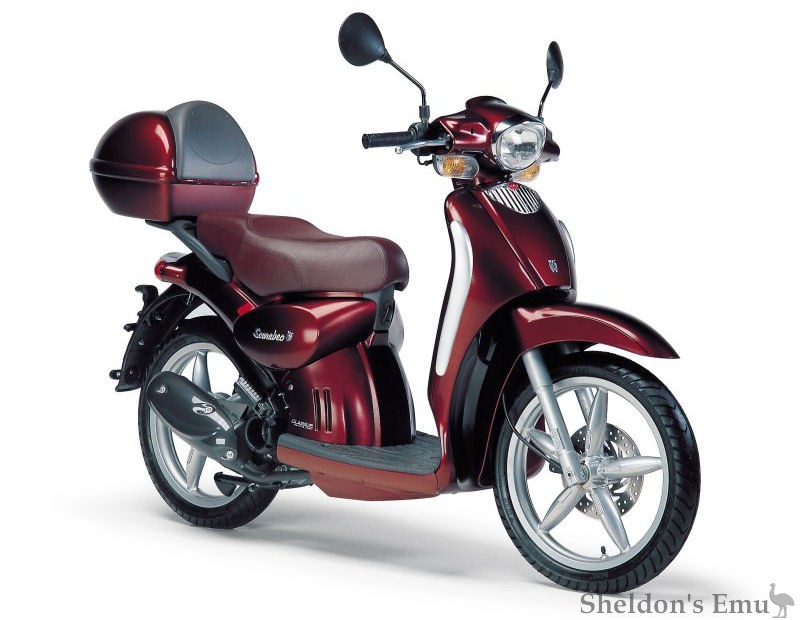

Aprilia Scarabeo Ditech

Specifications - 2004 Model

Configuration:

Single cylinder 2-stroke with electronic air assisted direct injection (DiTech)

Cooling:

Air cooled

Capacity:

49.38 cm3

Bore & Stroke:

41 x 37.4 mm

Compression Ratio:

10.5 : 1

Starter:

Electric

Ignition:

High energy inductive coil

Fuel Injection:

Direct into combustion chamber, air assisted and electronically controlled

Direct Injector:

External opening, average nebulisation 8 micron SMD

Pressure Regulator:

Pressure difference maintained at 2.5 bars

Throttle Body:

Diffuser, 18 mm dia. with built-in TPS (Throttle Position Sensor)

Air Compressor:

Controlled by crankshaft, lubricated with air and oil present in the combustion chamber.

Oil Tank Capacity:

1.6 litres (including 0.5 litre reserve)

Lubrication Injection:

With electronic oil pump

Gear Change:

Ventilated automatic variator

Primary Transmission:

V Belt

Clutch:

Automatic centrifugal

Frame:

Split double cradle in high tensile steel

Front Suspension:

Hydraulic Telescopic fork - Travel 80mm

Rear Suspension:

Single hydraulic shock absorber - Travel 78 mm

Brakes Front:

220 mm dia. stainless steel disk, double opposed pistons, 32 mm dia.

Rear:

190 mm dia. stainless steel disk with double opposed pistons, 30 mm dia.

Wheels :

5-spoke light alloy. Front" 1.6" x 16" Rear: 1.85" x 16"

Tyres:

Front: 2.50 x 16 Rear: 2.75 x 16

Dimensions:

Length: 1905 mm

Height:

1270 mm

Width:

705 mm

Wheelbase:

1250 mm

Dry Weight:

86 kg

Fuel Tank Capacity:

8 Litres (1 Litre Reserve)


Source: John Sample Group
