Page 20
As may be observed from the illustrations, the general specification of all the heavyweight models is practically the same.

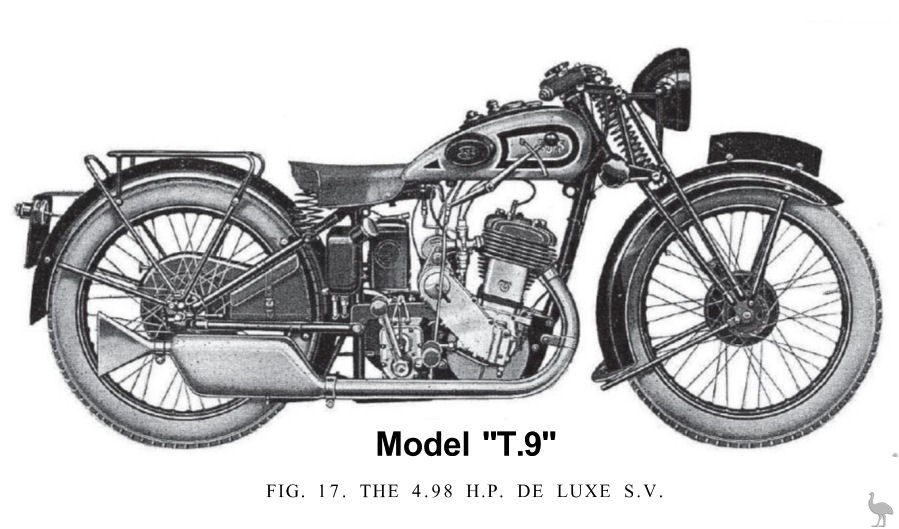

In this instance model T9 is the S.V. counterpart of the 4-98 h.p. de luxe O.H.V, model and has the same bore and stroke. Actually, apart from the engine and carburettor, the only important difference is that a three-speed gear-box giving ratios of 4-81, 7 06, and 12-85 to 1 is fitted as standard. S/C ratios - 5-53, 8-12, and 14-7.

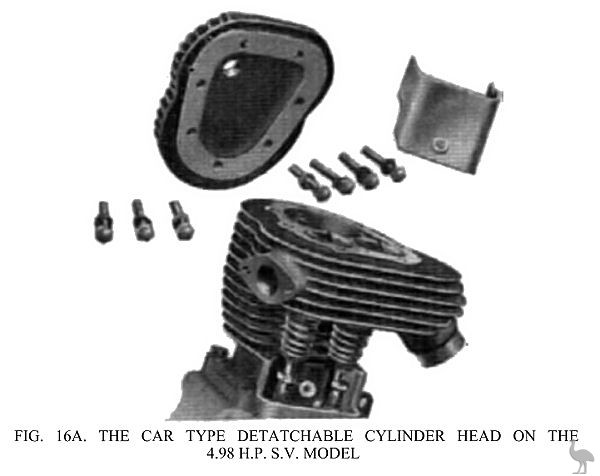

Engine. Below the cylinder the engine is the same as the O.H.V., model except, of course, that a different valve timing is used. The piston is of aluminium alloy, and has the usual four rings. The cylinder in which it reciprocates has six broad horizontally-arranged fins, and contains the valves as shown in Fig. 16A, a special car type aluminium cylinder head being bolted to the top of the barrel with seven bolts. A copper and asbestos gasket is used between the two. The compression ratio is 4.9 to 1. As is self-evident, removal of the cylinder head does not mean unfastening the carburettor or interfering with the valves - a meritorious feature from the point of view of the rider who likes to devote a minimum of time to top overhauls. The valves, springs, and tappets are all enclosed, as shown by a quickly-detachable cover plate, no valve caps are wanted. Correct tappet clearances are -006 and 008 in. with a hot engine for inlet and exhaust respectively. Castrol "X.L." or "C" is recommended, and the magneto timing is 3/8 in. before T.D.C. fully advanced.
CARBURETTOR. The carburettor, which is bolted by its flange direct to the cylinder barrel, is a bottom feed, semi-automatic 6/004 Amal with 140 jet, 6/4 valve and needle position 3.
