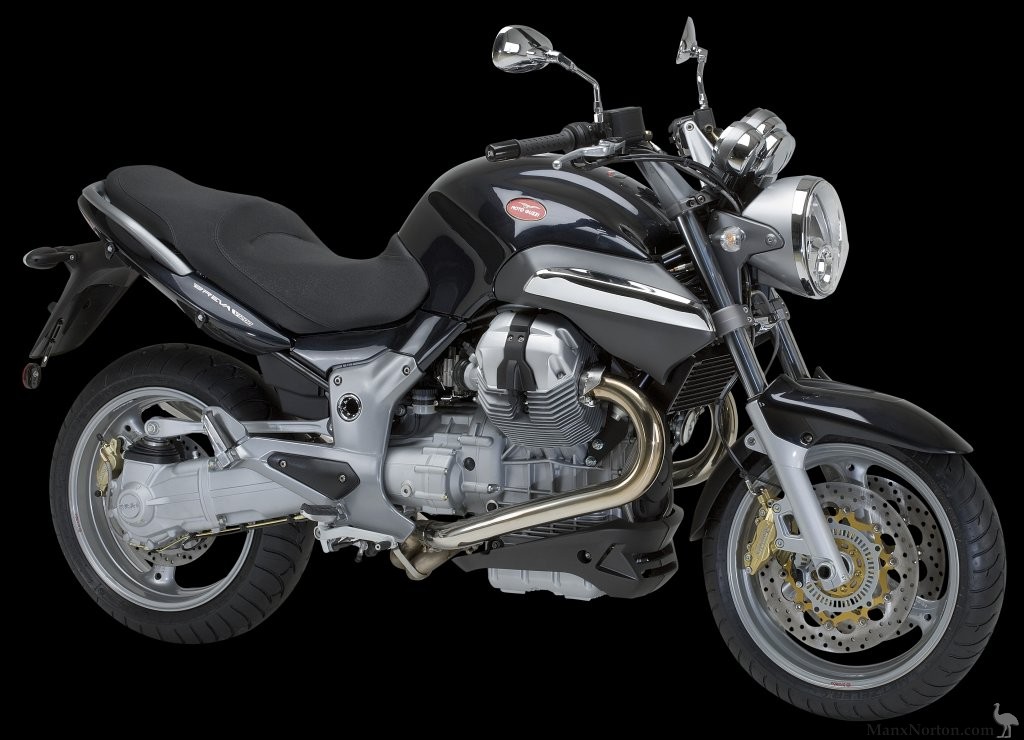

Moto Guzzi Breva 1200

Specifications - 2010 Model

Engine

Four-stroke V 90 twin

Cooling

Air cooled

Capacity

1,151 cc

Bore and stroke

95 x 81.2 mm

Compression ratio

9.8 : 1

Valve Train

2 valves per cylinder actuated by light alloy pushrods with rocker arms and mechanical tappets

Valve Timing

Intake valve opens 24 ° before upper TDC.
Intake valve closing 52 ° after lower TDC.
Exhaust valve opens 54 ° before lower TDC.
Exhaust valve closing 22 ° after upper TDC.

Maximum power output

Over 66 kW (95 CV) at 7,500 rpm

Max Torque

Over 100 Nm at 5,800 rpm

Fuel supply/ignition

Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x 45 mm throttle bodies with Weber IWP 162 injectors, Lambda probe and twin spark plugs.

Starter

Electric

Spark plugs

Inner NGK PMR8B (Long Life) Outer NGK BPR6ES

Exhaust system

Stainless steel two-into-one 3 way catalysed with Lambda probe and height adjustable silencer.

Homologation

Euro 3

TRANSMISSION

Gearbox

6 speed - constantly engaged cogs with integrated flexible couplings

Gear ratios


1st 17/38 = 1 : 2.235
2nd 20/34 = 1 : 1.7
3rd 23/31 = 1 : 1.348
4th 26/29 = 1 : 1.115
5th 31/30 = 1 : 0.968
6th 29/25 = 1 : 0.862

Lubrication

Forced lubrication with lobe pump and pressure regulator

Primary drive

Helicoidal gears, ratio 24/35 = 1 : 1.458

Final drive

Shaft drive, ratio 12/44 = 1 : 3.667

Clutch

Dry mechanically operated twin plate

ELECTRICS

Voltage

12 V

Battery

12 V - 18 Ah

Alternator

12 V - 350 W

FRAME

Frame

Steel tubing

Wheelbase

1,495 mm

Rake

120 mm

Steering angle

25.50°

Front suspension

Marzocchi 45 mm adjustable front forks

Front wheel travel

120 mm

Rear suspension

Single swingarm with progressive action - single rebound adjustable shock absorber with easy to operate pre-load setting knob

Rear wheel travel

140 mm

Front brakes

Twin floating 320 mm stainless steel discs, floating Brembo calipers with 4 opposed pistons.

Rear brakes

Single 282 mm fixed stainless steel disc, floating Brembo caliper with 2 parallel pistons.

ABS

Two channel anti-lock system

WHEELS

Wheels

Three-spoked aluminium alloy

Front wheel

3.50" x 17"

Rear wheel

5.50" x 17"

Front tyre

120/70 ZR 17 M/C (59W) TL Roadtec Z6

Rear tyre

180/55 ZR 17 M/C (73W) TL Roadtec Z6

DIMENSIONS

Length

2,195 mm

Width

870 mm

Height

1,125 mm

Saddle height

800 mm

Minimum ground clearance

185 mm

Dry weight

236 kg

Fuel tank capacity

23 litres

Reserve

4 litres


Source: John Sample Group
