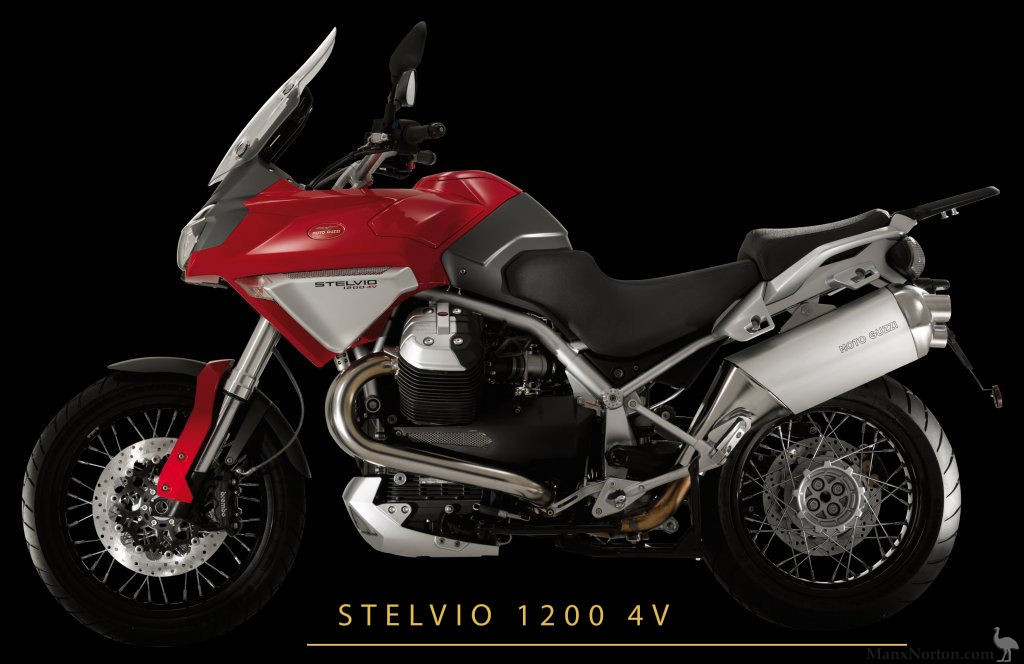

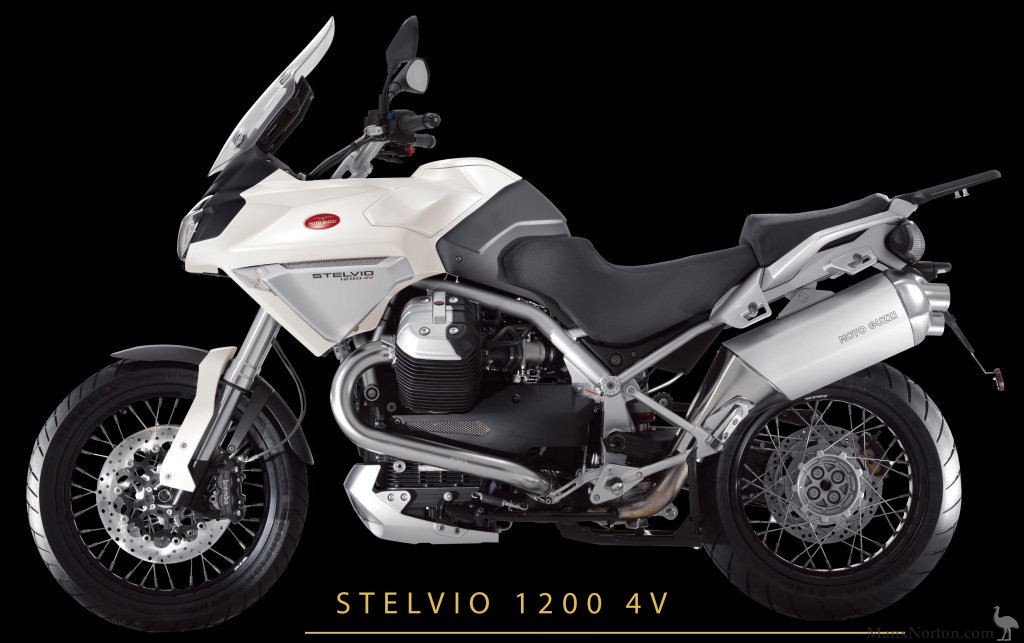

Moto Guzzi Stelvio 1200 4V

Specifications - 2010 Model

Engine 90° V-twin engine, four-stroke with four valves per cylinder

Displacement 1,151 cc

Maximum power 77 kW (105CV) at 7,500 rpm

Maximum torque Above 108 Nm at 6,400 rpm

Exhaust system Stainless steel, 2-in-1 type, three-way catalytic converter with lambda probe (Euro 3)

Gearbox 6 speed

Final drive CAR-C shaftdrive

Front suspension Fork with 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping) with radially-mounted brake calipers

Rear suspension Single arm with rising-rate leverage, single shock absorber with hydraulic rebound damping and spring preload adjustment

Front brake Double stainless steel floating disc, 320 mm, radial calipers with 4 opposed pistons

Rear brake Fixed stainless steel disc, 282 mm, floating caliper with 2 parallel pistons

Tyres 110/80 R19" (front) - 180/55 R17" (rear)

Length 2,250 mm

Width 1,025 mm

Height 1,475 mm (windshield high position)

Dry weight 214 kg

Fuel tank capacity 18 litres (reserve 4.5 litres)

Colour range Red - Black - White

Source: John Sample Group
