Moto Guzzi Motorcycles

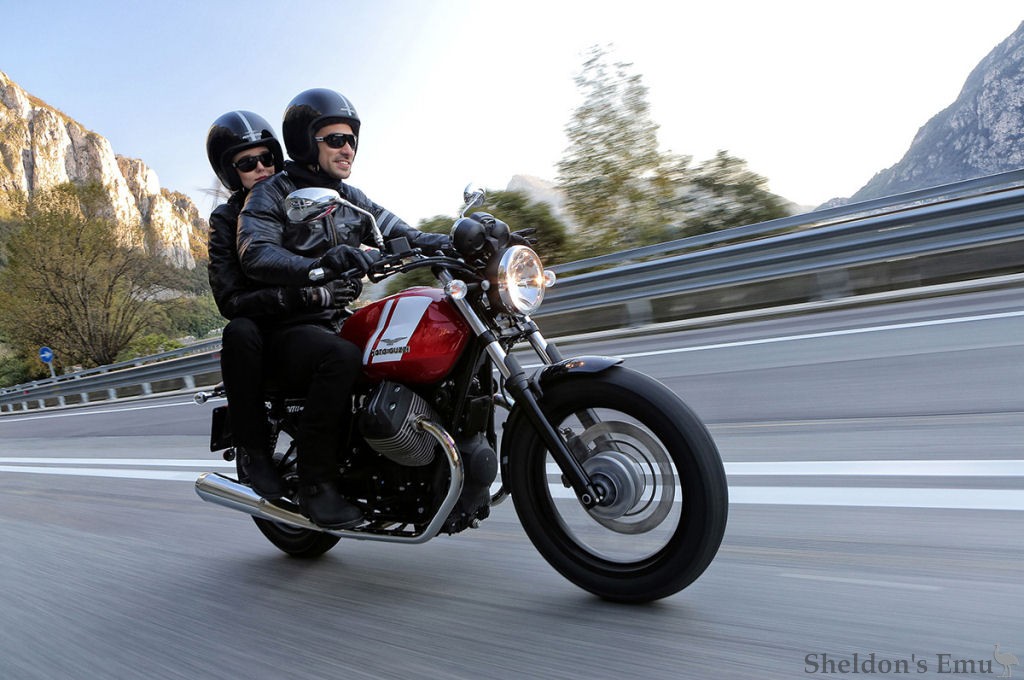

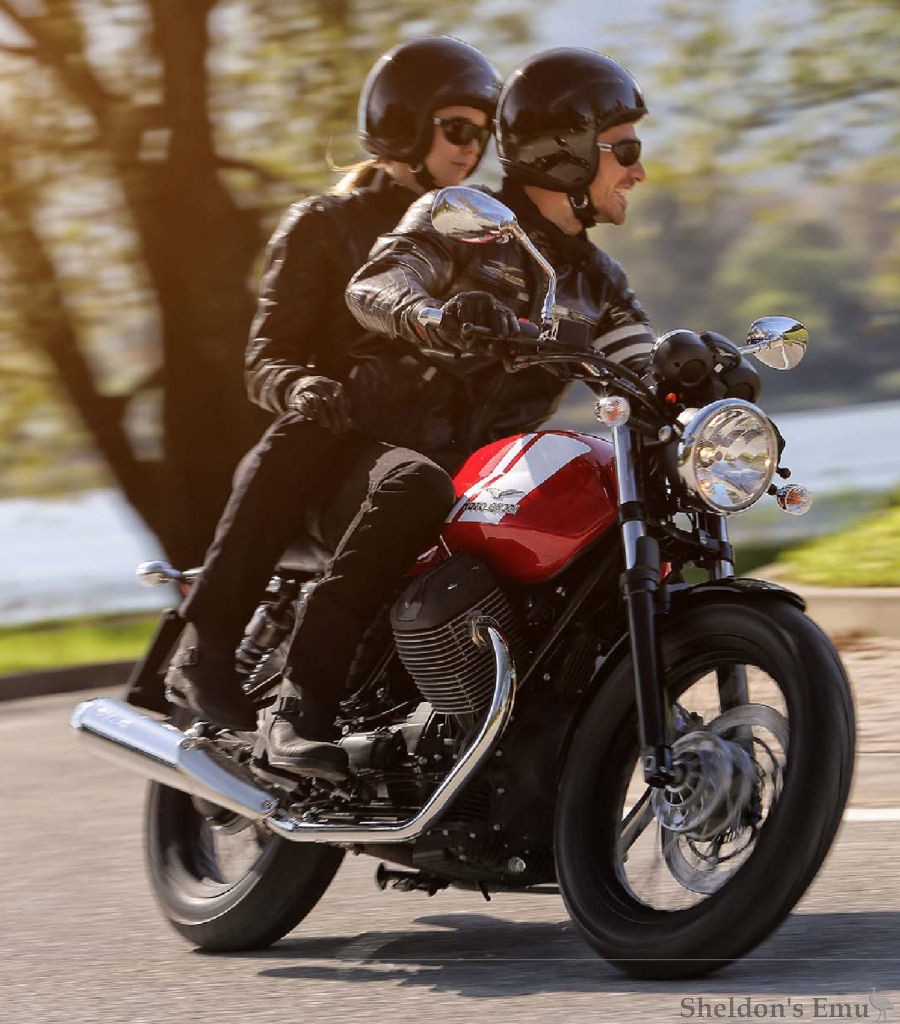

Moto Guzzi V7 II Special

The Moto Guzzi V7 II Special encapsulates the original vision with which the first model was created in the 1960's, a sophisticated touring motorcycle. Today's Moto Guzzi V7 II Special features a 750cc, 90-degree V-Twin motor, ABS, and traction control along with spoked wheels and the historic two tone colour scheme.

Specifications, 2015 Model

Engine
Type 90° V-twin engine, 4 stroke. OHV, 2 valves per cylinder
Cooling Air cooled
Engine capacity 744 cc
Bore & stroke 80 x 74 mm
Compression ratio 10.5:1
Timing system diagram Intake valve opens 18° BTDC
Intake valve closes 50° ABDC
Exhaust valve opens 53° BBDC
Exhaust Valve closes 15° ATDC
Max. power 37 kW (50HP) at 6200 rpm
Max. torque 60 Nm at 2800 rpm
Fuel supply Magneti Marelli MIU G3 ECU with integrated 38 mm single throttle body, integrated traction control
Exhaust system Two into two with balance pipe, three way catalytic converter, twin lambda probe
Emission standard Euro 3
Transmission
Gearbox 6 speed
Gear ratios 1st 14/37 = 2.642:1
2nd 18/32 = 1.777:1
3rd 21/28 = 1.333:1
4th 24/26 = 1.083:1
5th 25/24 = 0.96:1
6th 27/24 = 0.888:1
Primary drive Helical gear set, ratio: 18/23 = 1.277:1
Final drive Hypoid gear set, ratio: 8/33 = 4.82:1
Chassis
Frame Double cradle steel tubular frame
Wheelbase 1449 mm
Trail 138 mm
Rake 27°50’
Front suspension 40 mm fork with hydraulic damping
Front wheel travel 130 mm
Rear suspension Cast alloy swingarm, twin shocks with adjustable spring preload
Rear wheel travel 100 mm
Front brake Single Ø 320 mm stainless steel disc, Brembo radial mounted 4 spot calliper
Rear brake 260 mm stainless steel disc, Brembo 2 spot floating calliper
ABS continental two channel ABS
Wheels Spoked with alloy rim, inner tube
Front tyre 100/90 – 18
Rear tyre 130/80 – 17
Electrical System
System voltage 12V
Battery 12V – 12AH
Alternator 12V – 350W
Dimensions
Length 2185 mm
Width 800 mm
Height 1115 mm
Saddle height 790 mm
Min. ground clearance 174 mm
Kerb weight 198 kg
Dry weight 177 kg
Fuel tank capacity 21 Litres
Reserve 4 Litres


Source: John Sample Group If you have a query or information about Moto Guzzi motorcycles please contact us
