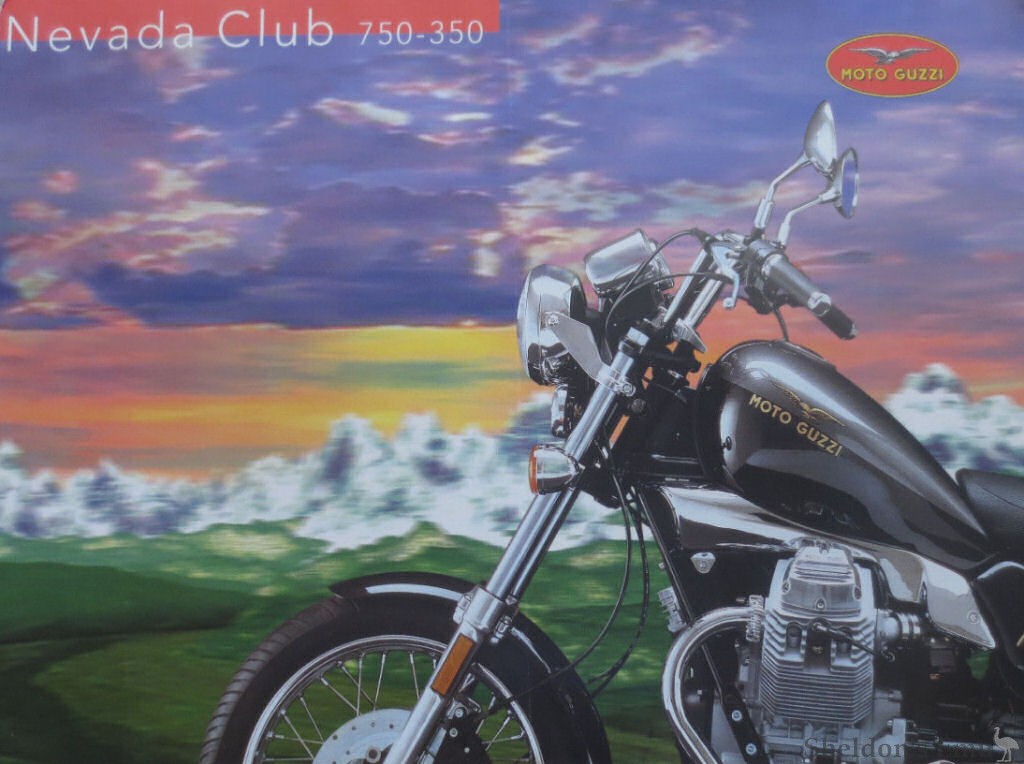

The Nevada Club is the most recent evolution of a Moto Guzzi classic. Compared to the previous model, some important enhancements have been introduced: more comfortable wider handlebars, new seat and pillion, adjustable rear shock absorbers, new electric fuel tap and warning light, new aeronautical-type fuel cap.
With stunning looks, the indefatigable Nevada Club will take you just as far as you like. And it is all so effortless, sitting up on the saddle of a classic motorcycle sparkling with real personality. Nevada Club. Ongoing evolution.
| Specifications | |
| Engine type: | 90 degree V-twin, 4-stroke, air-cooled |
| Capacity: 744 cc | |
| bore and stroke: 80 x 74 mm | |
| compression ratio: 9.6 : 1 | |
| maximum power: 35 kW/48 CV at 6200 rpm [DIN] | |
| maximum torque: 59.44 Nm/6.06 kgm at 3200 rpm [DIN] | |
| fuel system: 2 Dell'Orto PHBH 30 carburettors with cartridge filter | |
| ignition: Marelli electronic digital Digiplex | |
| clutch: single disc, dry | |
| valves and operation: | OHV 2 valves per cylinder, single camshaft, pushrod |
| starting system: | electric |
| lubrication: | by lobe pressure pump |
| transmission: | primary by gears; secondary by cardan shaft with ring and pinion |
| gearbox: | 5-speed |
| frame: | detachable tubular steel duplex cradle |
| suspension: | front hydropneumatic telescopic fork with pressure equalizer; rear swinging fork in light alloy cast with two dampers and springs adjustable for preload and rebound |
| electrical system: | 12V, l4V 25A alternator, 24Ah battery |
| braking system: | 2 front discs Ø 270 mm; 1 rear disc Ø 260 mm |
| tyres: | front 100/90 V18 or H18; rear 130/90 V16 or H16 |
| wheels: | spokes, steel rims |
| instrument panel: | speedometer, rev counter and warning lights |
| fuel tank capacity: | 16 litres |
| maximum speed: | without accessories 165 kph [103 mph] |
| Fuel consumption: | 5.4 litres/100 km [CUNA] |
| Dry weight: | 182 kg |
| Colour Range: | |
| pearl white, pearl red and pearl blue | |
| Sport and Comfort windshields; leather bags; hard panniers and top box; luggage rack with backrest. | |
Source: AMI
