Moto Guzzi Norge T

Specifications - 2006 Model

Engine: 90° V-twin, 4-stroke
Cooling System: Air cooled
Displacement: 1151 c.c.
Bore & Stroke: 95 x 81.2 mm
Compression Ratio: 9.8 : 1
Valves and operation: OHV, 2 valves per cylinder, light alloy push-rods
Maximum Power: over 66 kW (95 HP) at 7,500 rpm
Maximum Torque: over 100 Nm at 5,800 rpm
Fuel system: Magneti Marelli IAW5A, a-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
Ignition: Electronic
Starting system: Electric
Lubrication: Mechanical oil pump
Gearbox: 6 speed
Primary transmission: helical teeth, ratio 24/35 = 1 : 1.458
Secondary transmission: Compact Reactive Shaft Drive - double universal joint with floating bevel gear, ratio 12/44 = 1 : 3.666
Clutch: Dry clutch
Fuel Capacity: 23.0 litres - 4.0 Litre reserve
Frame: Tubular cradle, high tensile steel
Seat height: 800 mm
Dry Weight: 246 kg
Front Suspension: Telescopic hydraulic fork with Ø 45 mm, preload adjustable, Front wheel travel: 120 mm
Rear Suspension: Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic), Rear wheel travel: 140 mm

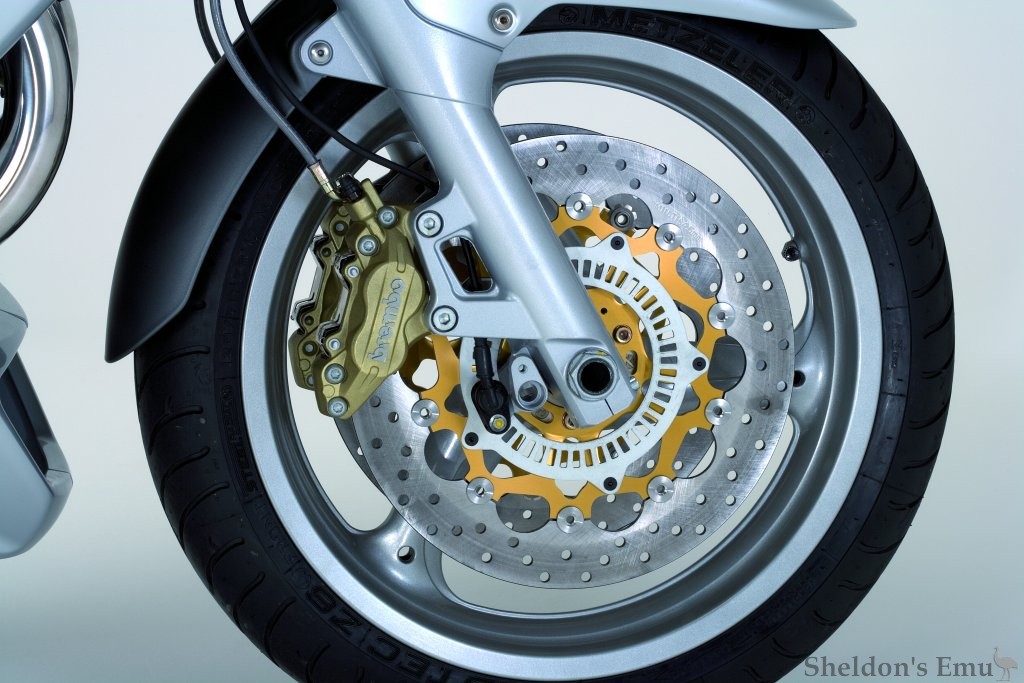

Brakes, Front: Dual stainless steel floating discs, Ø 320 mm, 4 piston calipers - ABS
Brakes, Rear: Single steel disc, Ø 282 mm, 2 piston caliper - abs
Wheels & Tyres: Front: 3.50” x 17” - 120/70 ZR17” Rear: 5.50” x 17” - 180/55 ZR17”


Source: John Sample Group
